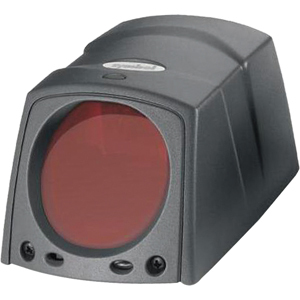

Symbol MS-3207-I000R Fixed Barcode Scanner

Part Number: MS-3207-I000R
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D2D
Barcode Symbology Supported
PDF 417Micro PDF417UPC/EANCode 39Interleaved 2 of 5Code 128CodabarMSI/PLESSEYRSSComposite Codes
Light Source
Laser

Product Description:

  MiniScan (CL2, Omni, USB and Housed Scan Engine)

Motorola MiniScan MS954 Fixed Barcode Scanner Model Overview

Zebra's MiniScan MS954 Series Fixed Mount Scanner is compact, durable and high performing. The MS954 is capable of scanning all types of 1D barcodes, including poorly printed and low contrast symbols. The MS954 offers a configurable scan angle of 47 degrees and 35 degrees for OEM devices requiring a flexible, expanded working range. As one of the smallest, lightest and brightest fixed-mount scanners available today, the MS954 is ideal for accurate automated data collection in OEM device designs with space constraints. It can also be used as a fixed-mount scanner. With its durable housing and built-in RS-232 interface, the mS954 enables your project teams to quickly and confidently integrate high performance 1D barcode data capture into many applications.
Symbol MS-3207-I000R Fixed Barcode Scanner Overview

MiniScan MS3207 Barcode Scanner is a member of the MiniScan family of fixed-mount scanners specifically designed for kiosks as well as other standalone and OEM applications. The MS 3207 high performance scan module delivers speedy plug-and-play installation in your OEM device even if you don't have the in-house technical resources for scanner integration. The omnidirectional scan pattern minimizes the need for precise positioning of 1D symbols and helps you create intuitive selfscanning applications.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • PDF 417
  • Micro PDF417
  • UPC/EAN
  • Code 39
  • Interleaved 2 of 5
  • Code 128
  • Codabar
  • MSI/PLESSEY
  • RSS
  • Composite Codes
Light Source:
Laser
Scan Rate:
640 scan/s
Maximum Scan Resolution:
20 mil
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Form Factor:
Desktop
Height:
2"
Width:
2.4"
Depth:
3.6"
Weight (Approximate):
4.97 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • USB
  • Certifications & Standards:
    • RoHS Compliant

    Laser Classification:

    • CDRH Class II
    • IEC Class 2

    Electrical Safety:

    • Certified to UL1950
    • CA C22-2 NO950 ENG60950/ IEC950

    EMI/RFI:

    • FCC Part 15 Class B
    • ICES-003 Class B European Union EMC Directive
    • Australian SMA
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    GTIN: 5711045424762
    EAN: 5711045424762
    UNSPSC: 43211701
