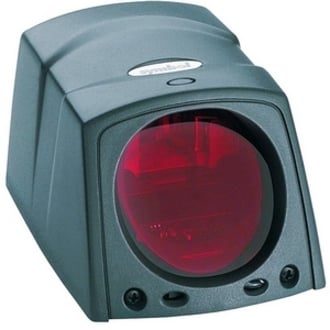

Symbol MS-3207-I000 Fixed Barcode Scanner

Symbol MS-3207-I000R Fixed Barcode Scanner A newer version of this item is available.
It is replaced by the Symbol MS-3207-I000R Fixed Barcode Scanner.
Symbol MiniScan MS3207 - MiniScan (Housed Scan Engine, CL 2 Omnidirectional, USB and Synapse)
  • Perfect for space-obliged situations
  • Perfect for applications that require direct association with a workstation or a notebook
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Scan barcodes with a staggering speed of 640 scan/s
Read More

Need a different version? See all Symbol MiniScan MS3207 Fixed Barcode Scanners

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Symbol MS-3207-I000 Fixed Barcode Scanner
Symbol MS-3207-I000 Fixed Barcode Scanner Symbol MS-3207-I000 Fixed Barcode Scanner Symbol MS-3207-I000 Fixed Barcode Scanner
Symbol MS-3207-I000 Fixed Barcode Scanner
Symbol MS-3207-I000 Fixed Barcode Scanner
Symbol MS-3207-I000 Fixed Barcode Scanner
Full specifications (PDF)
Symbol MiniScan MS3207 Fixed Barcode Scanner Model Overview
The MiniScan MS3207 is a high-performance, fixed mount scanner offering a unique high-speed omni-directional scan pattern to read bar codes quickly and accurately, minimizing the need for precise positioning of linear one-dimensional (1D) bar codes. The MiniScan MS3207 provides an easy, cost-effective way to enhance existing OEM devices with 1D and two-dimensional (2D) scanning. The small form factor, combined with high-speed omni-directional scanning, provides the perfect solution for any application requiring fast, accurate scanning, such as kiosks, ATMs, assembly lines and point-of-sale devices.
Symbol MS-3207-I000 Fixed Barcode Scanner Overview

The MS 3207 from Symbol Technologies is a member of the MiniScan family of fixed-mount scanners specifically designed for kiosks as well as other standalone and OEM applications. The MS 3207 high performance scan module delivers speedy plug-and-play installation in your OEM device even if you don't have the in-house technical resources for scanner integration. The omnidirectional scan pattern minimizes the need for precise positioning of 1D symbols and helps you create intuitive selfscanning applications.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • PDF 417
  • Micro PDF417
  • UPC/EAN
  • Code 39
  • Interleaved 2 of 5
  • Code 128
  • Codabar
  • MSI/PLESSEY
  • RSS Variants
Light Source:
Laser
Scan Rate:
640 scan/s
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Height:
1.9"
Width:
2.2"
Depth:
3.4"
Weight (Approximate):
4.40 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • USB

    • Certifications & Standards:

    Laser Classification:

    • CDRH Class II
    • IEC Class 2

    Electrical Safety:

    • Certified to UL1950
    • CA C22-2 NO950 ENG60950/ IEC950

    EMI/RFI:

    • FCC Part 15 Class B
    • ICES-003 Class B European Union EMC Directive
    • Australian SMA
    Warranty
    Limited Warranty:
    1 Year
    Item Numbers
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Symbol MS-3207-I000 Fixed Barcode Scanner is also known as SYM-MS3207I000 or MS-3207-I000.
