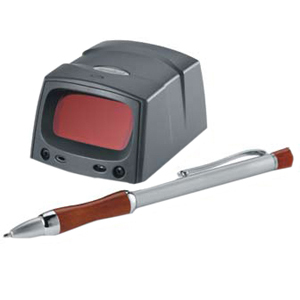

Symbol MS-3204-I000R Fixed Barcode Scanner

Motorola DS457-SR20009 Fixed Barcode Scanner A newer version of this item is available.
It is replaced by the Motorola DS457-SR20009 Fixed Barcode Scanner.
Symbol MiniScan MS3204 - Fixed Mount Scanner, CL 2, Omni and RS-232
  • Perfect for space-obliged situations
  • Perfect for applications that require direct association with a workstation or a notebook
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • Powerful laser scan source provides 640 scan/s decode rate
  • Scan barcodes with a staggering speed of 640 scan/s
Read More
Discontinued See Replacement
Add to Quote
Symbol MiniScan MS3204 Fixed Barcode Scanner Model Overview
The MiniScan MS3204 is a high-performance, fixed mount scanner offering a unique high-speed omni-directional scan pattern to read bar codes quickly and accurately, minimizing the need for precise positioning of linear one-dimensional (1D) bar codes. The MiniScan MS3204 provides an easy, cost-effective way to enhance existing OEM devices with 1D and two-dimensional (2D) scanning. The small form factor, combined with high-speed omni-directional scanning, provides the perfect solution for any application requiring fast, accurate scanning, such as kiosks, ATMs, assembly lines and point-of-sale devices.
Symbol MS-3204-I000R Fixed Barcode Scanner Overview

The MiniScan MS 3204 Bar Code Reader is a member of the MiniScan family of fixed-mount scanners specifically designed for kiosks as well as other standalone and OEM applications. The MS 3204 high performance scan module delivers speedy plug-and-play installation in your OEM device even if you don't have the in-house technical resources for scanner integration. The omnidirectional scan pattern minimizes the need for precise positioning of 1D symbols and helps you create intuitive selfscanning applications.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • PDF 417
  • Micro PDF417
  • UPC/EAN
  • Code 39
  • Interleaved 2 of 5
  • Code 128
  • Codabar
  • MSI/PLESSEY
  • RSS
  • Composite Codes
Light Source:
Laser
Scan Rate:
640 scan/s
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
2"
Width:
2.4"
Depth:
3.6"
Weight (Approximate):
4.97 oz
Miscellaneous
Additional Information:

USB Cable separate

Certifications & Standards:
  • RoHS Compliant

Laser Classification:

  • CDRH Class II
  • IEC Class 2

Electrical Safety:

  • Certified to UL1950
  • CA C22-2 NO950 ENG60950/ IEC950

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B European Union EMC Directive
  • Australian SMA
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0853585464442, 3609740040047
UPC: 853585464442
EAN: 0853585464442, 3609740040047
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol MS-3204-I000R Fixed Barcode Scanner is also known as SYM-MS3204I000R or MS-3204-I000R.
