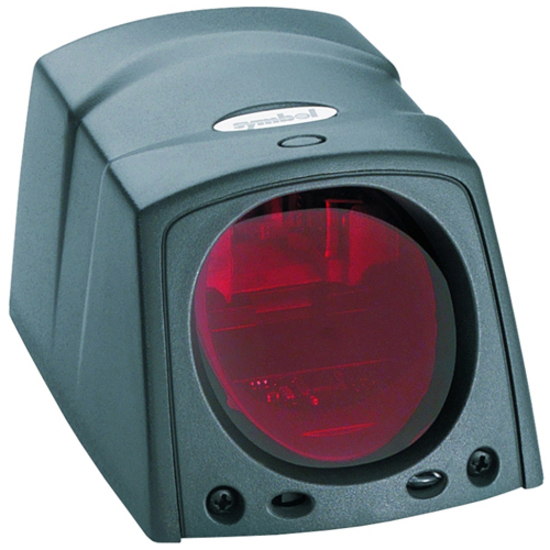

Motorola MS-3204-I000 Fixed Barcode Scanner

Symbol MS3204 - MiniScan (Housed Scan Engine, CL 2 Omnidirectional and RS-232)
  • Delivers customer satisfaction with lesser chances of errors, hands-free operation, and counter space usage
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Scan barcodes with a staggering speed of 640 scan/s
Read More

Full specifications (PDF)

Compact, rugged, durable housing
The MiniScan MS3204 is a high-performance, fixed mount scanner offering a unique high-speed omnidirectional scan pattern to read barcodes quickly and accurately, minimizing the need for precise positioning of linear one-dimensional (1D) barcodes. The MiniScan MS3204 provides an easy, cost-effective way to enhance existing OEM devices with 1D and two-dimensional (2D) scanning. The small form factor, combined with high-speed omnidirectional scanning, provides the perfect solution for any application requiring fast, accurate scanning, such as kiosks, ATMs, assembly lines and point-of-sale devices.
Symbol MS-3204-I000 Overview

The MS 3204 from Symbol Technologies is a member of the MiniScan family of fixed-mount scanners specifically designed for kiosks as well as other standalone and OEM applications. The MS 3204 high performance scan module delivers speedy plug-and-play installation in your OEM device even if you don't have the in-house technical resources for scanner integration. The omnidirectional scan pattern minimizes the need for precise positioning of 1D symbols and helps you create intuitive selfscanning applications.

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • PDF 417
  • Micro PDF417
  • UPC/EAN
  • Code 39
  • Interleaved 2 of 5
  • Code 128
  • Codabar
  • MSI/PLESSEY
Light Source:
Laser
Scan Rate:
640 scan/s
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
1.9"
Width:
2.2"
Depth:
3.4"
Weight (Approximate):
4.40 oz
Miscellaneous
Additional Information:

USB Cable separate

Certifications & Standards:

Laser Classification:

  • CDRH Class II
  • IEC Class 2

Electrical Safety:

  • Certified to UL1950
  • CA C22-2 NO950 ENG60950/ IEC950

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B European Union EMC Directive
  • Australian SMA
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211701

Loading...

The Symbol MS-3204-I000 is also known as Symbol Technologies SYM-MINISCANI000 or MS3204I000 .
