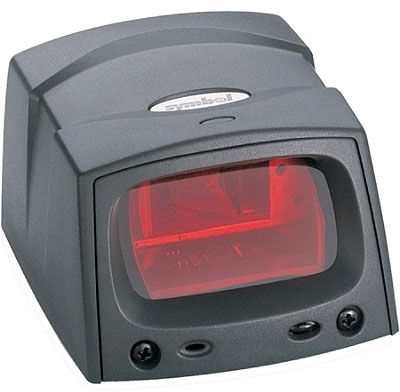

Symbol MS-2207VHD-I000R Fixed Barcode Scanner

Motorola DS457-HD20009 Fixed Barcode Scanner A newer version of this item is available.
It is replaced by the Motorola DS457-HD20009 Fixed Barcode Scanner.
Symbol Mini-Scan MS2207 - Housed Scan Engine, Fixed Mount Scanner: CL 2, RAS, PDF/1D. Cable not included, see accessories.
  • Offers custom fitted for medium to high volume point-of-sale applications that require elite performance in a single plane horizontal form factor
  • Laser scan engine guarantees rapid error free data entry
  • Scan barcodes with a staggering speed of 640 scan/s
Read More

Need a different version? See all Symbol Mini-Scan MS2207 Fixed Barcode Scanners

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Symbol MS-2207VHD-I000R Fixed Barcode Scanner
Symbol MS-2207VHD-I000R Fixed Barcode Scanner Symbol MS-2207VHD-I000R Fixed Barcode Scanner Symbol MS-2207VHD-I000R Fixed Barcode Scanner
Symbol MS-2207VHD-I000R Fixed Barcode Scanner
Symbol MS-2207VHD-I000R Fixed Barcode Scanner
Symbol MS-2207VHD-I000R Fixed Barcode Scanner
Full specifications (PDF)
Symbol Mini-Scan MS2207 Fixed Barcode Scanner Model Overview
The Symbol Mini-Scan MS2207 offers four scan patterns including omni-directional for rapid capture of bar codes and symbols. This versatility minimizes the need for precise positioning of linear 1D bar codes, allowing even novice users to effectively scan data.The smart raster pattern excels at reading 2D symbols, even those that are poorly printed or low-contrast. Ruggedly constructed, this device is ideal for such applications as kiosks, ATMs, assembly lines and point-of-sale devices.
Symbol MS-2207VHD-I000R Fixed Barcode Scanner Overview

The MS 2207VHD from Symbol Technologies is a compact, affordable industrial fixed-mount scanners that provides fast, aggressive performance on a full range of 1D symbologies including PDF417, RSS and composite codes.MS2207VHD is ideal for unattended, high-speed scanning applications, such as conveyor belts and assembly lines in manufacturing and warehouse environments. With its ability to read PDF417 bar codes, it also offers an ideal solution for applications requiring the reading of driver licenses for security identification.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC/EAN
  • Code 128
  • UCC/EAN 128
  • Code 39
  • Code 93
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Codabar
  • MSI
Light Source:
Laser
Scan Rate:
640 scan/s
Depth of Field:
  • 1.5" - 6"@6.6mil
  • 3.5" - 8"@10mil
  • 3.5" - 9"@10mil
  • 5.6" - 15"@15mil
Scan Pattern:
  • Linear
  • 2D Raster
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Height:
1.6"
Width:
2.3"
Depth:
2.9"
Weight (Approximate):
4.73 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • USB
  • Serial

    • Certifications & Standards:

    Laser Classification:

    • CDRH Class II
    • IEC Class 2

    Electrical Safety:

    • Certified to UL1950
    • CA C22-2 NO950 ENG60950/IEC950

    EMI/RFI:

    • FCC Part 15 Class B
    • ICES-003 Class B European Union EMC Directive
    • Australian SMA

    Environmental:

    • RoHS-compliant
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Warranty
    Limited Warranty:
    1 Year
    Item Numbers
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Symbol MS-2207VHD-I000R Fixed Barcode Scanner is also known as SYM-MS2207VHDI000R or MS-2207VHD-I000R.
