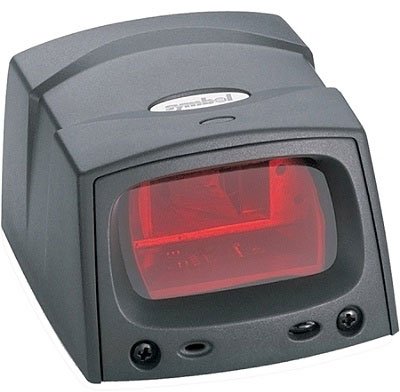

Symbol MS-2207-I000 Fixed Barcode Scanner

Part Number: MS-2207-I000
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D2D
Barcode Symbology Supported
UPC/EANCode 128UCC/EAN 128Code 39Code 93Discrete 2 of 5CodabarMSIPDF 417Micro PDFRSSComposite Codes
Scan Rate
640 scan/s

Product Description:

  Scanner (CL2, RAS, PDF, 1D, USB Interface and Housed Scan Engine)

Motorola MiniScan MS954 Fixed Barcode Scanner Model Overview

Zebra's MiniScan MS954 Series Fixed Mount Scanner is compact, durable and high performing. The MS954 is capable of scanning all types of 1D barcodes, including poorly printed and low contrast symbols. The MS954 offers a configurable scan angle of 47 degrees and 35 degrees for OEM devices requiring a flexible, expanded working range. As one of the smallest, lightest and brightest fixed-mount scanners available today, the MS954 is ideal for accurate automated data collection in OEM device designs with space constraints. It can also be used as a fixed-mount scanner. With its durable housing and built-in RS-232 interface, the mS954 enables your project teams to quickly and confidently integrate high performance 1D barcode data capture into many applications.
Symbol MS-2207-I000 Fixed Barcode Scanner Overview

The MS 2207 from Symbol Technologies is a compact, affordable industrial fixed-mount scanners that provides fast, aggressive performance on a full range of 1D and 2D symbologies including PDF417, RSS and composite codes. MS 2207 scan modules are easy to program and configure, enabling to shorten development time and bring product to market faster even if don't have in-house technical resources for scanner integration. With its rugged durable housing, exit window, integrated beeper and interface options, the MS 2207 enables project to quickly and confidently integrate high-performance 1D and 2D bar code data capture into standalone and OEM applications.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN
  • Code 128
  • UCC/EAN 128
  • Code 39
  • Code 93
  • Discrete 2 of 5
  • Codabar
  • MSI
  • PDF 417
  • Micro PDF
  • RSS
  • Composite Codes
Scan Rate:
640 scan/s
Scan Pattern:
  • Linear
  • 2D Raster
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
In-counter
Height:
1.6"
Width:
2.3"
Depth:
2.9"
Weight (Approximate):
4.73 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • USB
  • TTL level RS-232

USB Cable separate

Certifications & Standards:

Environmental Sealing:

IP54
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (1)
  • Mounting Hardware and Stands (2)
  • Scanner Accessories (5)

Recommended Accessories for Model: Symbol MS-2207-I000 Fixed Barcode Scanner

Top Cables, Connectors, and Adapters Purchased With Symbol MS-2207-I000

Top Mounting Hardware and Stands Purchased With Symbol MS-2207-I000

Top Scanner Accessories Purchased With Symbol MS-2207-I000

See All Scanner Accessories for Symbol MS-2207-I000 Fixed Barcode Scanner >
The Symbol MS-2207-I000 Fixed Barcode Scanner is also known as SYM-MS2207I000 or MS-2207-I000.
