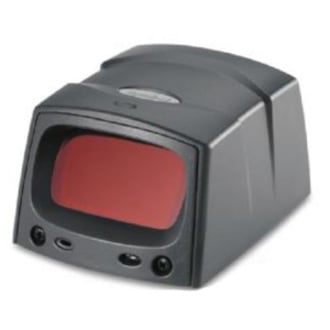

Symbol MS-2204-I000R Fixed Barcode Scanner

Part Number: MS-2204-I000R
Model: MiniScan MS2204
Add to My Shopping List Add to Compare
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D2D
Barcode Symbology Supported
UPC/EANCode 128UCC/EAN 128Code 39Code 93Interleaved 2 of 5Discrete 2 of 5CodabarMSIPDF 417Micro PDFRSSComposite Codes
Light Source
Laser

Product Description:

  Scanner, ENG CL 2, RAS, PDF/1D, RS-232, RoHS
Explore all Motorola MiniScan MS954 Fixed Barcode Scanners
Add to Quote
Symbol MS-2204-I000R Fixed Barcode Scanner
Symbol MS-2204-I000R Fixed Barcode Scanner
Symbol MS-2204-I000R Fixed Barcode Scanner
Symbol MS-2204-I000R Fixed Barcode Scanner Symbol MS-2204-I000R Fixed Barcode Scanner Symbol MS-2204-I000R Fixed Barcode Scanner
Full specifications (PDF)

Motorola MiniScan MS954 Fixed Barcode Scanner Model Overview

Zebra's MiniScan MS954 Series Fixed Mount Scanner is compact, durable and high performing. The MS954 is capable of scanning all types of 1D barcodes, including poorly printed and low contrast symbols. The MS954 offers a configurable scan angle of 47 degrees and 35 degrees for OEM devices requiring a flexible, expanded working range. As one of the smallest, lightest and brightest fixed-mount scanners available today, the MS954 is ideal for accurate automated data collection in OEM device designs with space constraints. It can also be used as a fixed-mount scanner. With its durable housing and built-in RS-232 interface, the mS954 enables your project teams to quickly and confidently integrate high performance 1D barcode data capture into many applications.
Symbol MS-2204-I000R Fixed Barcode Scanner Overview

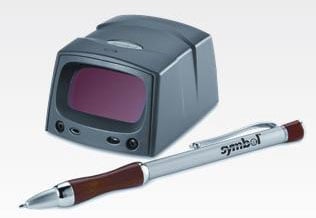

MiniScan MS2204 Bar Code Reader is a compact, affordable industrial fixed mount scanners that provides fast, aggressive performance on a full range of 1D and 2D symbologies including PDF417, RSS and composite codes. It is available in standard and a VHD version to read high-density bar codes, It offers a smart raster pattern optimized to read 2D symbols and poorly printed linear bar codes, making this fixed mount scanner ideal for use in a variety of automated data collection devices.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN
  • Code 128
  • UCC/EAN 128
  • Code 39
  • Code 93
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Codabar
  • MSI
  • PDF 417
  • Micro PDF
  • RSS
  • Composite Codes
Light Source:
Laser
Image Sensor Type:
Linear
Scan Rate:
640 scan/s
Maximum Scan Resolution:
6.60 mil
Depth of Field:
  • 1.5" - 6"@6.6mil
  • 3.5" - 8"@10mil
  • 3.5" - 9"@10mil
  • 5.6" - 15"@15mil
Scan Pattern:
  • Linear
  • 2D Raster
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
1.6"
Width:
2.3"
Depth:
2.9"
Weight (Approximate):
4.73 oz
Miscellaneous
Package Contents:
  • MiniScan MS2204 Bar Code Reader
  • RS232 Verifone Ruby 9ft, Coiled Cable
Additional Information:

USB Cable separate

Platform Supported:
PC
Certifications & Standards:

Laser Classification:

  • CDRH Class II
  • IEC Class 2

Electrical Safety:

  • UL1950
  • CA C22-2 NO950 ENG60950/IEC950

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B European Union EMC Directive
  • Australian SMA

Environmental:

  • RoHS
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211701
