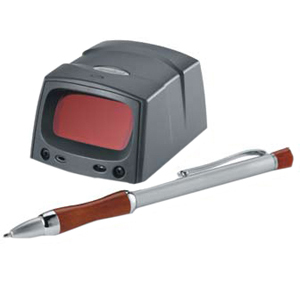

Motorola MS-1207WA-I000R Fixed Barcode Scanner

Symbol MS1207 - MS 1207 MiniScan (Housed Scan Engine, CL 2, SL-WA, 60D and USB/Synapse). Requires cable, not included. See accessories.
  • Metes out excellent operation and rugged structure with smart retailing features which is an ideal choice for bundling terminals, businesses, supermarkets and grocery stores
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Scan barcodes with a staggering speed of 36 scan/s
Read More

Full specifications (PDF)

High performance fixed mount scanner
The MiniScan MS1207 from Symbol is a compact, durable, industrial fixed-mount scanner. The MiniScan MS1207 is an excellent choice for OEM devices requiring accurate, automated data collection, even in the most demanding environments. The MiniScan MS1207 scanner features immunity to ambient light and durable design which combine to deliver premium scanning performance in the most demanding environments. MiniScan MS1207 scanners are easy to program and configure, enabling you to shorten your development time and bring your product to market faster - even if you don't have in-house technical resources for scanner integration. With its rugged durable housing, exit window, integrated beeper and multiple interface options, MiniScan MS1207 scanners enable your project teams to quickly and confidently integrate high-performance 1D barcode data capture into many applications.
Symbol MS-1207WA-I000R Overview

MiniScan MS1207 Bar Code Reader is a compact, durable, industrial fixed mount scanner. MiniScan MS1207 Bar Code Reader is an excellent choice for OEM devices requiring accurate, automated data collection, even in the most demanding environments. It can also be used as a standalone fixed mount scanner.

Protect Your Product

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC/EAN
  • Code 128
  • UCC/EAN 128
  • Code 39
  • Code 93
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Codabar
  • MSI
  • RSS
Light Source:
Laser
Scan Rate:
36 scan/s
Depth of Field:
  • 1" - 4"@5mil
  • 0.6" - 7.2"@7.5mil
  • 0.6" - 11"@100% UPC
  • 0" - 15"@20mil
  • 0" - 19"@40mil
  • 0" - 24"@55mil
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
Serial
Physical Characteristics
Height:
1.6"
Width:
2.3"
Depth:
2.9"
Weight (Approximate):
4.45 oz
Miscellaneous
Additional Information:

Interfaces Supported:

  • RS-232
  • USB

USB Cable separate

Certifications & Standards:
  • RoHS Compliant

Laser Classification:

  • CDRH Class II
  • IEC Class 2

Electrical Safety:

  • Certified to UL1950
  • CA C22-2 NO950 ENG60950/IEC950

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B European Union EMC Directive
  • Australian SMA
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701

Recommended Accessories for Model: Symbol MiniScan MS1207 Scanner

Category

  • Mounting Hardware & Stands (2)
  • Cables, Connectors, and Adapters (1)
  • Accessories (8)
Recommended Accessories for Model: Symbol MiniScan MS1207 Scanner

Mounting Hardware & Stands

Symbol (20-60136-02R)
Twilight black gooseneck intellistand for MiniScan series. Includes screws for mounting scanner to the stand
In Stock: Ships Same Day
$33.68
+ Add to Quote
Symbol (KT-65578-01R)
Miniscan Adjustable Mounting Bracket for easier mounting of DS457 in a kiosk or other confined space locations
Ships in 3-5 Days
$51.53
+ Add to Quote

Cables, Connectors, and Adapters

Symbol (25-58926-03R)
Cable Assembly (USB)

Accessories

Symbol (25-13227-02)
Cable Assembly (Host, F, TXD-2)
Symbol (25-13228-02)
Cable Assembly (TXD, P2, with Trigger and Beeper)
Symbol (25-58925-01)
Cable Assembly (USB, R-A) for MS1207 Scanners with Trigger and Beep)
Symbol (KT-65578-01)
MiniScan adjustable mounting bracket
Symbol (25-58925-01R)
Cable Assembly (USB, R-A) for MS1207 Scanners with Trigger and Beep).
Symbol (25-13228-02R)
Cable Assembly, TXD, P2 with Trigger and Beeper
Symbol (25-62186-01R)
Cable Assembly (TTL/RS-232)
Symbol (25-13227-02R)
Cable accessory, TxD on Pin2, 9-Pin Female.

The Symbol MS-1207WA-I000R is also known as Symbol Technologies MS-1207WA-I000R or MS1207WAI000R .
