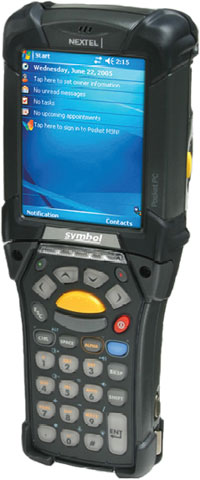

Motorola MC9097-KKTHJFHA6WW Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review
Symbol MC9097-K - Windows Mobile 5.0 Phone Edition, 64MB RAM, wireless, 43 key alphanumeric keypad, color display, Xscale processor. Includes 128MB Flash, Imager, iDEN and Bluetooth
Provides mobile workers with flexible, always-on voice and data connectivity.

By combining rugged design, manageability and the comprehensive functionality to support the applications of today and tomorrow, the Symbol MC9097-K delivers outstanding investment protection and a low total cost of ownership. Multiple advanced data capture options enable the design of enterprise applications that collect and provide access to real-time information. The MC9097-K supports simple to complex multi-media applications and data storage needs while protecting business-critical data.

Technical Information

  • Operating System: Windows Mobile 5.0 Phone Edition
  • Processor: Intel PXA270 XScale 624MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit
  • Scanner Type: Imager
  • Symbologies Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • CompositeAB
    • Composite C
    • Coupon Code
    • DataMatrix
    • Discrete 2 of 5
    • Dutch Kix
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • Macro PDF-417
    • Micro PDF-417
    • Macro Micro PDF-417
    • MaxiCode
    • MSI
    • PDF 417
    • QR Code
    • RSS-Expanded
    • RSS-Limited
    • RSS-14
    • TLC39
    • Trioptic Code 39
    • UPC/EAN Supplementals
    • UPC-A
    • UPC-E
    • U.S. Planet
    • U.S. Postnet
    • Webcodes
    • Australian 4-State
    • Canadian 4 State
    • Japanese 4-State
    • UK 4-State

General Information

  • Manufacturer:
  • Product Line: Mobile Computer (MC)
  • Product Name: MC9097-K Mobile Computer

Physical Characteristics

  • Display: 3.8" Color QVGA - Touch Screen LCD
  • Display Resolution: 320 x 240
  • User Accessible Expansion Slot: MMC SD (For Memory Expansion Only)
  • Keyboard: 43 Key Numeric Function Shift Alpha Integrated
  • Battery Capacity: 2200 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 2.2" (56mm) x 3.6" (91mm) x 9" (229mm)

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • 0°C (32°F) to 40°C (104°F) Charging
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Direct Discharge
    • +/-8kVdc Indirect Discharge
  • Drop Spec: 6' To Concrete Multiple at Operating Temprature
  • Tumble: 2000 one-meter tumbles at room temperature (4000 hits)

Wireless Data Communications

  • Network Connectivity:
    • WLAN 802.11 b/g/a
    • WPAN Bluetooth
    • WWAN iDEN (800 - 900 MHz)
  • Maximum RF Data Rate Supported: 54 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 5GHz

Other

  • Additional Information: WAN Carrier: Nextel
  • Package Contents: MC9097 Mobile Computer Battery Hand Strap Stylus BT Explorer Regulatory Guide Quick Start Guide

Memory

  • RAM Memory: 64MB
  • Flash Memory: 128MB

Agency Approvals

  • Agency Approvals: Electrical Safety: Certified to UL60950 CSA C22.2 No. 60950 EN60950/IEC 950 EMI/RFI: North America: FCC Part 2 (SAR) FCC Part 15 RSS210 Class B EN 301 489-1 EN 301 489-17 FCC Part 90 Laser Safety: IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model MC9097-K
Display Resolution 240 x 320
Operating System Windows Mobile 5.0 Phone Edition, Windows Mobile
Style Full-size
IP Rating IP64
Network Connectivity 802.11g, 802.11a, 802.11a/b/g
RAM Memory 64 MB
Scanner Type Laser
Data Collection Type Wireless
Drop Rating 6 ft.1.8 m
