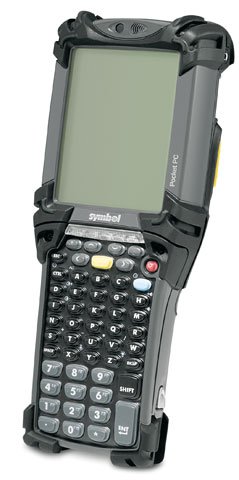

Motorola MC9094-KUCHJAHA6WR Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review
Symbol MC9090-K - Brick, 802.11a/b/g, eGPRS, 1D, Color, 64/128MB, 28 key, Windows Mobile 5.0.0 with Phone Ed, Audio/Voice/Bluetooth
Maximize worker productivity!

The MC9090-K mobile computer maximizes mobile worker productivity by providing a flexible, always-on connection to the network. The MC9090-K provides the most advanced mobile operating systems available with a choice of a familiar Windows environment or an application-specific environment. Additionally, it supports a variety of multimedia applications and its Intel 624 MHz enhanced memory ensures retention of mission-critical data. The Bluetooth option allows users to wirelessly synchronize and print. The MC9090-K's rugged construction, which passes stringent drop and tumble tests, dramatically reduces repair and downtime costs while its 3.8" screen makes it easy to read. The terminal allows for efficient use in a variety of applications such as manufacturing, delivery and retail floors.

Technical Information

  • Operating System: Windows Mobile 5.0 Premium Phone Edition
  • Processor: Intel PXA270 XScale 624MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • AES
    • LEAP
    • PEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit
  • Scanner Type: Laser Standard Range
  • Symbologies Supported:
    • Codabar
    • Code 39
    • Code 93
    • Code 128
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • MSI
    • RSS
    • UCC/EAN 128
    • UPC/EAN

General Information

  • Manufacturer: Motorola
  • Product Line: Mobile Computer (MC)
  • Product Name: MC9094-K Mobile Computer

Physical Characteristics

  • Display: 3.8" Color QVGA - Touch Screen LCD
  • Display Resolution: 320 x 240
  • User Accessible Expansion Slot: MMC SD (For Memory Expansion Only)
  • Keyboard: 38 Key Numeric Prime Integrated
  • Battery Capacity: 2200 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 2.3" (58mm) x 3.6" (91mm) x 9.1" (231mm)

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • 0°C (32°F) to 40°C (104°F) Charging
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Direct Discharge
  • Drop Spec: 6' To Concrete Multiple at Operating Temprature
  • Tumble: 2000 one-meter tumbles at room temperature (4000 hits)

Wireless Data Communications

  • Network Connectivity:
    • WLAN 802.11 b/g/a
    • WPAN Bluetooth
    • WWAN GSM/eGPRS (Quad Band 850/900/1800/1900 Mhz)
  • Maximum RF Data Rate Supported: 54 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 5GHz

Other

  • Additional Information: Voice Communication: Voice-over-IP Ready (P2P, PBX, PPT) Wi-Fi Certified
  • Package Contents: MC9094-K Mobile Computer Battery Hand Strap Stylus BT Explorer Regulatory Guide Quick Start Guide

Memory

  • RAM Memory: 64MB
  • Flash Memory: 128MB

Agency Approvals

  • Agency Approvals: RoHS Compliance

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model MC9090-K
Operating System Windows Mobile 5.0, Windows Mobile
RAM Memory 64 MB
IP Rating IP64
Network Connectivity 802.11g, 802.11a, 802.11a/b/g
Style Full-size
Display Resolution 240 x 320
Scanner Type Imager
Data Collection Type Wireless
Drop Rating 6 ft.1.8 m


Customer Review Summary

Recommended Accessories for Model: Symbol MC9090-K Mobile Computer
Protect Your Product
Symbol Service Contract - 2 year (SSB-MC909XSK-20-R)
RENEWAL-SERVICE FROM THE START SVC CTR BRONZE 2 year BRCK/SHRT
Ships in 3-5 Days
$189.60
+ Add to Quote

The Symbol MC9094-KUCHJAHA6WR is also known as Symbol Technologies SYM-MC9094KUCHJAHA6R or MC9094KUCHJAHA6WR .
