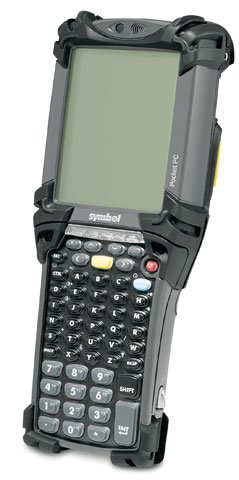

Motorola MC9090-KU0HJEFA6WR Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review
Symbol MC9090-K - Brick, 802.11a/b/g, 1D, Color, 64/128MB, 53 key, Windows Mobile 5.0.0, Audio/Voice/Bluetooth
Maximize worker productivity!

The MC9090-K mobile computer maximizes mobile worker productivity by providing a flexible, always-on connection to the network. The MC9090-K provides the most advanced mobile operating systems available with a choice of a familiar Windows environment or an application-specific environment. Additionally, it supports a variety of multimedia applications and its Intel 624 MHz enhanced memory ensures retention of mission-critical data. The Bluetooth option allows users to wirelessly synchronize and print. The MC9090-K's rugged construction, which passes stringent drop and tumble tests, dramatically reduces repair and downtime costs while its 3.8" screen makes it easy to read. The terminal allows for efficient use in a variety of applications such as manufacturing, delivery and retail floors.

Technical Information

  • Operating System: Windows Mobile 5.0 Premium Edition
  • Processor: Intel PXA270 XScale 624MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit
  • Scanner Type: Laser Standard Range - SE950

General Information

  • Manufacturer: Motorola
  • Product Line: Mobile Computer (MC)
  • Product Name: MC9090-K Mobile Computer

Physical Characteristics

  • Display: 3.8" Color QVGA - Touch Screen LCD
  • Display Resolution: 320 x 240
  • User Accessible Expansion Slot: SDIO
  • Keyboard: 53 Key Alphanumeric Integrated
  • Battery Capacity: 2200 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 2.2" (56mm) x 3.6" (91mm) x 9.1" (231mm)

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • 0°C (32°F) to 40°C (104°F) Charging
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Direct Discharge
    • +/-8kVdc Indirect Discharge
  • Drop Spec: 6' To Concrete Multiple at -20°C to 50°C
  • Tumble: 2000 one-meter tumbles at room temperature (4000 hits)

Wireless Data Communications

  • Network Connectivity:
    • WLAN 802.11 b/g/a
    • WPAN Bluetooth
  • Maximum RF Data Rate Supported: 54 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 5GHz

Other

  • Additional Information:
    • Communication Options: Audio
    • Region: Worldwide
  • Package Contents: MC9090-K Mobile ComputerBatteryHand StrapStylusBT ExplorerRegulatory GuideQuick Start Guide

Memory

  • RAM Memory: 64MB
  • Flash Memory: 128MB

Agency Approvals

  • Agency Approvals: RoHS Compliance

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model MC9090-K
IP Rating IP64
Operating System Windows Mobile 5.0, Windows Mobile
Processor 400 MHz Intel PXA255
Network Connectivity 802.11g, 802.11a, Bluetooth, 802.11a/b/g
Display Resolution 240 x 320
Operating Temperature -4 F - 122 F
Style Full-size
RAM Memory 64 MB
Keypad 53
Scanner Type Laser
Data Collection Type Wireless
Scanner Capability 1D
Drop Rating 6 ft.1.8 m
