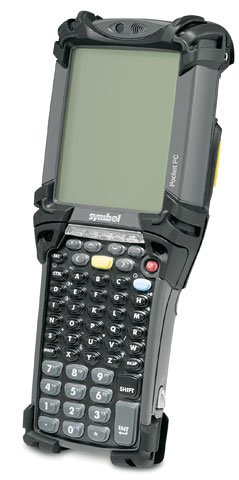

Motorola MC9090-KK0HJEFA6WR Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review
Symbol MC9090-K - Brick, 802.11a/b/g, Imager, Color, 64/128MB, 53 key, Windows Mobile 5.0.0, Audio/Voice/Bluetooth
Maximize worker productivity!

The MC9090-K mobile computer maximizes mobile worker productivity by providing a flexible, always-on connection to the network. The MC9090-K provides the most advanced mobile operating systems available with a choice of a familiar Windows environment or an application-specific environment. Additionally, it supports a variety of multimedia applications and its Intel 624 MHz enhanced memory ensures retention of mission-critical data. The Bluetooth option allows users to wirelessly synchronize and print. The MC9090-K's rugged construction, which passes stringent drop and tumble tests, dramatically reduces repair and downtime costs while its 3.8" screen makes it easy to read. The terminal allows for efficient use in a variety of applications such as manufacturing, delivery and retail floors.

Technical Information

  • Scanner Range: Standard Range
  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
  • Barcode Symbology Supported:
    • Australian 4-State
    • Canadian 4 State
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • CompositeAB
    • Composite C
    • Coupon Code
    • DataMatrix
    • Discrete 2 of 5
    • Dutch Kix
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • Japanese 4-State
    • Macro Micro PDF-417
    • Macro PDF-417
    • Micro PDF-417
    • MaxiCode
    • MSI
    • PDF 417
    • QR Code
    • RSS-Expanded
    • RSS-Limited
    • RSS-14
    • TLC39
    • Trioptic Code 39
    • UK 4-State
    • UPC/EAN Supplementals
    • UPC-A
    • UPC-E
    • U.S. Planet
    • U.S. Postnet
    • Webcodes

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9090-K
  • Product Name: MC9090-K Mobile Computer

Physical Characteristics

  • Height: 2.2"
  • Width: 3.6"
  • Length: 9.1"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC9090-K Mobile Computer
    • Battery
    • Hand Strap
    • Stylus
    • BT Explorer
    • Regulatory Guide
    • Quick Start Guide
    • MC9090-K Mobile Computer
    • Battery
    • Hand Strap
    • Stylus
    • BT Explorer
    • Regulatory Guide
    • Quick Start Guide
  • Certifications & Standards:
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1
    • IEC 60950-1
    • EMI/RFI:
    • FCC Part 2 (SAR)
    • FCC Part 15
    • RSS210 B
    • EN 300 328
    • EN 301 489-1
    • EN 489-17
  • Additional Information:
    • Communication Options: Audio
    • Region: Worldwide
    • Voice Communication:
    • Voice-over-IP Ready (P2P, PBX, PPT)
    • Wi-Fi Certified

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit

Display & Graphics

  • Screen Mode: QVGA
  • Screen Size: 3.8"
  • Display Color: Color
  • Screen Resolution: 320 x 240

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital (SD) Card

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 53

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 5.0 Premium Edition

Warranty

  • Limited Warranty: 1 Year

I/O Expansions

  • Expansion Slot Type: SDIO

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model MC9090-K
IP Rating IP64
RAM Memory 64 MB
Operating System Windows Mobile, Windows CE 5.0
Operating Temperature -4 F - 122 F
Style Full-size
Processor 400 MHz Intel PXA255
Network Connectivity 802.11a/b/g, 802.11g, 802.11a, Bluetooth
Display Resolution 240 x 320
Keypad 53
Scanner Type Imager
Data Collection Type Wireless
Scanner Capability 2D
Drop Rating 6 ft.1.8 m


Customer Review Summary

Recommended Accessories for Model: Symbol MC9090-K Mobile Computer
Protect Your Product
Symbol Service Contract - 2 year (SSB-MC909XSK-20-R)
RENEWAL-SERVICE FROM THE START SVC CTR BRONZE 2 year BRCK/SHRT
Ships in 3-5 Days
$189.60
+ Add to Quote

The Symbol MC9090-KK0HJEFA6WR is also known as Symbol Technologies SYM-MC9090KK0HJEFA6R or MC9090KK0HJEFA6WR .
