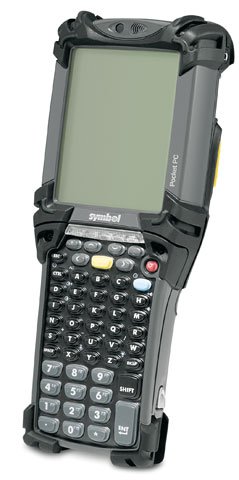

Motorola MC9090-KK0HJAFA6WR Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review
Symbol MC9090-K - Brick, 802.11a/b/g, Imager, Color, 64/128MB, 28 key, Windows Mobile 5.0.0, Audio/Voice/Bluetooth
Maximize worker productivity!

The MC9090-K mobile computer maximizes mobile worker productivity by providing a flexible, always-on connection to the network. The MC9090-K provides the most advanced mobile operating systems available with a choice of a familiar Windows environment or an application-specific environment. Additionally, it supports a variety of multimedia applications and its Intel 624 MHz enhanced memory ensures retention of mission-critical data. The Bluetooth option allows users to wirelessly synchronize and print. The MC9090-K's rugged construction, which passes stringent drop and tumble tests, dramatically reduces repair and downtime costs while its 3.8" screen makes it easy to read. The terminal allows for efficient use in a variety of applications such as manufacturing, delivery and retail floors.

Technical Information

  • Scanner Range: Standard Range
  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • Composite AB
    • Composite C
    • Coupon Code
    • Data Matrix
    • Discrete 2 of 5
    • Dutch Kix
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • Macro Micro PDF-417
    • Macro PDF-417
    • Micro PDF-417
    • Maxi Code
    • MSI
    • PDF-417
    • QR Code
    • RSS Expanded
    • RSS Limited
    • RSS-14
    • TLC39
    • Trioptic 39
    • UPC/EAN supplementals
    • UPCA
    • UPCE
    • US Planet
    • US Postnet
    • Webcode
    • Australian 4-state
    • Canadian 4-state
    • Japanese 4-state
    • UK 4-state

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9090-K
  • Product Name: MC9090-K Mobile Computer

Physical Characteristics

  • Height: 2.2"
  • Width: 3.6"
  • Length: 9.1"

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP (40 or 128 bit)

Other

  • Additional Information:
    • Country Code: Class1Div2
    • Form Factor: Brick
    • Imager Type: Piico
    • Tumble: 2,000 one-meter tumbles at room temperature (4,000 drops)
    • Communication Options: Audio
    • Voice Communication:
    • Voice-over-IP Ready (P2P, PBX, PPT)
    • Wi-Fi Certified

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • Secure Digital (SD) Card
    • MultiMediaCard (MMC)

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.8"
  • Display Color: Color
  • Screen Resolution: 320 x 240

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows Mobile 5.0

Touchscreen Information

  • Touchscreen: Yes

Keyboard/Keypad

  • Keyboard Type: Numeric

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model MC9090-K
IP Rating IP64
Network Connectivity 802.11g, 802.11a, Bluetooth, 802.11a/b/g
Display Resolution 240 x 320
RAM Memory 64 MB
Operating System Windows Mobile, Windows Mobile 5.0 Premium
Style Full-size
Scanner Type Imager
Data Collection Type Wireless
Drop Rating 6 ft.1.8 m
