Motorola MC9090-GJ0JBJGA2WR Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review

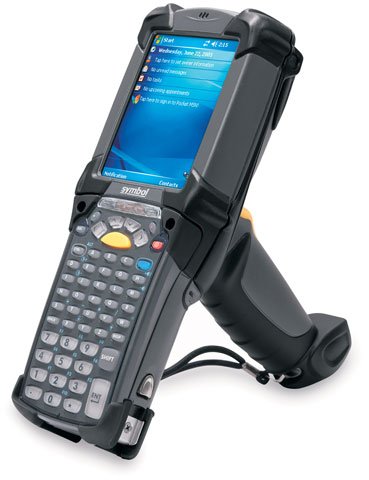

Symbol MC9090-G - Gun, 802.11a/b/g, Lorax, Mono, 64/64MB, 53-5250 key, Windows CE 5.0, Bluetooth
Maximize worker productivity!

The MC9090-G mobile computer maximizes mobile worker productivity by providing a flexible, always-on connection to the network. The MC9090-G provides the most advanced mobile operating systems available with a choice of a familiar Windows environment or an application-specific environment. Additionally, it supports a variety of multimedia applications and its Intel 624 MHz enhanced memory ensures retention of mission-critical data. The Bluetooth option allows users to wirelessly synchronize and print. The MC9090-G's rugged construction, which passed stringent drop and tumble tests, dramatically reduces repair and downtime costs while its 3.8" screen makes it easy to read. The pistol grip allows for comfortable and efficient use in a variety of applications such as manufacturing, delivery and retail floors.

Technical Information

  • Scanner Range: Long Range
  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • Coupon Code
    • Discrete 2 of 5
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • MSI
    • Trioptic 39
    • UPC/EAN supplementals
    • UPCA
    • UPCE
    • Webcode

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9090-G
  • Product Name: MC9090-G Mobile Computer

Physical Characteristics

  • Height: 7.6"
  • Width: 3.6"
  • Length: 9.1"
  • Weight (Approximate): 1.56 lb

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC9090-G Mobile Computer
    • Battery
    • Hand Strap
    • Stylus
    • BT Explorer
    • Regulatory Guide
    • Quick Start Guide
    • MC9090-G Mobile Computer
    • Battery
    • Hand Strap
    • Stylus
    • BT Explorer
    • Regulatory Guide
    • Quick Start Guide
  • Certifications & Standards:
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1
    • IEC 60950-1
    • EMI/RFI:
    • FFC Part2(SAR)
    • FCC Part 15
    • RSS210
    • EN 300 328
    • EN 301 487
    • EN55022
    • EN55024
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
  • Additional Information:
    • Region: Worldwide
    • Environmental Sealing: IP64 (electronic enclosure, display and keypad)
    • Tumble: 2,000 one-meter tumbles at room temperature (4,000 drops)
    • keypad: 5250

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit

Memory

  • Flash Memory: 64 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • MultiMediaCard (MMC)
    • Secure Digital (SD) Card

Display & Graphics

  • Screen Mode: QVGA
  • Screen Size: 3.8"
  • Display Color: Monochrome
  • Screen Resolution: 320 x 240

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows CE 5.0

Keyboard/Keypad

  • Number of Keys: 53

Warranty

  • Limited Warranty: 1 Year

Touchscreen Information

  • Touchscreen: Yes

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model MC9090-G
IP Rating IP64
Network Connectivity 802.11g, 802.11a, Bluetooth, 802.11a/b/g
Operating System Windows CE 5.0
Display Resolution 240 x 320
Style Gun
RAM Memory 64 MB
Scanner Type Laser
Data Collection Type Wireless
Drop Rating 6 ft.1.8 m
