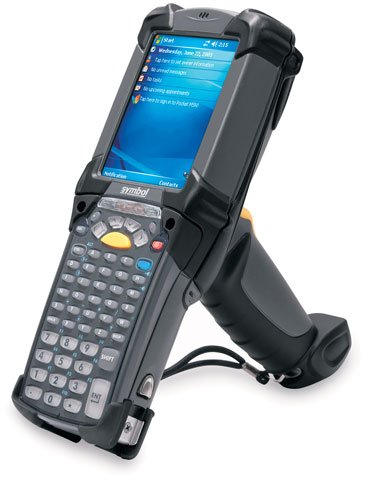

Motorola MC9090-GJ0HBGGC2WR Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review
Symbol MC9090-G - Gun, 802.11a/b/g, Lorax, Color, 64/64MB, 53 VT Key, Windows CE 5.0, Condensation Resistant, Bluetooth
Maximize worker productivity!

The MC9090-G mobile computer maximizes mobile worker productivity by providing a flexible, always-on connection to the network. The MC9090-G provides the most advanced mobile operating systems available with a choice of a familiar Windows environment or an application-specific environment. Additionally, it supports a variety of multimedia applications and its Intel 624 MHz enhanced memory ensures retention of mission-critical data. The Bluetooth option allows users to wirelessly synchronize and print. The MC9090-G's rugged construction, which passed stringent drop and tumble tests, dramatically reduces repair and downtime costs while its 3.8" screen makes it easy to read. The pistol grip allows for comfortable and efficient use in a variety of applications such as manufacturing, delivery and retail floors.

Technical Information

  • Operating System: Windows CE 5.0
  • Processor: Intel PXA270 XScale 624MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit
  • Scanner Type: Laser Long Range - Lorax 1D
  • Symbologies Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • Coupon Code
    • Discrete 2 of 5
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • MSI
    • Trioptic Code 39
    • UPC/EAN Supplementals
    • UPC-A
    • UPC-E
    • Webcodes

General Information

  • Manufacturer: Symbol
  • Product Line: Mobile Computer (MC)
  • Product Name: MC9090-G Mobile Computer

Physical Characteristics

  • Display: 3.8" Color QVGA - Touch Screen LCD
  • Display Resolution: 320 x 240
  • User Accessible Expansion Slot: MMC SD (For Memory Expansion Only)
  • Keyboard: 53 Key VT Emulation Integrated
  • Battery Capacity: 2200 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 7.6" (193mm) x 3.6" (91mm) x 9.1" (231mm)
  • Weight: 25 oz - Includes Battery, Scanner and Radio

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • 0°C (32°F) to 40°C (104°F) Charging
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Direct Discharge
  • Drop Spec: 6' To Concrete Multiple at -20°C to 50°C
  • Tumble: 2000 one-meter tumbles at room temperature (4000 hits)

Wireless Data Communications

  • Network Connectivity:
    • WLAN 802.11 b/g/a
    • WPAN Bluetooth
  • Maximum RF Data Rate Supported: 54 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 5GHz

Other

  • Additional Information: Region: Worldwide
  • Package Contents: MC9090-G Mobile Computer Battery Hand Strap Stylus BT Explorer Regulatory Guide Quick Start Guide

Memory

  • RAM Memory: 64MB
  • Flash Memory: 64MB

Agency Approvals

  • Agency Approvals: RoHS Compliance

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model MC9090-G
Network Connectivity Bluetooth, 802.11g, 802.11a, 802.11a/b/g
Operating System Windows CE 5.0
Display Resolution 240 x 320
RAM Memory 64 MB
Style Gun
IP Rating IP64
Scanner Type Imager
Data Collection Type Wireless
Drop Rating 6 ft.1.8 m
