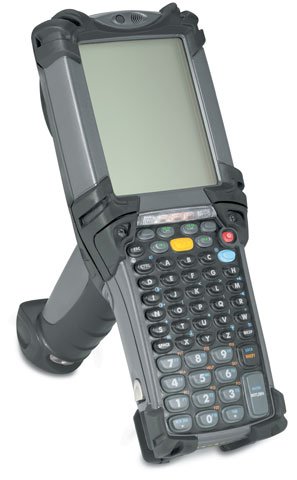

Motorola MC9060-GJ0JBFB00WW Mobile Computer

Symbol MC9000-G - Wi-Fi (802.11b), Long Range 1D Laser, WindowsCE .NET, Monochrome Screen, 64MB RAM/64MB ROM, 43 key.
Variable Range Barcode Laser Scanner or Imager

The MC9060-G (MC9000-G Series) delivers an unsurpassed choice of scanning and imaging technologies. You can select an integrated high-performance laser barcode scan engine or a feature-rich, powerful imager, depending on your application requirements. The MC9060-G (MC9000-G Series) features an innovative mechanical design that withstands multiple 6-foot drops to concrete. Its IP64 sealing rating makes it virtually impervious to dust and moisture in environments where intensive barcode scanning takes place. Multimode wireless communication offers real-time access to data anytime, anywhere.

Technical Information

  • Operating System: Windows CE .NET
  • Processor: Intel PXA255 XScale 400MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • WEP 128 bit
    • Keyguard - (SBL TKIP)
    • Kerberos
    • LEAP
    • WPA Home (PSK)
    • PEAP
    • WPA Enterprise (EAP Authenticated)
  • Scanner Type: Laser Long Range - Lorax 1D
  • Symbologies Supported:
    • Codabar
    • Code 11
    • Code 128
    • Code 39
    • Code 93
    • Coupon Code
    • Discrete 2 of 5
    • EAN-13
    • EAN-8
    • Interleaved 2 of 5
    • MSI
    • Trioptic Code 39
    • UPC/EAN Supplementals
    • UPC-A
    • UPC-E
    • Webcodes

General Information

  • Manufacturer: Symbol
  • Product Line: Mobile Computer (MC)
  • Product Name: MC9060-G Mobile Computer

Physical Characteristics

  • Display: 3.8" Monochrome QVGA - Touch Screen LCD
  • Keyboard: 43 Key Numeric-Function
  • Battery Capacity: 2200 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 7.6" (193mm) x 3.6" (91mm) x 9.2" (234mm)
  • Weight: 26 oz - Includes Battery, Scanner and Radio

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Direct Discharge
    • +/-8kVdc Indirect Discharge
  • Drop Spec:
    • 6' To Concrete Multiple at -10?C to 50?C
    • 5' To Concrete Multiple at -25?C to -10?C
  • Tumble: 2000 one-meter tumbles at room temperature (4000 hits)

Agency Approvals

  • Agency Approvals:
    • Certified to UL60950
    • CSA C22.2 No. 60950
    • EN60950/IEC 950
    • North America:
    • FCC Part 2 (SAR)
    • FCC Part 15
    • RSS210 Class B
    • EN 301 489-1
    • EN 301 489-17
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Other

  • Additional Information: Region: World Wide
  • Package Contents:
    • MC9060-G Mobile Computer
    • Battery
    • Hand Strap
    • Stylus
    • Regulatory Guide
    • Quick Start Guide

Wireless Data Communications

  • Network Connectivity: WLAN 802.11b
  • Maximum RF Data Rate Supported: 11 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 2.5GHz

Memory

  • RAM Memory: 64MB
  • Flash Memory: 64MB

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model MC9060-G (MC9000-G Series)
Style Gun
Display Resolution 240 x 320
RAM Memory 64 MB
Operating System Windows CE .NET
Scanner Type Laser
Data Collection Type Wireless
