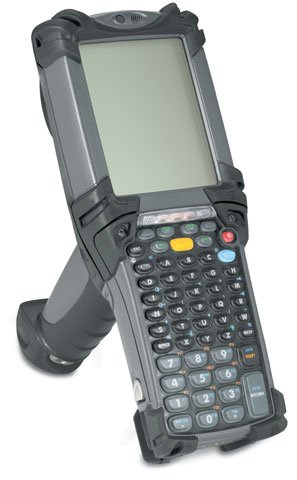

Motorola MC9060-GJ0JBEB00WW Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review
Symbol MC9000-G - Wi-Fi (802.11b), Long Range 1D Laser, WindowsCE .NET, Monochrome Screen, 64MB RAM/64MB ROM, 53 key.
Variable Range Barcode Laser Scanner or Imager

The MC9060-G (MC9000-G Series) delivers an unsurpassed choice of scanning and imaging technologies. You can select an integrated high-performance laser barcode scan engine or a feature-rich, powerful imager, depending on your application requirements. The MC9060-G (MC9000-G Series) features an innovative mechanical design that withstands multiple 6-foot drops to concrete. Its IP64 sealing rating makes it virtually impervious to dust and moisture in environments where intensive barcode scanning takes place. Multimode wireless communication offers real-time access to data anytime, anywhere.

Technical Information

  • Scanner Range: Long Range
  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification:
    • 72" To Concrete @ 14°F (-10°C) to 122°F (50°C)
    • 60" To Concrete @ -13°F (-25°C) to 14°F (-10°C)
  • Barcode Symbology Supported:
    • Code 39
    • Code 128
    • Code 93
    • Codabar
    • Code 11
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • MSI
    • UPC-A
    • UPC-E
    • Coupon Code
    • Trioptic Code 39
    • Webcodes
    • UPC/EAN Supplementals

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9060-G
  • Product Name: MC9060-G Mobile Computer

Physical Characteristics

  • Height: 9.2"
  • Width: 3.6"
  • Length: 7.6"
  • Weight (Approximate): 1.62 lb

Other

  • Package Contents:
    • MC9060-G Handheld Terminal
    • Battery
    • Handstrap
    • Stylus
    • Regulatory Guide
    • Quick Start Guide<
    • MC9060-G Handheld Terminal
    • Battery
    • Handstrap
    • Stylus
    • Regulatory Guide
    • Quick Start Guide<
  • Certifications & Standards:
    • Electrical Safety:
    • Certified to UL60950
    • CSA C22.2 No. 60950
    • EN60950/IEC 950
    • EMI/RFI:
    • North America:
    • FCC Part 2 (SAR)
    • FCC Part 15
    • RSS210 Class B
    • EN 301 489-1, 489-17
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Network & Communication

  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11b
  • Wireless Security:
    • WEP 128 bit
    • Keyguard - SBL
    • Kerberos
    • LEAP
    • WPA Home (PSK)
    • PEAP
    • WPA Enterprise (EAP Authenticated)
    • WEP 40 bit

Memory

  • Flash Memory: 64 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • Secure Digital (SD) Card
    • MultiMediaCard (MMC)

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.8"
  • Display Color: Monochrome

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 400 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 53

Software

  • Operating System: Windows CE .NET

Warranty

  • Limited Warranty: 1 Year

Touchscreen Information

  • Touchscreen: Yes

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model MC9060-G (MC9000-G Series)
Style Gun
RAM Memory 64 MB
Operating System Windows CE .NET
Network Connectivity 802.11 b/g
Display Resolution 240 x 320
Scanner Type Laser
Data Collection Type Wireless
Scanner Capability 1D
