Motorola MC5040-PQ0DBQEA8WR Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review
Symbol MC50 - Wireless Enterprise Digital Assistant - 802.11b WLAN, Windows Mobile 2003, 64/64, QWERTY Key1.1 megapixel Color Camera with 3600 mAh battery Includes soft case (Part# 21-67294-01R). Order cradle, cables & power supply separately. See accessories. Formerly listed as (Part# MC50-CQ20)
Enterprise Digital Assistant

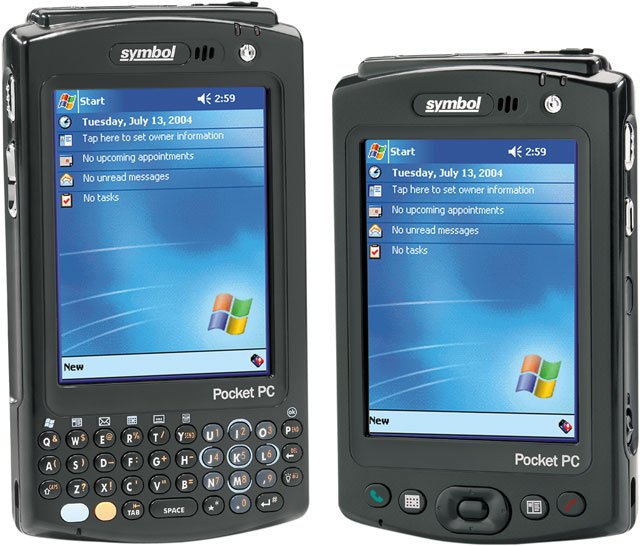

The MC50 from Symbol Technologies is first in a class of mobile computers that combines an enhanced PDA-style form factor with optimal performance to operate enterprise-level applications. This small, lightweight mobile computer features advanced data capture options, flexible voice and data communication and easy wireless local area network (WLAN) synchronization.

Technical Information

  • Connectivity Technology: Wireless
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 36" To Tile Over Concrete

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC5040
  • Product Name: MC5040 Mobile Computer

Physical Characteristics

  • Height: 5.4"
  • Width: 3"
  • Length: 1.1"
  • Weight (Approximate): 8.80 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC5040 Mobile Computer
    • Two Batteries
    • Hand Strap
    • Stylus
    • Softcase
    • MC5040 Mobile Computer
    • Two Batteries
    • Hand Strap
    • Stylus
    • Softcase
  • Certifications & Standards:
    • Electrical Safety:
    • UL60950 (UL Marking)
    • CSA C22.2 No. 60950 (c-UL Marking)
    • EN60950/IEC 950
    • EMI/RFI:
    • EU/International
    • EN 301 489-1 -17
    • EN61000-4-2: 1995, ESD ±8kV Air/ ±4kV Contact
    • EN61000-4-3: 1997, Radiated Immunity 3V/m
    • EN61000-4-4: 1995, EFT ± 0.5kV
    • EN61000-4-5: 1995, Surge ± 0.5kV
    • EN61000-4-6: 1
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
  • Additional Information:
    • CCD Camera:
    • Image Sensor: 1/4 in. Type 1.1 Mega-Pixel CCD
    • Maximum Frame Rate: 7.5 fps
    • Minimum Subject Illumination: 2 lux (at 5 fps)
    • Number of Output Pixels: 1144 (H) x 880 (V)
    • Image Output Interface: UYVY 8-bit
    • Lens F-Number: f2.8

Network & Communication

  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11b
  • Wireless Security:
    • Airbeam Safe (VPN)
    • CCX
    • EAP-TLS
    • FIPS 140-2
    • Kerberos
    • KeyGuard - (SBL TKIP)
    • LEAP
    • PEAP
    • TKIP
    • WEP 128 bit
    • WPA Home (PSK)
    • WPA Enterprise (EAP Authenticated)

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 240 x 320

Memory

  • Flash Memory: 64 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital (SD) Card

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 520 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Number of Keys: 37
  • Keyboard Layout: QWERTY

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 2003 Second Edition

Warranty

  • Limited Warranty: 1 Year

I/O Expansions

  • Expansion Slot Type: SDIO

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model MC50
Operating Temperature 32 F - 155 F
Operating System Windows Mobile 2003 SE for Pocket PC, Windows Mobile
Style Phone-size
RAM Memory 64 MB
Keypad 37
Display Resolution 240 x 320
Processor 520 MHz Intel XScale
Scanner Type No Scanner
Data Collection Type Wireless
Drop Rating 3 ft.0.9 m
