Motorola MC3090S-IC38HBAMER Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review

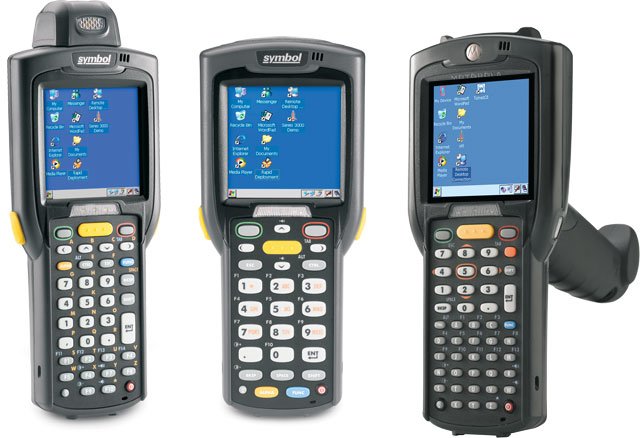

Symbol MC3090 - Wireless Mobile Computer, WLAN 802.11a/b/g, Straight Shooter, 1D/2D Imager, Color-Touch Display, 38 key Keypad, High Capacity Battery, Bluetooth, Audio, 128MB RAM/64MB ROM for OS Storage, English Windows CE 5.0 Pro - No SD Slot. Charging cradle, interface cable, and power supply not included. See accessories.
Delivers 802.11a/b/g capability, improved WLAN Security options and a pistol-grip form factor.

The Symbol MC3090 series builds upon the success of the MC30000 series by delivering 802.11a/b/g capability, improved WLAN Security options, the latest CE .NET operating system and the introduction of a new form factor for this family - the MC3090 G, with integrated trigger handle.The MC3090 features a 320x320 resolution, a standard 1D laser scanner or 2D imager, integrated 28, 38 and 48 key keypads and a 16.2 watt-hours smart Lithium-ion battery. The MC3090 is also rated for toughness - able to withstand 4' drops and over 500 1/2-meter tumbles.The Symbol MC3090 is ideal for both simple retail use and demanding industrial applications.

Technical Information

  • Operating System: Windows CE Professional 5.0
  • Processor: Intel PXA270 XScale 520MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • LEAP
    • PEAP
    • WEP
    • WPA
  • Scanner Type: Imager
  • Symbologies Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • Composite Code
    • Coupon Code
    • DataMatrix
    • Discrete 2 of 5
    • Dutch Kix
    • EAN-3
    • EAN-13
    • EAN-128
    • Interleaved 2 of 5
    • Macro PDF-417
    • Micro PDF-417
    • Macro Micro PDF-417
    • MaxiCode
    • MSI/PLESSEY
    • PDF 417
    • RSS-Expanded
    • RSS-Limited
    • RSS-14
    • TLC39
    • UPC/EAN Supplementals
    • UPC-A
    • UPC-E
    • U.S. Planet
    • Australian 4-State
    • Canadian 4 State
    • Japanese 4-State
    • UK 4-State

General Information

  • Manufacturer:
  • Product Line: Mobile Computer (MC)
  • Product Name: MC3090-S Mobile Computer

Physical Characteristics

  • Display: Color QVGA - Transflective TFT LCD
  • Display Resolution: 320 x 320
  • User Accessible Expansion Slot: SD Card Slot
  • Keyboard: 38 Key Numeric Function Shift Alpha Integrated
  • Battery Capacity: 4400 mAh
  • Battery Type: Lithium Ion
  • Dimensions: 3.18" (81mm) x 7.43" (189mm) x 1.76" (45mm)
  • Weight: 15.1 oz

Environmental Conditions

  • Environmental Sealing: IP54
  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -30°C (-22°F) to 70°C (158°F) Storage
    • 0°C (32°F) to 40°C (104°F) Charging
  • Humidity: 5 to 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Direct Discharge
  • Drop Spec: 4' To Concrete Multiple at -10°C to 50°C
  • Tumble: 500 one-half meter tumbles at room temperature (1000 drops)

Wireless Data Communications

  • Network Connectivity:
    • WLAN 802.11 b/g/a
    • WPAN Bluetooth
  • Maximum RF Data Rate Supported: 54 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 5.825GHz

Other

  • Additional Information: Form Factor: Straight Shooter OS Language: English Communication Options: Audio
  • Package Contents: MC3090-S Mobile Computer Strap/Door Assembly Stylus Regulatory Guide Quick Start Guide

Memory

  • RAM Memory: 128MB
  • Flash Memory: 64MB

Agency Approvals

  • Agency Approvals: RoHS Compliance

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model MC3090
Operating System Windows CE 5.0 Pro
Network Connectivity 802.11g, 802.11a, 802.11a/b/g
RAM Memory 128MB
Style Full-size
Display Resolution 320 x 320
IP Rating IP54
Scanner Type Imager
Data Collection Type Wireless
Drop Rating 4 ft.1.2 m
