Motorola MC3090R-LM28S00KER Mobile Computer
Symbol MC3090 -
Brick Configuration, Windows CE 5 Core OS, 802.11a/b/g Wireless, 28 key, Monochrome Display, Rotating Head Laser Scanner. Order cradle, cables & power supply separately. See accessories.
Share:
Delivers 802.11a/b/g capability, improved WLAN Security options and a pistol-grip form factor.

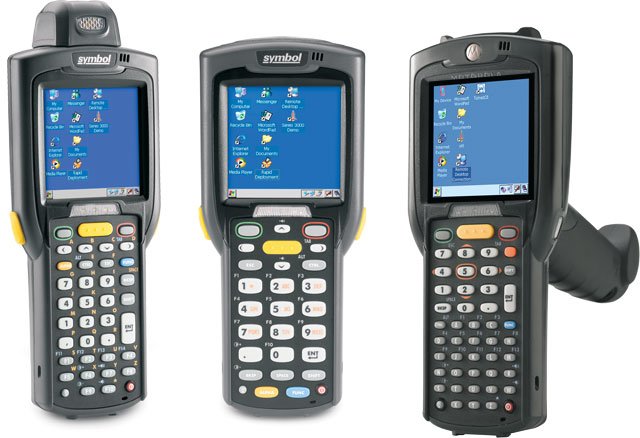

The Symbol MC3090 series builds upon the success of the MC30000 series by delivering 802.11a/b/g capability, improved WLAN Security options, the latest CE .NET operating system and the introduction of a new form factor for this family - the MC3090 G, with integrated trigger handle.The MC3090 features a 320x320 resolution, a standard 1D laser scanner or 2D imager, integrated 28, 38 and 48 key keypads and a 16.2 watt-hours smart Lithium-ion battery. The MC3090 is also rated for toughness - able to withstand 4' drops and over 500 1/2-meter tumbles.The Symbol MC3090 is ideal for both simple retail use and demanding industrial applications.
Technical Information
- Connectivity Technology: Wireless
- Light Source: Laser
- Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
- Drop Specification: 48" To Concrete
- Barcode Symbology Supported:
- Codabar
- Code 11
- Code 39
- Code 93
- Code 128
- Discrete 2 of 5
- EAN-3
- EAN-13
- EAN-128
- Interleaved 2 of 5
- UPC/EAN Supplementals
- UPC-A
- UPC-E
General Information
- Product Type: Handheld Terminal
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MC3090-R
- Product Name: MC3090-R Mobile Computer
Physical Characteristics
- Width: 3.2"
- Depth: 1.6"
- Length: 8.3"
- Weight (Approximate): 13.40 oz
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- MC3090-R Mobile Computer
- Strap/Door Assembly
- Stylus
- Regulatory Guide
- Quick Start G
- MC3090-R Mobile Computer
- Strap/Door Assembly
- Stylus
- Regulatory Guide
- Quick Start G
- Certifications & Standards:
- Electrical Safety:
- UL60950
- CSA C22.2 No. 60950
- EN60950/IEC 950
- EMI/RFI:
- North America:
- FCC Part 2 (SAR)
- FCC Part 15
- RSS210 Class B
- EN 301 489-1
- EN 301 489-17
- Laser Safety:
- IEC Class 2/FDA Class II in accordance with IEC60825-1/EN60825-1
- Additional Information:
- Form Factor: Rotating (Turret) Head
- OS Language: English
Network & Communication
- Wireless LAN: Yes
- Antenna Form Factor: Internal
- Wireless LAN Standard: IEEE 802.11a/b/g
- Wireless Security:
- LEAP
- PEAP
- WPA
- WEP
Memory
- Flash Memory: 32 MB
- Standard Memory: 64 MB
- Memory Card Slot: Yes
- Memory Card Supported: Secure Digital (SD) Card
Display & Graphics
- Display Screen Type: LCD
- Screen Mode: QVGA
- Display Color: Monochrome
- Screen Resolution: 320 x 320
Processor & Chipset
- Processor Manufacturer: Intel
- Processor Speed: 312 MHz
- Processor Type: XScale
Keyboard/Keypad
- Keyboard Type: Alphanumeric
- Number of Keys: 28
Battery Information
- Battery Capacity: 2600 mAh
- Battery Chemistry: Lithium Polymer (Li-Polymer)
Software
- Operating System: Windows CE 5.0 Core
Warranty
- Limited Warranty: 1 Year
Full specifications (PDF)| Brand | Symbol |
| Model | MC3090 |
| RAM Memory | 32 MB |
| Network Connectivity | 802.11g, 802.11a, 802.11a/b/g |
| Operating System | Windows CE 4.2 Core |
| Style | Full-size |
| IP Rating | IP54 |
| Display Resolution | 320 x 320 |
| Scanner Type | Laser |
| Data Collection Type | Wireless |
| Drop Rating | 4 ft.1.2 m |
