Motorola MC1000-KU0LF2K000R Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review
Symbol MC1000 - Batch, Laser, Monochrome non-touch display, Windows CE 5.0 Core, 21 key Numeric Keypad, Lithium-Ion Battery, lanyard, SE950. Charging & data cradle not included. See accessories.
Value-Priced Portable Data Terminal

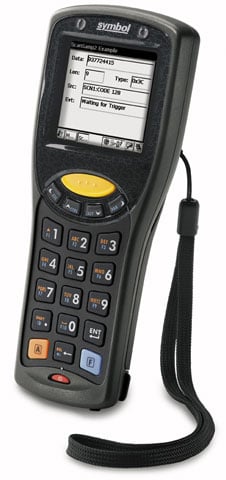

The Symbol MC1000 is a lightweight mobile computer combining barcode scanning with data entry to give users a high-value and cost-effective device. Use the MC1000 to give light industrial and retail locations excellent enterprise mobility, collecting both scanned and manually entered data during inventory, price checks and other data-intensive applications where speed and accuracy are essential. The MC1000 comes with an integrated linear laser scanner, a SD card slot for memory or wireless data transmission cards, the Windows CE operating system and 32 MB of internal memory.

Technical Information

  • Connectivity Technology: Batch
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-10 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification: 48" To Concrete
  • Barcode Symbology Supported:
    • Interleaved 2 of 5 (ITF)
    • RSS-14 Limited
    • RSS-14 Expanded
    • Codabar (NW-7)
    • ITF
    • MSI Plessey
    • IATA 2 of 5
    • Code 39 (standard and full ASCII)
    • Code 93
    • Code 128
    • UPCA
    • UPCE
    • EAN-13 (WPC)
    • EAN-8
    • UPC/EAN supplementals
    • Coupon Code

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC1000
  • Product Name: MC1000 Mobile Computer

Physical Characteristics

  • Height: 6.4"
  • Width: 2.5"
  • Depth: 1.5"
  • Weight (Approximate): 7.23 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC1000 Mobile Computer
    • Battery
    • Wrist Strap
    • Regulatory Guide
    • Quick Start Guide
    • MC1000 Mobile Computer
    • Battery
    • Wrist Strap
    • Regulatory Guide
    • Quick Start Guide
  • Certifications & Standards:
    • Electrical Safety:
    • Certified to UL60950
    • CSA C22.2 No. 60950
    • EN 60950
    • EMI/RFI:
    • CISPR 22 Class B
    • CISPR 24
    • FCC Part 15 Class B
    • EN 55022
    • EN 55024
    • Laser Safety:
    • 21.CFR1040.10 Class II
    • EN 60825
    • IEC 60825 Class 2
  • Additional Information:
    • Country Region: World Wide
    • Sealing Specification: IP54

Display & Graphics

  • Display Screen Type: LCD
  • Screen Size: 2.2"
  • Display Color: Monochrome
  • Screen Resolution: 240 x 240

Memory

  • Flash Memory: 64 MB
  • Standard Memory: 32 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital (SD) Card

Battery Information

  • Battery Capacity: 1800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 312 MHz
  • Processor Type: XScale

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 25

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows CE 5.0

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model MC1000
Style Phone-size
Operating System Windows CE
Operating Temperature 14 F - 122 F
Display Resolution 240 x 240
Keypad 21
Processor 312 MHz Intel XScale
RAM Memory 64 MB
IP Rating IP54
Scanner Type Laser
Data Collection Type Batch
Scanner Capability 1D
Drop Rating 4 ft.1.2 m
