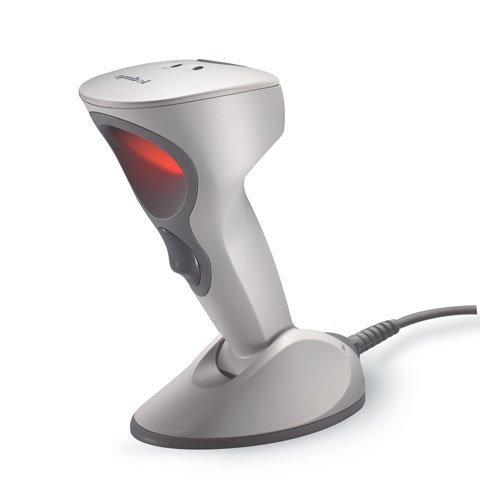

Symbol M2005-I590 Barcode Scanner

Symbol M2005-I590R Barcode Scanner A newer version of this item is available.
It is replaced by the Symbol M2005-I590R Barcode Scanner.
Symbol M2004 Cyclone - scanner with IBM46XX and Synapse interfaces, Color: Black.
  • Perfect for applications that require direct association with a workstation or a notebook
  • Laser scan engine guarantees rapid error free data entry
Read More
Discontinued See Replacement
Add to Quote
Symbol M2004 Cyclone Barcode Scanner Model Overview
A smart investment, Symbol's innovative scanner is future-ready now. The M2004 Cyclone scanner decodes existing, new and emerging barcode symbologies instantly. The Cyclone scanner is packed with features that deliver optimum flexibility including next generation scanning technology. As good looking as it is practical, the Cyclone's sleek design complements any store's decor. Large merchandise or small, single or multiple barcode types, this scanner can handle it all. Revolutionary user-selectable scan pattern versatility plus remarkable ease of use and adaptability make the Adaptive "Cyclone" Scanner Series from Symbol Technologies a standout for barcode scanning at point of sale. All units ship with one product reference guide.
Symbol M2005-I590 Barcode Scanner Overview

The M2005 Cyclone is a smart investment, Symbol innovative new scanner is future ready now. The Cyclone scanner decodes existing, new and emerging bar code symbologies instantly. The Cyclone scanner is packed with features that deliver optimum flexibility including next generation scanning technology. As good looking as it is practical, the Cyclone sleek design complements any store decor. Large merchandise or small, single or multiple bar code types, this scanner can handle it all.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN/JAN
  • Code 128
  • Code 39 Full ASCII
  • MSI/PLESSEY
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • UCC/EAN 128
  • Codabar
  • PDF 417
  • Composite Codes
  • UCC/EAN
  • RSS Code
Light Source:
Laser
Maximum Scan Resolution:
6.60 mil
Depth of Field:
  • 0" - 2"@6mil - Code 39
  • 0" - 5.3"@80% UPC
  • 0.3" - 11"@100% UPC
  • 0.5" - 12"@20mil - Code 39
  • 0" - 4"@6.6mil - PDF417
  • 2.25" - 6.5"@10mil - PDF417
  • 2.5" - 6.75"@10mil - PDF417
  • 5" - 8.5"@15mil - PDF417
Scan Pattern:
  • Single Line
  • Omni-directional
  • Semi Omni-directional
  • 2D Raster
Power Description
Input Voltage:
5.2 V DC
Physical Characteristics
Form Factor:
Handheld
Color:
Black
Weight (Approximate):
12 oz
Miscellaneous
Additional Information:

Supported Interface:

  • IBM 46XX

USB Cable separate

Certifications & Standards:

Electrical Safety:

  • UL 1950
  • CSA C22.2 No. 950 EN60950/IEC950

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA

Laser Safety:

  • CDRH Class ll
  • IEC Class 2

RoHS Compliance

Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol M2005-I590 Barcode Scanner is also known as SYM-M2005I590
