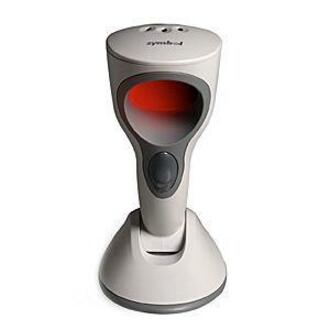

Symbol M2004 Cyclone – Barcode Scanner – 1D

Part Number: M2005-I500
Model: M2004 Cyclone

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  kit. Includes IBM 46xx Feature Card Emulator, with Synapse interface. Cables not included, see accessories.

Symbol M2004 Cyclone Barcode Scanner Model Overview

A smart investment, Symbol's innovative scanner is future-ready now. The M2004 Cyclone scanner decodes existing, new and emerging barcode symbologies instantly. The Cyclone scanner is packed with features that deliver optimum flexibility including next generation scanning technology. As good looking as it is practical, the Cyclone's sleek design complements any store's decor. Large merchandise or small, single or multiple barcode types, this scanner can handle it all. Revolutionary user-selectable scan pattern versatility plus remarkable ease of use and adaptability make the Adaptive "Cyclone" Scanner Series from Symbol Technologies a standout for barcode scanning at point of sale. All units ship with one product reference guide.
Symbol M2005-I500 Barcode Scanner Overview

The M2005 hands-free Bar Code Reader is able to decode current and emerging symbologies, making it an investment that meets current and future scanning needs. It is a device that decodes both one dimensional (1D) and PDF 417 bar codes.Enables operators to use one device even when there are multiple data collection needs such as in retail, healthcare, warehousing and shipping environments.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN/JAN
  • Code 128
  • Code 39 Full ASCII
  • MSI/PLESSEY
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • UCC/EAN 128
  • Codabar
  • PDF 417
  • Composite Codes
  • UCC/EAN
  • RSS Code
Light Source:
Laser
Maximum Scan Resolution:
5.50 mil
Depth of Field:
  • 0" - 4"@6.6mil - PDF417
  • 2.25" - 6.5"@10mil - PDF417
  • 2.5" - 6.75"@10mil - PDF417
  • 5" - 8.5"@15mil - PDF417
  • 0" - 2"@6mil - Code 39
  • 0" - 5.3"@80% UPC
  • 0.3" - 11"@100% UPC
  • 0.5" - 12"@20mil - Code 39
Scan Pattern:
  • 2D Raster
  • Omni-directional
  • Semi Omni-directional
  • Single Line
Interfaces/Ports
Host Interface:
Tailgate
Physical Characteristics
Form Factor:
Desktop
Color:
Black
Height:
7.8"
Width:
3.4"
Depth:
5.4"
Weight (Approximate):
12 oz
Miscellaneous
Additional Information:

Supported Interface:

  • IBM 46XX
  • Certifications & Standards:

    Electrical Safety:

    • Certified to UL 1950
    • CSA C22.2 No. 950 EN60950/IEC950

    EMI/RFI:

    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA

    Laser Safety:

    • CDRH Class ll
    • IEC Class 2
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    UNSPSC: 43211701
