Symbol M2005-I400-0400ZNR Barcode Scanner

Motorola DS9808-LR7NNM01ZR Barcode Scanner A newer version of this item is available.
It is replaced by the Motorola DS9808-LR7NNM01ZR Barcode Scanner.
Symbol M2004 Cyclone - scanner with IBM Port 9B straight cable. RoHS Compliant.
  • Perfect for space-obliged situations
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Read More
Discontinued See Replacement
Add to Quote

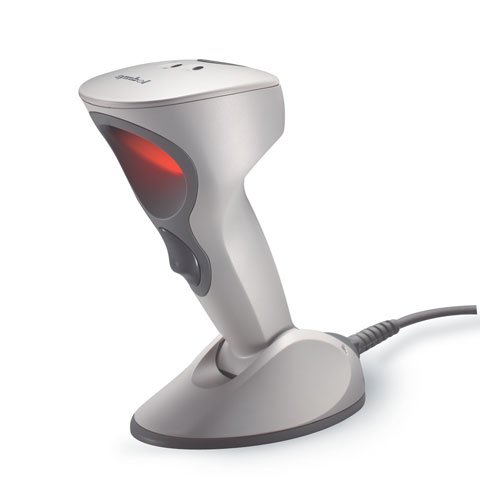

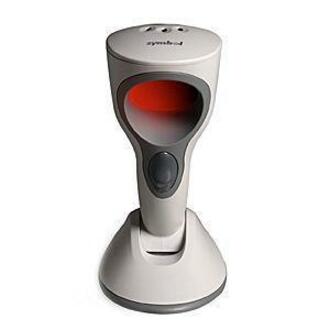

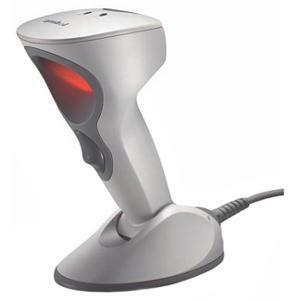

Symbol M2004 Cyclone Barcode Scanner Model Overview
A smart investment, Symbol's innovative scanner is future-ready now. The M2004 Cyclone scanner decodes existing, new and emerging barcode symbologies instantly. The Cyclone scanner is packed with features that deliver optimum flexibility including next generation scanning technology. As good looking as it is practical, the Cyclone's sleek design complements any store's decor. Large merchandise or small, single or multiple barcode types, this scanner can handle it all. Revolutionary user-selectable scan pattern versatility plus remarkable ease of use and adaptability make the Adaptive "Cyclone" Scanner Series from Symbol Technologies a standout for barcode scanning at point of sale. All units ship with one product reference guide.
Symbol M2005-I400-0400ZNR Barcode Scanner Overview

A smart investment, Symbol's innovative new scanner is future-ready now. The Cyclone M2005 Bar Code Scanner decodes existing, new and emerging bar code symbologies instantly. The Cyclone M2005 Bar Code Scanner is packed with features that deliver optimum flexibility including next generation scanning technology. As good looking as it is practical, it's sleek design complements any store's decor. Large merchandise or small, single or multiple bar code types, this scanner can handle it all. Revolutionary user-selectable scan pattern versatility plus remarkable ease of use and adaptability make the Adaptive "Cyclone M2005 Bar Code Scanner" from Symbol Technologies a standout for bar code scanning at point of sale.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN/JAN
  • NW7
  • Code 128
  • Code 39 Full ASCII
  • MSI/PLESSEY
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • UCC/EAN
  • Codabar
  • PDF 417
  • RSS
Light Source:
Laser
Maximum Scan Resolution:
6.60 mil
Depth of Field:
  • 0" - 2"@6mil - Code 39 (Omni Zone)
  • 0" - 5.3"@80% UPC (Omni Zone)
  • 0.3" - 11"@100% UPC (Omni Zone)
  • 0.5" - 12"@20mil - Code 39 (Omni Zone)
Scan Pattern:
  • Single Line
  • 2D Raster
  • Omni-directional
  • Semi Omni-directional
Interfaces/Ports
Host Interface:
Tailgate
Power Description
Input Voltage:
5.2 V DC
Physical Characteristics
Color:
White
Height:
7.8"
Width:
3.4"
Depth:
5.4"
Weight (Approximate):
12 oz
Miscellaneous
Package Contents:
  • Cyclone M2005 Bar Code Reader
  • IBM 468X/9X Port 9B (7ft. Straight) Cable
Additional Information:

Supported Interface:

  • IBM 46XX
  • Compatibility:
    • IBM 468x/469x terminals.
    Certifications & Standards:
    • RoHS Compliant

    Electrical Safety:

    • Certified to UL 1950
    • CSA C22.2 No. 950 EN60950/IEC950

    EMI/RFI:

    • Australian SMA
    • ICES-003 Class B
    • FCC Part 15 Class B
    • European Union EMC Directive

    Laser Safety:

    • IEC Class 2
    • CDRH Class ll
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Symbol M2005-I400-0400ZNR Barcode Scanner is also known as SYM-M2005I4000400ZNR or M2005I4000400ZNR.
