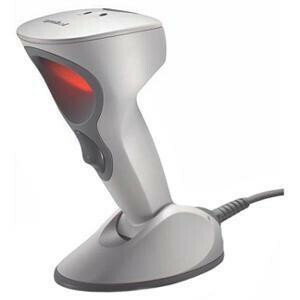

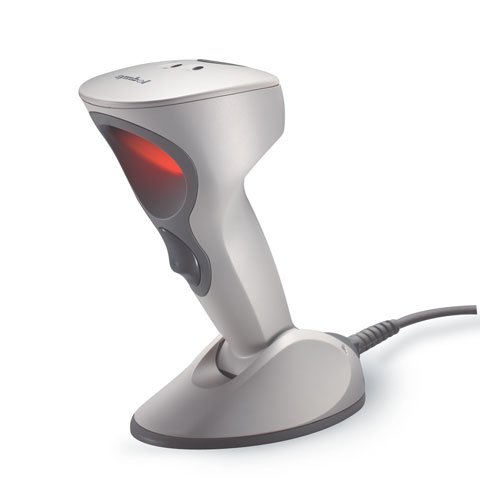

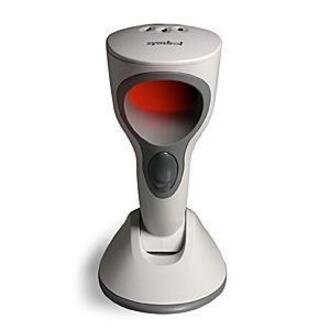

Symbol M2004-I500R Barcode Scanner

A newer version of this item is available.
It is replaced by the Motorola DS9808-SR00007NNWR Barcode Scanner.

Symbol M2004 Cyclone - scanner with RS232 & Synapse interfaces. Includes product reference guide. Order cables & power supply separately. See accessories. Color: black. RoHS Compliant.

Perfect for space-obliged situations
Perfect for applications that require direct association with a workstation or a notebook
Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too

Need a different version? See all Symbol M2004 Cyclone Barcode Scanners

Discontinued See Replacement

Add to Quote

Overview

Full specifications (PDF)

Symbol M2004 Cyclone Barcode Scanner Model Overview

A smart investment, Symbol's innovative scanner is future-ready now. The M2004 Cyclone scanner decodes existing, new and emerging barcode symbologies instantly. The Cyclone scanner is packed with features that deliver optimum flexibility including next generation scanning technology. As good looking as it is practical, the Cyclone's sleek design complements any store's decor. Large merchandise or small, single or multiple barcode types, this scanner can handle it all. Revolutionary user-selectable scan pattern versatility plus remarkable ease of use and adaptability make the Adaptive "Cyclone" Scanner Series from Symbol Technologies a standout for barcode scanning at point of sale. All units ship with one product reference guide.

Symbol M2004-I500R Barcode Scanner Overview

A smart investment, Symbol's innovative new scanner is future-ready now. The Cyclone M2004 Bar Code Reader decodes existing, new and emerging bar code symbologies instantly. The Cyclone M2004 Bar Code Reader is packed with features that deliver optimum flexibility including next generation scanning technology. As good looking as it is practical, it's sleek design complements any store's decor. Large merchandise or small, single or multiple bar code types, this scanner can handle it all. Revolutionary user-selectable scan pattern versatility plus remarkable ease of use and adaptability make the Adaptive "Cyclone M2004 Bar Code Reader" from Symbol Technologies a standout for bar code scanning at point of sale.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

UPC/EAN/JAN
NW7
Code 128
Code 39 Full ASCII
MSI/PLESSEY
Interleaved 2 of 5
Discrete 2 of 5
UCC/EAN
Codabar
PDF 417
RSS

Light Source:

Laser

Maximum Scan Resolution:

6.60 mil

Depth of Field:

0" - 2"@6mil - Code 39 (Omni Zone)
0" - 5.3"@80% UPC (Omni Zone)
0.3" - 11"@100% UPC (Omni Zone)
0.5" - 12"@20mil - Code 39 (Omni Zone)

Scan Pattern:

Linear
2D Raster
Omni-directional
Semi Omni-directional

Interfaces/Ports

Host Interface:

Serial

Power Description

Input Voltage:

5.2 V DC

Physical Characteristics

Color:

Black

Height:

7.8"

Width:

3.4"

Depth:

5.4"

Weight (Approximate):

12 oz

Miscellaneous

Additional Information:

USB Cable separate

Certifications & Standards:

RoHS Compliant

Electrical Safety:

Certified to UL 1950
CSA C22.2 No. 950 EN60950/IEC950

EMI/RFI:

Australian SMA
ICES-003 Class B
FCC Part 15 Class B
European Union EMC Directive

Laser Safety:

IEC Class 2
CDRH Class ll

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

3 Year

Item Numbers

UNSPSC: 43211701

Reviews

Q&A

Accessories

Service Contracts

Get help from a Barcoding Expert!

The Symbol M2004-I500R Barcode Scanner is also known as SYM-M2004I500R or M2004I500R.
