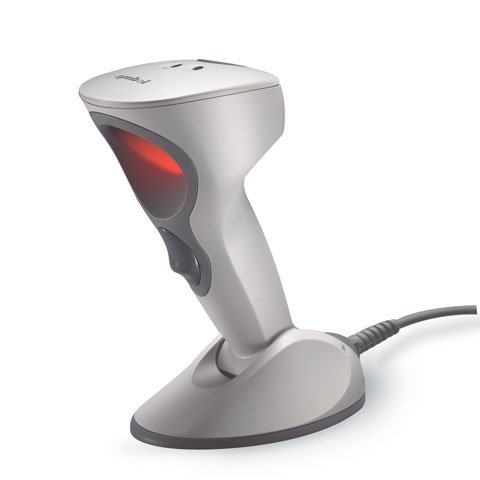

Symbol M2004-I500-0705AN Barcode Scanner

Symbol M2004-I500-0705ANR Barcode Scanner A newer version of this item is available.
It is replaced by the Symbol M2004-I500-0705ANR Barcode Scanner.
Symbol M2004 Cyclone - keyboard wedge kit: Scanner, PS/2 'Y' cable, power supply, & product reference guide. Color: black.
  • Speed up customer's checkout experience
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • Laser scan engine guarantees rapid error free data entry
Read More
Discontinued See Replacement
Add to Quote
Symbol M2004 Cyclone Barcode Scanner Model Overview
A smart investment, Symbol's innovative scanner is future-ready now. The M2004 Cyclone scanner decodes existing, new and emerging barcode symbologies instantly. The Cyclone scanner is packed with features that deliver optimum flexibility including next generation scanning technology. As good looking as it is practical, the Cyclone's sleek design complements any store's decor. Large merchandise or small, single or multiple barcode types, this scanner can handle it all. Revolutionary user-selectable scan pattern versatility plus remarkable ease of use and adaptability make the Adaptive "Cyclone" Scanner Series from Symbol Technologies a standout for barcode scanning at point of sale. All units ship with one product reference guide.
Symbol M2004-I500-0705AN Barcode Scanner Overview

A smart investment, Symbol's innovative new scanner is future-ready now. The Cyclone M2004 Bar Code Reader decodes existing, new and emerging bar code symbologies instantly. The Cyclone M2004 Bar Code Reader is packed with features that deliver optimum flexibility including next generation scanning technology. As good looking as it is practical, it's sleek design complements any store's decor. Large merchandise or small, single or multiple bar code types, this scanner can handle it all. Revolutionary user-selectable scan pattern versatility plus remarkable ease of use and adaptability make the Adaptive "Cyclone M2004 Bar Code Reader" from Symbol Technologies a standout for bar code scanning at point of sale.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN/JAN
  • NW7
  • Code 128
  • Code 39 Full ASCII
  • MSI/PLESSEY
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • UCC/EAN
  • Codabar
  • PDF 417
  • RSS
Light Source:
Laser
Maximum Scan Resolution:
6.60 mil
Depth of Field:
  • 0" - 2"@6mil - Code 39 (Omni Zone)
  • 0" - 5.3"@80% UPC (Omni Zone)
  • 0.3" - 11"@100% UPC (Omni Zone)
  • 0.5" - 12"@20mil - Code 39 (Omni Zone)
  • 0" - 4"@6.6mil - PDF417
  • 2.25" - 6.5"@10mil - PDF417
  • 2.5" - 6.75"@10mil - PDF417
  • LC 35% (Raster Zone)
  • 5" - 8.5"@15mil - PDF417
Scan Pattern:
  • Single Line
  • 2D Raster
  • Omni-directional
  • Semi Omni-directional
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
5.2 V DC
Power Supply Included:
Yes
Physical Characteristics
Color:
Black
Height:
7.8"
Width:
3.4"
Depth:
5.4"
Weight (Approximate):
12 oz
Miscellaneous
Package Contents:
  • Cyclone M2004 Bar Code Reader
  • Synapse Adapter (8 1/2 ft. Coiled) Cable (25-32463-21)
  • Keyboard Wedge IBM PC PS/2 Synapse (STI80-0200)
  • 110VAC Power Supply (50-14000-008)
Additional Information:

USB Cable separate

Platform Supported:
PC
Certifications & Standards:

Electrical Safety:

  • UL 1950
  • CSA C22.2 No. 950 EN60950/IEC950

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA

Laser Safety:

  • CDRH Class ll
  • IEC Class 2
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol M2004-I500-0705AN Barcode Scanner is also known as SYM-M200450705AN or M2004I5000705AN.
