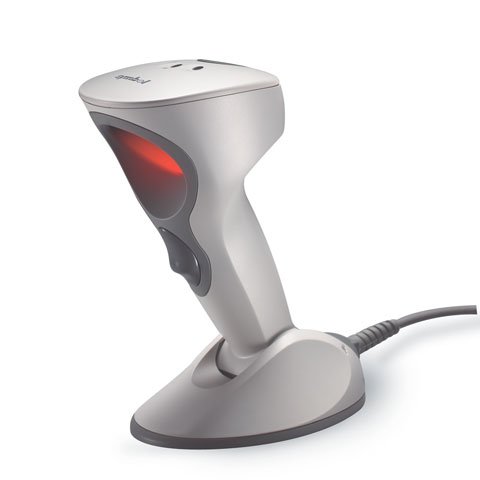

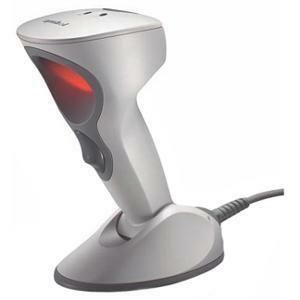

Symbol M2004 Cyclone – Barcode Scanner – 1D

Part Number: M2004-I400-0200AN
Model: M2004 Cyclone

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  RS-232 kit: Scanner, RS-232 cable, power supply, & product reference guide. Color: white.

Symbol M2004 Cyclone Barcode Scanner Model Overview

A smart investment, Symbol's innovative scanner is future-ready now. The M2004 Cyclone scanner decodes existing, new and emerging barcode symbologies instantly. The Cyclone scanner is packed with features that deliver optimum flexibility including next generation scanning technology. As good looking as it is practical, the Cyclone's sleek design complements any store's decor. Large merchandise or small, single or multiple barcode types, this scanner can handle it all. Revolutionary user-selectable scan pattern versatility plus remarkable ease of use and adaptability make the Adaptive "Cyclone" Scanner Series from Symbol Technologies a standout for barcode scanning at point of sale. All units ship with one product reference guide.
Symbol M2004-I400-0200AN Barcode Scanner Overview

A smart investment, Symbol's innovative new scanner is future-ready now. The Cyclone M2004 scanner decodes existing, new and emerging bar code symbologies instantly. The Cyclone scanner is packed with features that deliver optimum flexibility including next generation scanning technology. As good looking as it is practical, the Cyclone's sleek design complements any store's decor. Large merchandise or small, single or multiple bar code types, this scanner can handle it all.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN/JAN
  • NW7
  • Code 128
  • Code 39 Full ASCII
  • MSI/PLESSEY
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • UCC/EAN 128
  • Codabar
  • PDF 417
  • UCC/EAN
  • RSS
Light Source:
Laser
Maximum Scan Resolution:
5.50 mil
Depth of Field:
  • 0" - 2"@6mil - Code 39
  • 0.3" - 11"@100% UPC
  • 0.5" - 12"@20mil - Code 39
Scan Pattern:
  • Single Line
  • Omni-directional
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
110 V AC
Power Supply Included:
Yes
Physical Characteristics
Color:
White
Height:
7.8"
Width:
3.4"
Depth:
5.4"
Weight (Approximate):
12 oz
Miscellaneous
Package Contents:
  • Cyclone M2004 Bar Code Reader
  • RS232 (8 1/2ft. Coiled) Cable w/ 9 Pin Female TxD on 2 (25-32465-21)
  • Power supply 110VAC (50-14000-008)
Additional Information:

USB Cable separate

Certifications & Standards:

Electrical Safety:

  • UL 1950
  • CSA C22.2 No. 950 EN60950/IEC950

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA

Laser Safety:

  • CDRH Class lla
  • IEC Class I
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
