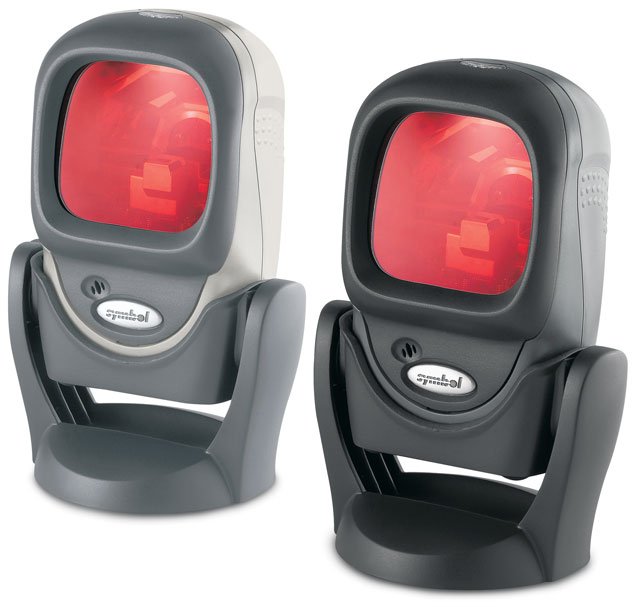

Symbol LS 9208 – Barcode Scanner – 1D

Part Number: LS9208-SR10007CSWR
Model: LS 9208
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Scanner Kit (RoHS, Adjustable Stand, EAS and Quick Reference Guide) - Color: Twilight Black
Explore all Symbol LS 9208 Barcode Scanners
Add to Quote
Symbol LS9208-SR10007CSWR Barcode Scanner
Symbol LS9208-SR10007CSWR Barcode Scanner
Symbol LS9208-SR10007CSWR Barcode Scanner
Symbol LS9208-SR10007CSWR Barcode Scanner Symbol LS9208-SR10007CSWR Barcode Scanner Symbol LS9208-SR10007CSWR Barcode Scanner
Full specifications (PDF)

Symbol LS 9208 Barcode Scanner Model Overview

The Symbol LS 9208 presentation scanner delivers both a high-performance processor and an innovative 100-line rastering omnidirectional scan pattern for increased productivity at checkout, resulting in higher customer satisfaction. Created to be quick and versatile, the LS 9208 offers both omni-directional and single-line scanning to cover any application. The LS 9208 also supports Electronic Article Surveillance (EAS) for added security and convenience. Reads Reduced Space Symbology (RSS). All units feature a 30 month warranty.
Symbol LS9208-SR10007CSWR Barcode Scanner Overview

The LS9208 presentation scanner, from Symbol Technologies, delivers both a high-performance processor and an innovative 100-line rastering omnidirectional scan pattern for increased productivity at checkout, resulting in higher customer satisfaction. It also has Checkpoint Electronic Article Surveillance (EAS) support.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC/EAN/JAN
  • UPC/EAN with Supplementals
  • UCC/EAN 128
  • Code 128
  • ISBT 128
  • Code 39
  • Trioptic Code 39
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • Code 11
  • Codabar
  • MSI
  • RSS Variants
Light Source:
Laser
Scan Rate:
1500 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1" - 2.5"@5mil
  • 0" - 6"@7.8mil
  • 0" - 7.5"@10.4mil
  • 0" - 9"@13mil - 100% UPC/EAN
Scan Pattern:
  • Single Line
  • Omni-directional
Stand Included:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Desktop
Color:
Black
Height:
5.5"
Width:
3.5"
Depth:
3"
Weight (Approximate):
10.20 oz
Miscellaneous
Package Contents:
  • Symbol LS 9208 Bar Code Reader
  • Adjustable Stand
  • Quick Reference Guide
Additional Information:

Supported Interfaces:

  • USB
  • Serial
  • IBM 468X/469X
  • Keyboard Wedge
  • Wand Emulation
  • Synapse

USB Cable separate

Certifications & Standards:
  • RoHS Compliant

Electrical Safety:

  • UL 1950
  • CSA C22.2 No. 950 EN60825

Laser Safety:

  • CDRH Class IIa Laser Product
  • IEC 60825 Class 1 Laser Product

EMC:

  • CISPR B
  • FCC B
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
30 Month
Item Numbers
UNSPSC: 43211701
