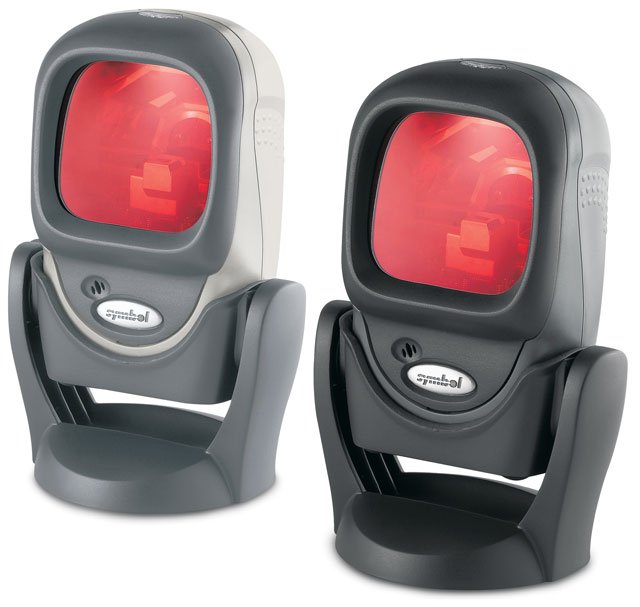

Symbol LS9208-SR10001NSWW Barcode Scanner

Symbol LS9208-SR10001NSWR Barcode Scanner A newer version of this item is available.
It is replaced by the Symbol LS9208-SR10001NSWR Barcode Scanner.
Symbol LS 9208 - Includes stand & product reference guide. Color: white. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).
  • Perfect for space-obliged situations
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Powerful laser scan source provides 1500 scan/s decode rate
  • Scan barcodes with a staggering speed of 1500 scan/s
Read More

Need a different version? See all Symbol LS 9208 Barcode Scanners

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Symbol LS9208-SR10001NSWW Barcode Scanner
Symbol LS9208-SR10001NSWW Barcode Scanner Symbol LS9208-SR10001NSWW Barcode Scanner Symbol LS9208-SR10001NSWW Barcode Scanner
Symbol LS9208-SR10001NSWW Barcode Scanner
Symbol LS9208-SR10001NSWW Barcode Scanner
Symbol LS9208-SR10001NSWW Barcode Scanner
Full specifications (PDF)
Symbol LS 9208 Barcode Scanner Model Overview
The Symbol LS 9208 presentation scanner delivers both a high-performance processor and an innovative 100-line rastering omnidirectional scan pattern for increased productivity at checkout, resulting in higher customer satisfaction. Created to be quick and versatile, the LS 9208 offers both omni-directional and single-line scanning to cover any application. The LS 9208 also supports Electronic Article Surveillance (EAS) for added security and convenience. Reads Reduced Space Symbology (RSS). All units feature a 30 month warranty.
Symbol LS9208-SR10001NSWW Barcode Scanner Overview

The LS 9208 presentation scanner, from Symbol Technologies, delivers both a high-performance processor and an innovative 100-line rastering omnidirectional scan pattern for increased productivity at checkout, resulting in higher customer satisfaction.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC/EAN/JAN
  • UPC/EAN with Supplementals
  • UCC/EAN 128
  • Code 128
  • ISBT 128
  • Code 39
  • Code 39 TriOptic
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • Code 11
  • Codabar
  • MSI
  • RSS Variants
Light Source:
Laser
Scan Rate:
1500 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1" - 2.5"@5mil
  • 0" - 6"@7.8mil
  • 0" - 7.5"@10.4mil
  • 0" - 9"@13mil - 100% UPC/EAN
Scan Pattern:
  • Omni-directional
  • Single Line
Scanning Distance:
9"
Stand Included:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
White
Height:
5.5"
Width:
3.5"
Depth:
3"
Weight (Approximate):
10.20 oz
Miscellaneous
Package Contents:
  • Symbol LS 9208 Bar Code Reader
  • Adjustable Stand
Additional Information:

Supported Interfaces:

  • USB
  • Serial
  • IBM 468X/469X
  • Keyboard Wedge
  • Wand Emulation
  • Synapse

    • Certifications & Standards:

    Electrical Safety:

    • Certified to UL 1950
    • CSA C22.2 No. 950 EN60825

    Laser Safety:

    • CDRH Class IIa Laser Product IEC 60825 Class 1 Laser Product

    EMC:

    • CISPR B
    • FCC B
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Warranty
    Limited Warranty:
    30 Month
    Item Numbers
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Symbol LS9208-SR10001NSWW Barcode Scanner is also known as SYM-LS9208SR11NSWW or LS9208SR10001NSWW.
