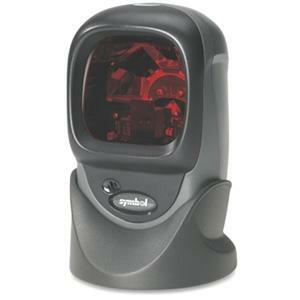

Symbol LS 9203 – Barcode Scanner – 1D

Part Number: LS9203-7NNK0100E
Model: LS 9203

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  keyboard wedge kit: Scanner, stand, 220V Euro Power Supply, 6 ft power port straight PS/2 keyboard wedge cable and product CD. Color: Twilight Black.

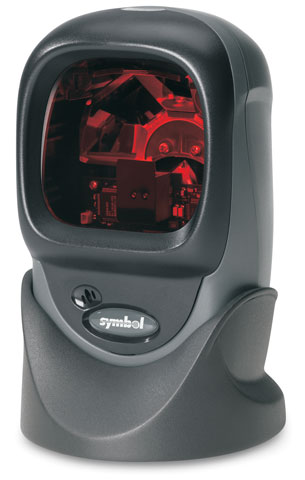

Symbol LS 9203 Barcode Scanner Model Overview

Easy to use, deploy and maintain, the Symbol LS 9203 omnidirectional scanner is an excellent choice, allowing seamless integration of high-tech data capture into any point of sale environment, all at a very affordable price. A 20-line scan pattern makes it easy for employees to scan items without having to twist and turn them to align a scan line. RS232/serial, keyboard wedge and USB connections make it easy to integrate the LS 9203 into any current point of sale application. The small footprint allows placement anywhere, plus a durable construction makes the Symbol LS 9203 an excellent choice for any point of sale environment. See the LS 9208 Scanner for single line/omnidirectional scanning and EAS support.
Symbol LS9203-7NNK0100E Barcode Scanner Overview

The LS9203 Bar Code Reader helps you lower costs by eliminating the errors inherent with manual, paper-based sales and inventory tracking. You increase profitability by reducing pricing mistakes, minimizing shrinkage and providing better visibility into fundamental business processes. The LS9203 is both a handheld and a presentation Bar Code Reader, your employees are able to quickly switch between hands-free and handheld mode to scan bar codes easily, maximizing their productivity.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC/EAN/JAN
  • UPC/EAN with Supplementals
  • UCC/EAN 128
  • Code 128
  • ISBT 128
  • Code 39
  • Trioptic Code 39
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Chinese 2 of 5
  • Code 93
  • Code 11
  • Codabar
  • MSI
  • RSS-14
  • RSS-Limited
  • RSS-Expanded
Light Source:
Laser
Scan Rate:
1500 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 8.5"@13mil - 100% UPC/EAN
Scan Pattern:
Omni-directional
Cable Type Included:
PS/2
Stand Included:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Power Supply Included:
Yes
Physical Characteristics
Form Factor:
Handheld
Color:
Black
Height:
6.1"
Width:
3.9"
Depth:
3.9"
Weight (Approximate):
12.20 oz
Miscellaneous
Package Contents:
  • Symbol LS9203 Bar Code Reader
  • Stand (LS9203-SR10007NSWW)
  • 220V Power Supply (50-14000-009)
  • 6ft Straight Keyboard Wedge PS/2 Cable (Power Port) (25-62417-20)
  • Product CD (SW-72099-01)
Additional Information:

Supported Interfaces:

  • USB
  • Serial
  • Keyboard Wedge
  • Wand Emulation

USB Cable separate

Certifications & Standards:

Electrical safety:

  • UL 1950
  • CSA C22.2 No. 950

Laser safety:

  • CDRH Class IIa
  • IEC 60825 Class 1
  • Note: Class IIa Laser Product. Avoid Long Term Viewing of Direct Laser Light

EMC:

  • CISPR B
  • FCC B
  • EN60825
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
