Symbol LS7808 – Barcode Scanner – 1D

Part Number: LS7808-SR20008SNR
Model: LS7808

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Includes stainless steel bezel, tin oxide glass top and Quick Reference Guide. Color: Black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).

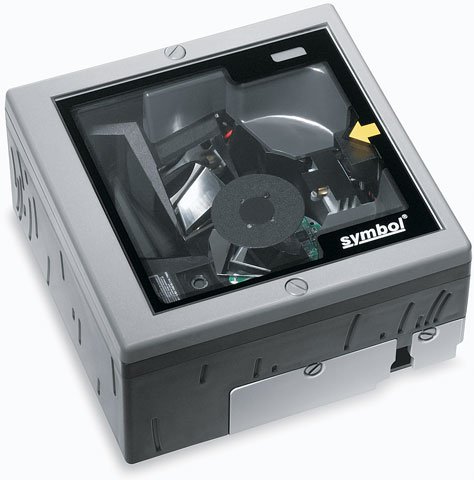

Symbol LS7808 Barcode Scanner Model Overview

The LS7808 is Symbol's new in-counter mini-slot scanner designed to meet the needs of medium to high-traffic retail customers who require an omni-directional, flush mounted scanning solution that reads bar codes quickly and easily and blends into their POS environment. A variety of connection options and an EAS system are standard.
Symbol LS7808-SR20008SNR Barcode Scanner Overview

The advanced LS7808 horizontal mini-slot scanner from Symbol Technologies delivers exceptionally high first-pass read rates for faster checkout times - and better customer service. The omni-directional scan pattern reads the bar code regardless of orientation, eliminating the need to precisely align products to the scanner. The hands-free design and large scan window enable your cashiers to stay focused on your customers, instead of the products they are scanning - enabling high levels of personalized service.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • UPC/EAN Supplementals
  • Code 39
  • Code 39 Full ASCII
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 128
  • UCC/EAN 128
  • ISBT 128
  • Codabar (NW7)
  • Code 93
  • Code 11
  • RSS Variants
  • UPC-E1
Light Source:
Laser
Scan Rate:
1800 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 0.5"@5mil
  • 0" - 4"@7.8mil
  • 0" - 5"@10.4mil
  • 0" - 7"@13mil
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
3.1"
Width:
6"
Depth:
6"
Weight (Approximate):
1.90 lb
Miscellaneous
Package Contents:
  • Symbol LS808 Bar Code Reader
  • Quick Reference Guide
Additional Information:

Supported Interfaces:

  • Serial
  • IBM 468X/469X
  • Keyboard Wedge
  • USB
  • Synapse

USB Cable separate

Certifications & Standards:

Electrical Safety:

  • UL 60950-1
  • CSA C22.2 No. 60950-1
  • EN 60950-1
  • IEC 60950-1

Laser Safety:

  • 21CFR1040.10 Class IIa
  • EN 60825-1
  • IEC60825-1 Class1

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • EN 55022 Class B
  • EN 55024

Environmental:

  • RoHS
  • 2005 Sunrise
  • WEEE
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
