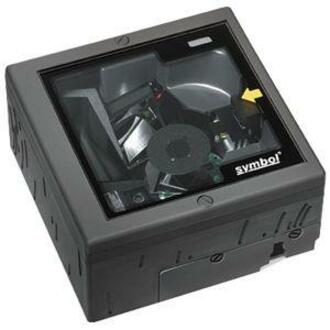

Symbol LS7808-SR20007TCR Barcode Scanner

The Symbol LS7808-SR20007TCR Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Symbol LS7808 - Includes black plastic bezel, tin oxide glass top, EAS antenna and Quick Reference Guide. Color: Black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).
  • Perfect for applications that require direct association with a workstation or a notebook
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Scan barcodes with a staggering speed of 1800 scan/s
Read More

Need a different version? See all Symbol LS7808 Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Symbol LS7808-SR20007TCR Barcode Scanner
Symbol LS7808-SR20007TCR Barcode Scanner Symbol LS7808-SR20007TCR Barcode Scanner Symbol LS7808-SR20007TCR Barcode Scanner
Symbol LS7808-SR20007TCR Barcode Scanner
Symbol LS7808-SR20007TCR Barcode Scanner
Symbol LS7808-SR20007TCR Barcode Scanner
Full specifications (PDF)
Symbol LS7808 Barcode Scanner Model Overview
The LS7808 is Symbol's new in-counter mini-slot scanner designed to meet the needs of medium to high-traffic retail customers who require an omni-directional, flush mounted scanning solution that reads bar codes quickly and easily and blends into their POS environment. A variety of connection options and an EAS system are standard.
Symbol LS7808-SR20007TCR Barcode Scanner Overview

The advanced LS7808 horizontal mini-slot scanner from Symbol Technologies delivers exceptionally high first-pass read rates for faster checkout times - and better customer service. The omni-directional scan pattern reads the bar code regardless of orientation, eliminating the need to precisely align products to the scanner. The hands-free design and large scan window enable your cashiers to stay focused on your customers, instead of the products they are scanning - enabling high levels of personalized service.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • UPC/EAN Supplementals
  • Code 39
  • Code 39 Full ASCII
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 128
  • UCC/EAN 128
  • ISBT 128
  • Codabar (NW7)
  • Code 93
  • Code 11
  • RSS Variants
  • UPC-E1
Light Source:
Laser
Scan Rate:
1800 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 0.5"@5mil
  • 0" - 4"@7.8mil
  • 0" - 5"@10.4mil
  • 0" - 7"@13mil
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Color:
Black
Height:
3.1"
Width:
6"
Depth:
6"
Weight (Approximate):
1.90 lb
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • IBM 468X/469X
  • Keyboard Wedge
  • USB
  • Synapse

    • Item Numbers
    GTIN: 0618286159680, 5052217281760
    UPC: 618286159680
    EAN: 0618286159680, 5052217281760
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Symbol LS7808-SR20007TCR Barcode Scanner is also known as SYM-LS7808SR20007TCR or LS7808SR20007TCR.
