Symbol LS 7708 – Barcode Scanner – 1D

Part Number: LS7708-SR1007ZC
Model: LS 7708
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Includes EAS Antenna. Color: Black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).
Explore all Symbol LS 7708 Barcode Scanners
Add to Quote

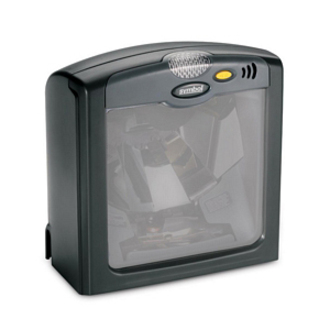

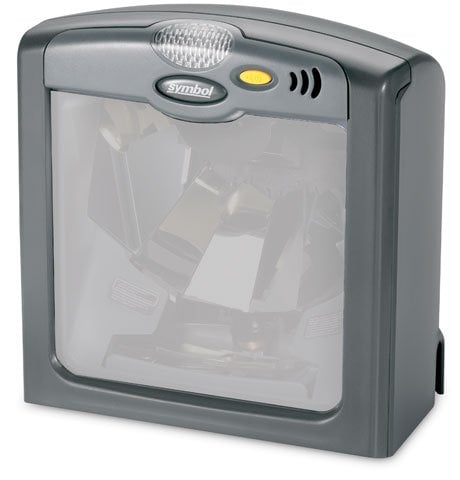

Symbol LS7708-SR1007ZC Barcode Scanner
Symbol LS7708-SR1007ZC Barcode Scanner
Symbol LS7708-SR1007ZC Barcode Scanner Symbol LS7708-SR1007ZC Barcode Scanner
Full specifications (PDF)

Symbol LS 7708 Barcode Scanner Model Overview

The LS 7708 mini-slot scanner is the perfect choice for retailers looking for higher throughput and increased productivity. The on-counter LS 7708 is available for presentation or swipe scanning in an attractive form factor. For fast, accurate merchandise scanning at checkout, this easy-to-use, hands-free scanner requires minimal operator effort. Every feature contributes to increased performance for more efficient, rapid customer checkouts.
Symbol LS7708-SR1007ZC Barcode Scanner Overview

Moving customers through checkout quickly is one of the most important issues faced by retailers today. The LS7708 Bar Code Reader from Symbol is the perfect choice for retailers looking for higher throughput and increased productivity. For fast, accurate merchandise scanning at checkout, this easy-to-use, hands-free scanner requires minimal operator effort. Every feature contributes to increased performance for more efficient, rapid customer checkouts.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC/EAN/JAN
  • UPC/EAN with Supplementals
  • UCC/EAN 128
  • Code 128
  • ISBT 128
  • Code 39
  • Trioptic Code 39
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • Code 11
  • Codabar
  • RSS Variants
Light Source:
Laser
Scan Rate:
2400 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0.5" - 2.5"@5mil
  • 0" - 5"@7.8mil
  • 0" - 7.5"@10.4mil
  • 0" - 10"@13mil
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5.5 V DC
Physical Characteristics
Color:
Black
Height:
6.3"
Width:
6"
Depth:
3.7"
Weight (Approximate):
2 lb
Miscellaneous
Package Contents:
  • Symbol LS 7708 Bar Code Reader
  • Quick Reference Guide
  • EAS Antenna
Additional Information:

Supported Interfaces:

  • USB
  • Serial
  • IBM 468X/469X
  • Keyboard Wedge
  • Synapse

USB Cable separate

Certifications & Standards:

Electrical Safety:

  • UL 1950
  • CSA C22.2 No. 950
  • EN60825

Laser Safety:

  • CDRH Class IIa Laser Product
  • IEC 60825 Class 1 Laser Product

EMC:

  • CISPR B
  • FCC B
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0799665872939
UPC: 799665872939
EAN: 0799665872939
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol LS7708-SR1007ZC Barcode Scanner is also known as SYM-LS7708 or LS7708SR1007ZC.
