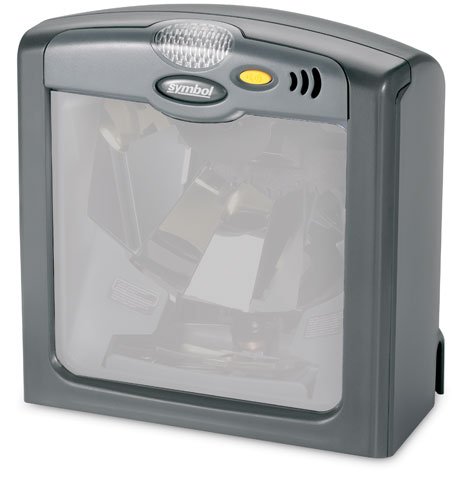

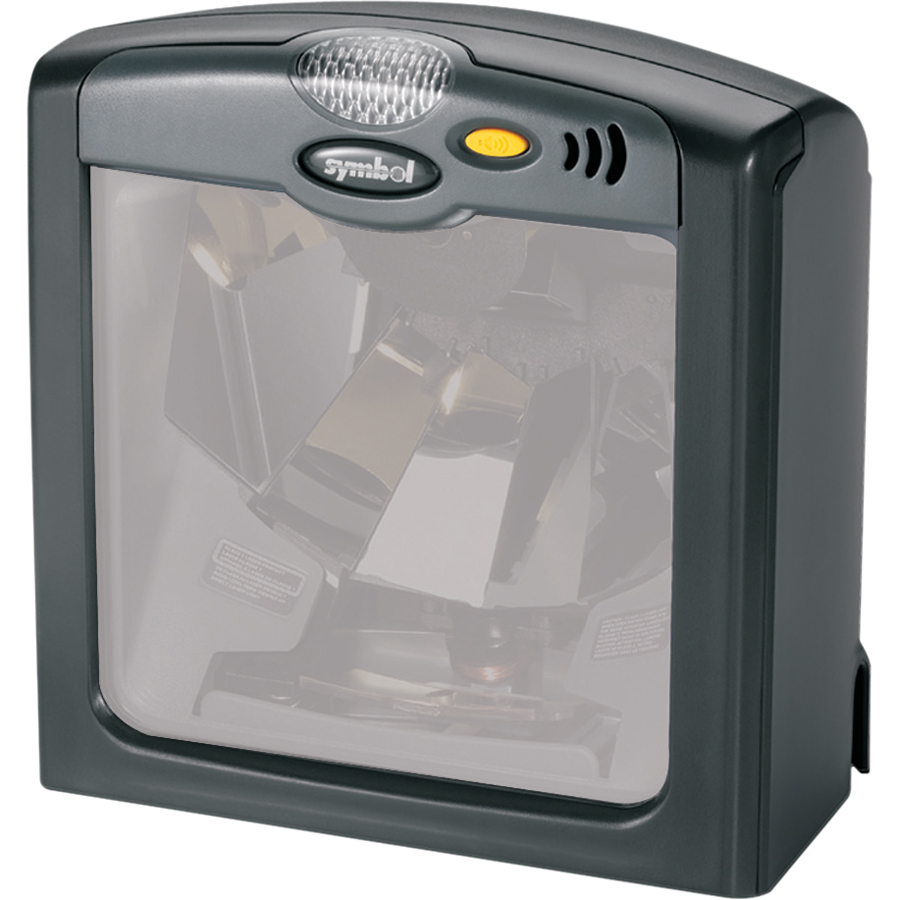

Motorola LS7708-BENU0100Z Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Symbol LS 7708 - USB kit: Includes USB cable and AC line cord, EAS Antenna and no power supply. Color: Black.
Enhance Customer Service with Faster Checkouts

The LS 7708 mini-slot scanner is the perfect choice for retailers looking for higher throughput and increased productivity. The on-counter LS 7708 is available for presentation or swipe scanning in an attractive form factor. For fast, accurate merchandise scanning at checkout, this easy-to-use, hands-free scanner requires minimal operator effort. Every feature contributes to increased performance for more efficient, rapid customer checkouts.

Technical Information

  • Form Factor: Presentation Scanner
  • Resolution: 5 mil(s)
  • Symbologies Supported:
    • UPC/EAN/JAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • Code 128
    • ISBT 128
    • Code 39
    • Trioptic Code 39
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Code 11
    • Codabar
    • RSS Variants
  • Scanner Type: Laser
  • Scan Rate: 2400 Scans/sec
  • Interface Options:
    • USB
    • RS-232
    • IBM 468X/469X
    • Keyboard Wedge
    • Synapse
  • Interface Connectivity: Corded
  • Scan Pattern: Omnidirectional
  • Input Voltage Range: 4.75 to 5.5 V DC
  • Depth of Field:
    • 0.5 - 2.5"@5mils - 38 %
    • 0 - 5"@7.8mils - 60 %
    • 0 - 7.5"@10.4mils - 80 %
    • 0 - 10"@13mils - 100 %

General Information

  • Manufacturer: Symbol
  • Product Name: LS7708 Barcode Scanner

Physical Characteristics

  • Dimensions: 6.3" (160.02mm) x 5.98" (151.89mm) x 3.73" (94.74mm)
  • Weight: 2 lb (0.91 kg) - Scanner only
  • Color: Black

Agency Approvals

  • Agency Approvals:
    • UL 1950
    • CSA C22.2 No. 950
    • EN60825
    • CDRH Class IIa Laser Product
    • IEC 60825 Class 1 Laser Product
    • CISPR B
    • FCC B

Other

  • Package Contents:
    • LS7708 Barcode Scanner
    • Quick Reference Guide
    • USB Cable Series A
    • EAS Antenna
  • Cables Included: USB

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 40°C (104°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 2 Year(s)

Full specifications (PDF)



Customer Review Summary

Recommended Accessories for Model: Symbol LS 7708 Scanner

The Symbol LS7708-BENU0100Z is also known as Symbol Technologies SYM-LS7708BENU0100Z or LS7708BENU0100Z .
