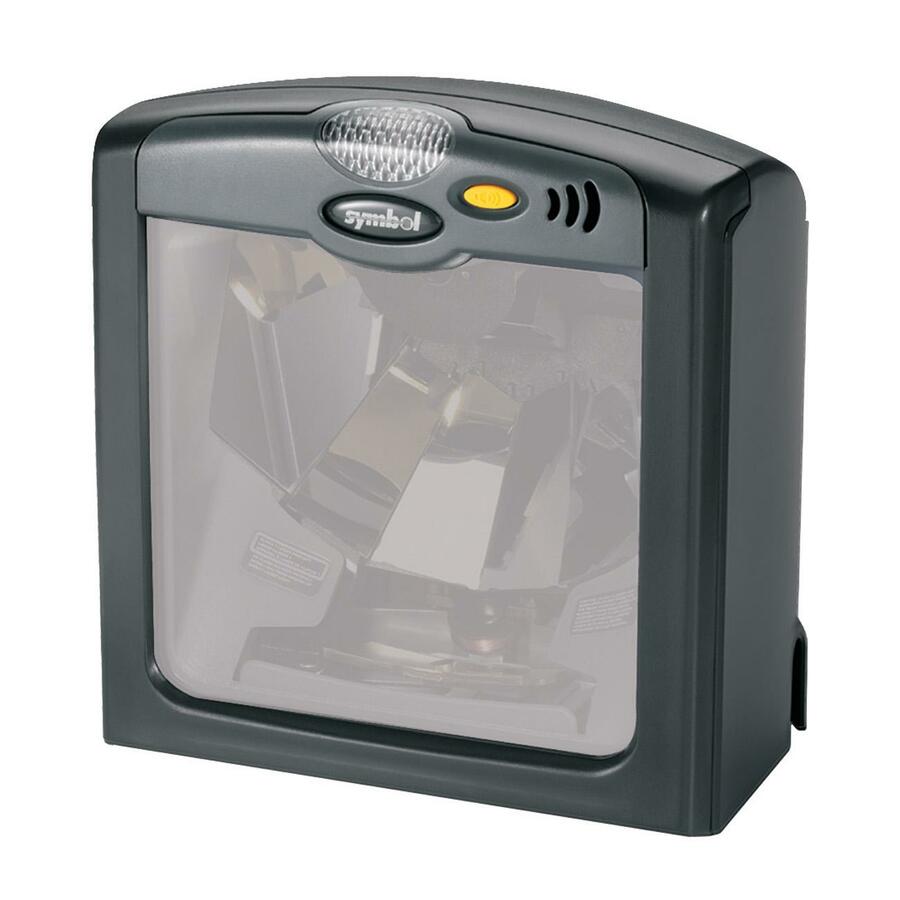

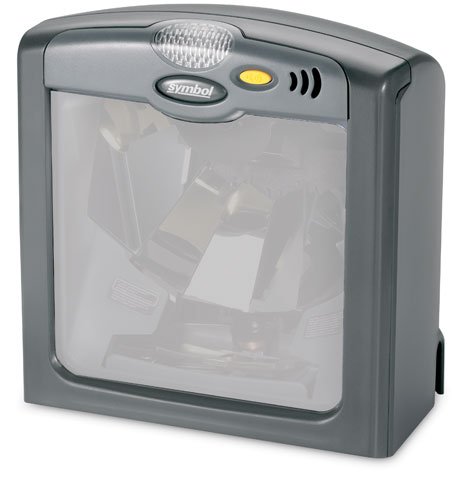

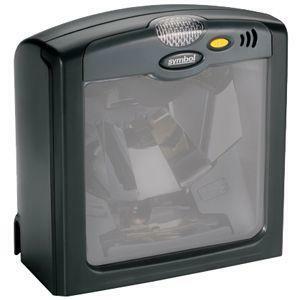

Symbol LS 7708 – Barcode Scanner – 1D

Part Number: LS7708-BENK0100AR

Model: LS 7708

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

Scanner Capability

Product Description:

Keyboard Wedge kit: Includes PS/2 cable, power supply and AC line cord, EAS Antenna. Color: Black. RoHS Compliant.

Explore all Symbol LS 7708 Barcode Scanners

Add to Quote

Symbol LS7708-BENK0100AR Barcode Scanner

Overview

Full specifications (PDF)

Symbol LS 7708 Barcode Scanner Model Overview

The LS 7708 mini-slot scanner is the perfect choice for retailers looking for higher throughput and increased productivity. The on-counter LS 7708 is available for presentation or swipe scanning in an attractive form factor. For fast, accurate merchandise scanning at checkout, this easy-to-use, hands-free scanner requires minimal operator effort. Every feature contributes to increased performance for more efficient, rapid customer checkouts.

Symbol LS7708-BENK0100AR Barcode Scanner Overview

Moving customers through checkout quickly is one of the most important issues faced by retailers today. The LS7708 Bar Code Reader from Symbol is the perfect choice for retailers looking for higher throughput and increased productivity. For fast, accurate merchandise scanning at checkout, this easy-to-use, hands-free scanner requires minimal operator effort. Every feature contributes to increased performance for more efficient, rapid customer checkouts.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Barcode Symbology Supported:

UPC/EAN/JAN
UPC/EAN Supplementals
UCC/EAN 128
Code 128
ISBT 128
Code 39
Code 39 TriOptic
Interleaved 2 of 5
Discrete 2 of 5
Code 93
Code 11
RSS Variants
Codabar

Light Source:

Laser

Scan Rate:

2400 scan/s

Maximum Scan Resolution:

5 mil

Depth of Field:

0.5" - 2.5"@5mil
0" - 5"@7.8mil
0" - 7.5"@10.4mil
0" - 10"@13mil - 100% UPC/EAN

Scan Pattern:

Omni-directional

Cable Type Included:

PS/2

Interfaces/Ports

Host Interface:

Multi-interface

Power Description

Input Voltage:

5.5 V DC

Power Supply Included:

Yes

Physical Characteristics

Form Factor:

Desktop

Color:

Black

Height:

6.3"

Width:

Depth:

3.7"

Weight (Approximate):

2 lb

Miscellaneous

Package Contents:

Symbol LS 7708 Bar Code Reader
EAS Antenna
6' Straight Keyboard Wedge PS/2 Cable
7.5' US Battery Charger
AC Line Cord
120V AC Power Supply

Additional Information:

Supported Interfaces:

USB
Serial
IBM 468X/469X
Keyboard Wedge
Synapse

USB Cable separate

Certifications & Standards:

RoHS Compliance

Electrical Safety:

UL 1950
CSA C22.2 No. 950
EN60825

Laser Safety:

CDRH Class IIa
IEC 60825 Class 1

EMC:

CISPR B
FCC B

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0132017662398

UPC: 132017662398

EAN: 0132017662398

UNSPSC: 43211701

Q&A

Reviews

Service Contracts

Get help from a Barcoding Expert!

The Symbol LS7708-BENK0100AR Barcode Scanner is also known as SYM-LS7708BENK0100AR or LS7708BENK0100AR.
