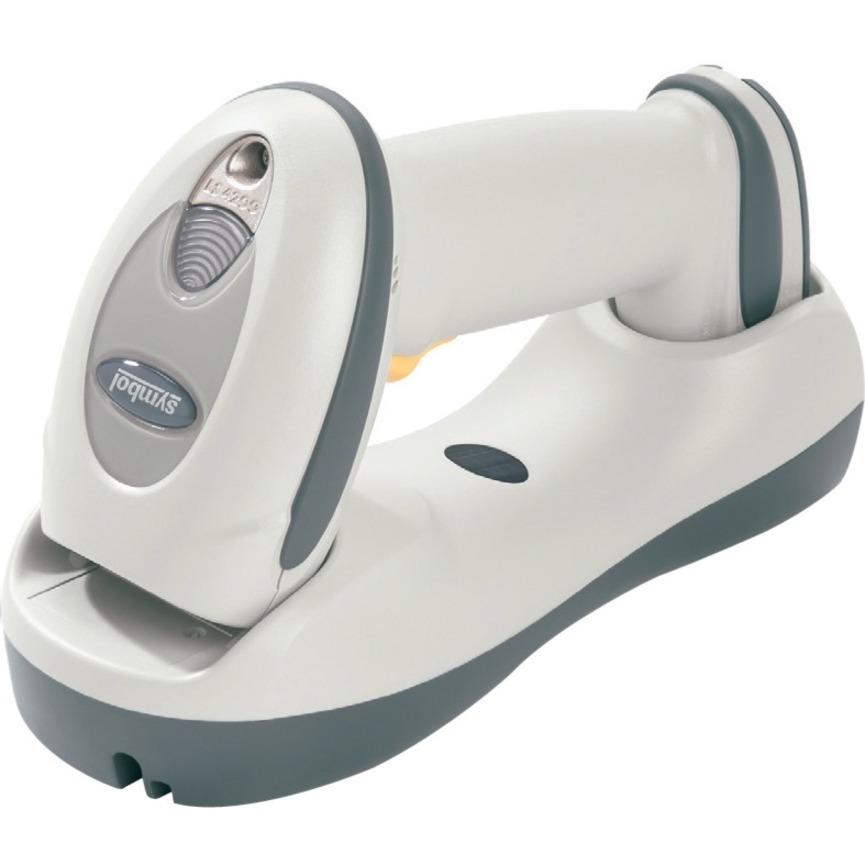

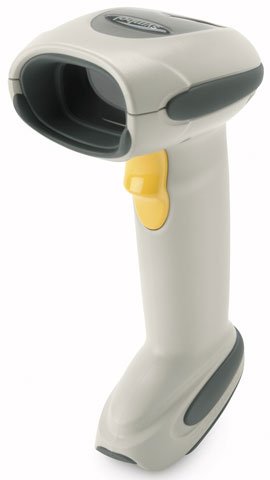

Symbol LS 4278 – Barcode Scanner – Cordless – 1D

Part Number: LS4278-TRWM0400ZWW
Model: LS 4278
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Connectivity
Cordless
Scanner Capability
1D
Scanner Type
Laser

Product Description:

  IBM 468x/9x Kit. 1D Laser, Cordless Charging Cradle, Color: White
Explore all Symbol LS 4278 Barcode Scanners
Add to Quote
Symbol LS4278-TRWM0400ZWW Barcode Scanner
Symbol LS4278-TRWM0400ZWW Barcode Scanner
Symbol LS4278-TRWM0400ZWW Barcode Scanner
Symbol LS4278-TRWM0400ZWW Barcode Scanner Symbol LS4278-TRWM0400ZWW Barcode Scanner Symbol LS4278-TRWM0400ZWW Barcode Scanner
Full specifications (PDF)

Symbol LS 4278 Barcode Scanner Model Overview

The Symbol LS 4278 helps users increase productivity and cut costs while providing free movement throughout the workspace. Its unique array of productivity-enhancing features allow novice and advanced users to process items more rapidly and spend less time keying in data. The addition of Bluetooth wireless communications provides workers with the cordless freedom to move to large bulky items for scanning instead of risking injury from lifting heavy objects plus the ability to physically check all sides of a shopping cart for unscanned items. The LS 4278 communicates via Bluetooth to the cradle, which in turn connects to the host computer via a variety of connection interfaces, including USB, keyboard wedge and RS-232.
Symbol LS4278-TRWM0400ZWW Barcode Scanner Overview

Symbol's cordless LS4278 Bar Code Reader provides superior bar code scanning in a durable future-proof device that delivers an outstanding total cost of ownership. The LS4278 Bar Code Reader is designed to deliver exceptional scanning performance. Users can scan objects at any angle the innovative multi-line rastering scan pattern eliminates the need for exact aim and positioning of the scanner. The laser line moves vertically during scanning, allowing accurate capture of even the smallest, stacked and poorly printed bar codes on the first scan. And with superior motion tolerance, users no longer need pause between scans, further increasing productivity. Its has multi-interface on cradle.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Barcode Symbology Supported:
  • UPC/EAN Supplementals
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • RSS Variants
  • UCC/EAN 128
  • Code 128
  • Code 128 Full ASCII
  • Code 93
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • MSI
  • IATA
  • Code 32
  • Bookland EAN
  • Codabar (NW1)
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1.5" - 5.5"@5mil - Code 39
  • 0" - 19"@13mil - 100% UPC/EAN
  • 0" - 14"@10mil - Code 39
  • 0" - 29"@20mil - Code 39
Scan Pattern:
Omni-directional
Scanning Distance:
50 ft
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
12 V DC
Battery Information
Number of Batteries Supported:
3
Battery Size Supported:
AAA
Battery Chemistry:
Nickel Metal Hydride (NiMH)
Physical Characteristics
Form Factor:
Handheld
Color:
White
Height:
7.3"
Width:
2.7"
Depth:
3.9"
Weight (Approximate):
8.40 oz
Miscellaneous
Package Contents:
  • LS4278 Bar Code Reader
  • 7ft straight IBM 468x/9x Port 5 Cable
  • Cradle
Additional Information:

Interface Option:

  • IBM 468X/469X

    • Certifications & Standards:

    Electrical Safety:

    • UL1950
    • CSA C22.2 No.950
    • EN60950/IEC950

    Laser Safety:

    • CDRH Class II
    • IEC Class 2

    EMI/RFI:

    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA

    Radio:

    • IEEE 802.11
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    UNSPSC: 43211701
