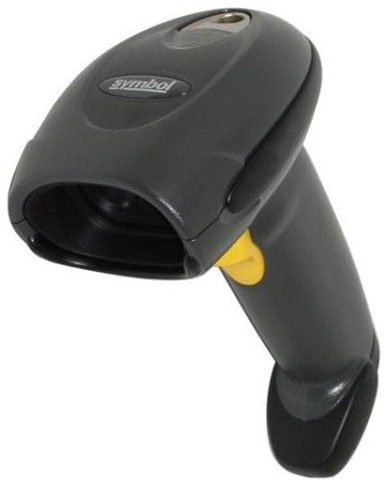

Symbol LS 4278 - Kit includes: Bluetooth, PoweredUSB and 7 ft. Straight Cable. Color: Black. Call to purchase.
Increase productivity and uptime with innovative scanning capabilities

The Symbol LS 4278 helps users increase productivity and cut costs while providing free movement throughout the workspace. Its unique array of productivity-enhancing features allow novice and advanced users to process items more rapidly and spend less time keying in data. The addition of Bluetooth wireless communications provides workers with the cordless freedom to move to large bulky items for scanning instead of risking injury from lifting heavy objects plus the ability to physically check all sides of a shopping cart for unscanned items. The LS 4278 communicates via Bluetooth to the cradle, which in turn connects to the host computer via a variety of connection interfaces, including USB, Keyboard wedge and RS-232.

Technical Information

  • Form Factor: Handheld Scanner
  • Symbologies Supported:
    • UPC/EAN Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • IATA
    • Code 32
    • Bookland EAN
    • Codabar (NW1)
  • Scanner Type: Laser
  • Scan Rate: 200 decodes / sec
  • Interface Options:
    • USB
    • Bluetooth
  • Interface Connectivity: Cordless
  • Cordless Range: 50ft
  • Scan Pattern: Omnidirectional
  • Input Voltage:
    • 5 V DC - Cradle (External Power, Charging / Non Charging)
    • 5 V DC - Cradle (Host Power, Charging / Non Charging)
    • 12 V DC - Cradle (External Power, Through Cable)
    • 12 V DC - Cradle (Host Power, Through Cable)
  • Depth of Field:
    • 1.5 - 5.5"@5mils - Code 39
    • 0 - 19"@13mils - 100% UPC/EAN
    • 0 - 14"@10mils - Code 39
    • 0 - 29"@20mils - Code 39
  • Battery Capacity: 720 mAh

General Information

  • Manufacturer: Symbol
  • Product Name: LS4278 Barcode Scanner

Physical Characteristics

  • Dimensions:
    • 7.3" (185.42mm) x 2.7" (68.58mm) x 3.85" (97.79mm) - Scanner
    • 2.0" (50.8mm) x 3.4" (86.36mm) x 8.35" (212.09mm) - Cradle
  • Weight:
    • 238 g - Scanner
    • 183 g - Cradle
  • Color: Black

Agency Approvals

  • Agency Approvals:
    • UL1950
    • CSA C22.2 No.950
    • EN60950/IEC950
    • CDRH Class II
    • IEC Class 2
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • IEEE 802.11

Other

  • Package Contents:
    • LS4278 Barcode Scanner
    • 7ft straight USB Power Plus Connector Cable
    • Cradle
  • Cables Included: USB

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 3 Year(s)

Full specifications (PDF)
