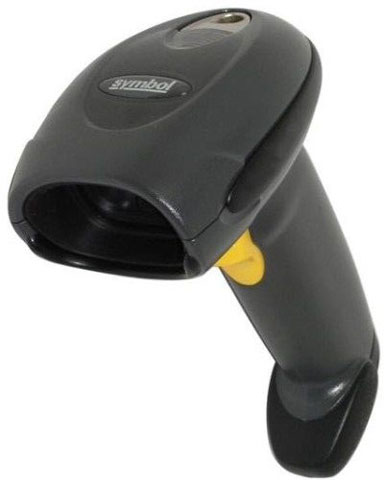

Symbol LS 4278 – Barcode Scanner – Cordless – 1D

Part Number: LS4278-TRBK0100ZWR
Model: LS 4278
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Cordless
Form Factor
Handheld
Interface Options
PS/2 Keyboard Wedge
Scanner Capability
1D

Product Description:

  Keyboard wedge kit with 7ft straight PS/2 cable. Includes radio and charging cradle. Color: black. RoHS Compliant. AC line cord not included, see (Part# PWRS-14000-253R).
Explore all Symbol LS 4278 Barcode Scanners
Add to Quote
Symbol LS4278-TRBK0100ZWR Barcode Scanner
Symbol LS4278-TRBK0100ZWR Barcode Scanner
Symbol LS4278-TRBK0100ZWR Barcode Scanner
Symbol LS4278-TRBK0100ZWR Barcode Scanner Symbol LS4278-TRBK0100ZWR Barcode Scanner Symbol LS4278-TRBK0100ZWR Barcode Scanner
Full specifications (PDF)

Symbol LS 4278 Barcode Scanner Model Overview

The Symbol LS 4278 helps users increase productivity and cut costs while providing free movement throughout the workspace. Its unique array of productivity-enhancing features allow novice and advanced users to process items more rapidly and spend less time keying in data. The addition of Bluetooth wireless communications provides workers with the cordless freedom to move to large bulky items for scanning instead of risking injury from lifting heavy objects plus the ability to physically check all sides of a shopping cart for unscanned items. The LS 4278 communicates via Bluetooth to the cradle, which in turn connects to the host computer via a variety of connection interfaces, including USB, keyboard wedge and RS-232.
Symbol LS4278-TRBK0100ZWR Barcode Scanner Overview

Symbol's cordless LS4278 provides superior bar code scanning in a durable future-proof device that delivers an outstanding total cost of ownership. Workers can move within a 50 ft/15m radius to scan items and the elimination of hazardous cables creates a safer work environment.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Barcode Symbology Supported:
  • UPC/EAN with Supplementals
  • Code 39
  • Code 39 Full ASCII
  • Trioptic Code 39
  • RSS Variants
  • UCC/EAN 128
  • Code 128
  • Code 128 Full ASCII
  • Code 93
  • Codabar (NW1)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • MSI
  • Code ll
  • IATA
  • Bookland EAN
  • Code 32
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1.5" - 5.5"@5mil - Code 39
  • 0" - 19"@13mil - 100% UPC/EAN
  • 0" - 14"@10mil - Code 39
  • 0" - 29"@20mil - Code 39
Scan Pattern:
2D Raster
Scanning Distance:
50 ft
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Battery Information
Number of Batteries Supported:
3
Battery Size Supported:
AAA
Battery Chemistry:
Nickel Metal Hydride (NiMH)
Physical Characteristics
Color:
Black
Height:
7.3"
Width:
2.7"
Depth:
3.9"
Weight (Approximate):
8.40 oz
Miscellaneous
Package Contents:
  • LS4278 Bar Code Reader
  • 7ft. PS/2 Straight Cable
Additional Information:

Supported Interfaces:

  • Serial
  • IBM 468X/469X
  • Keyboard Wedge
  • USB
  • Wand Emulation

USB Cable separate

Certifications & Standards:
  • RoHS

Electrical Safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

Laser Safety:

  • CDRH Class II
  • IEC Class 2

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA

Radio:

  • Bluetooth Class 2 Version 1.2
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0853585492452, 5052461126282
UPC: 853585492452
EAN: 0853585492452, 5052461126282
UNSPSC: 43211701
