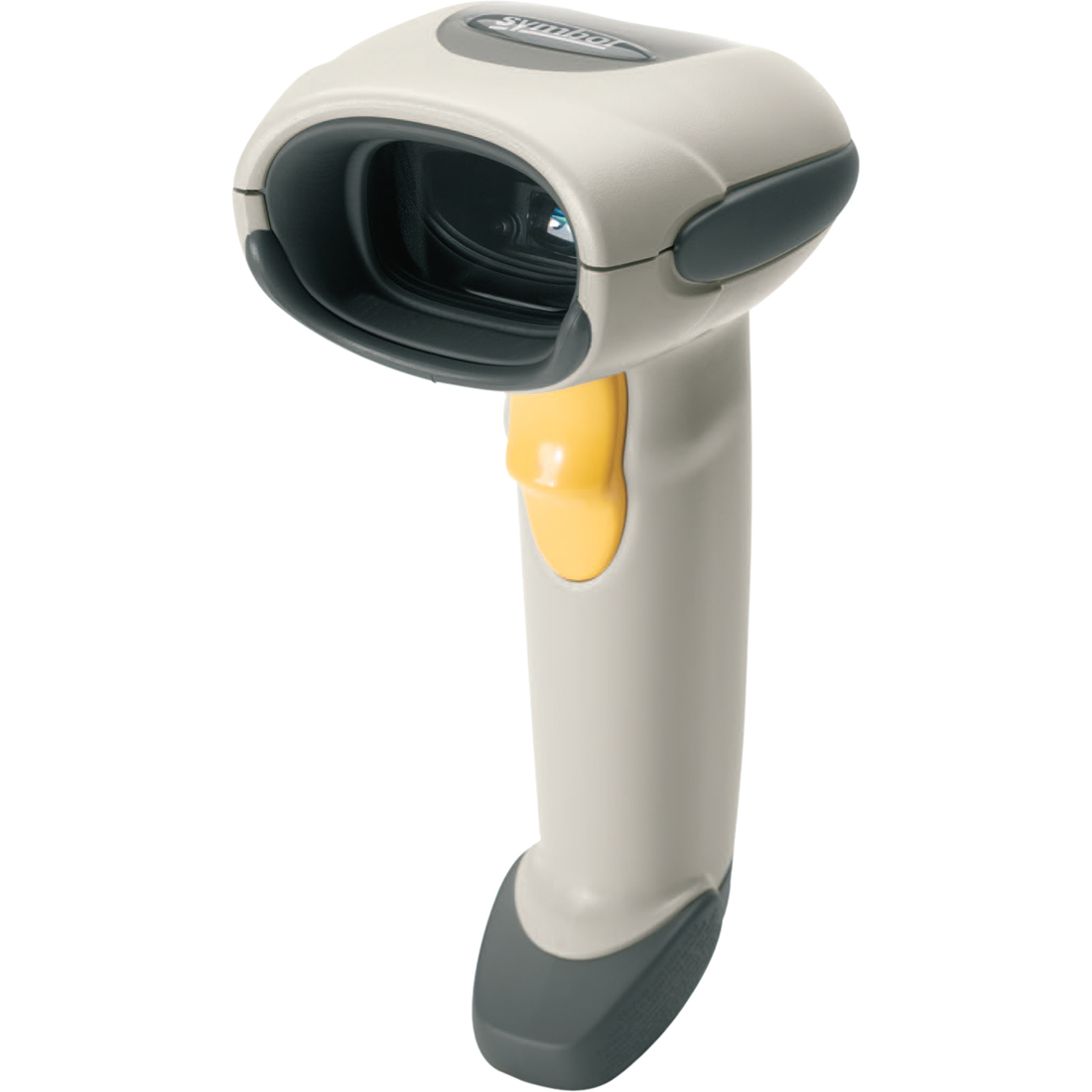

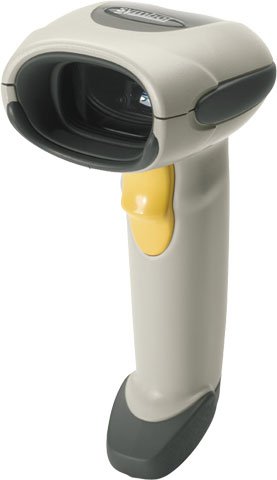

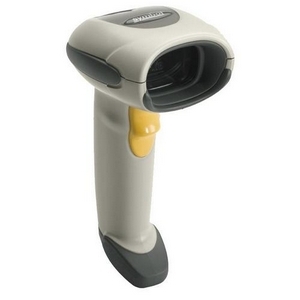

Symbol LS4208-SWZR0200AR Barcode Scanner

The Symbol LS4208-SWZR0200AR Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Symbol LS4208 - RS-232 Serial Kit, 1D Laser. Includes Coiled RS-232 cable and power supply. Color: White
  • Minimizes your manual entry and provides reliable scanning in a durable form factor
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Read More
Discontinued Need Assistance?
Add to Quote
Symbol LS4208 Barcode Scanner Model Overview
The LS4208 is the next generation of Symbol's best selling LS4000 laser scanner series. Designed to increase efficiencies in scan-intensive operations, the LS4208 laser handheld scanner accelerates throughput with productivity-enhancing features never before delivered by a single scanner. It offers continuous, one-pass scanning, allowing novice and advanced users alike to process more items more rapidly and spend less time keying in data. With its innovative multi-line rastering scan pattern, the Symbol LS4208 enables the quick and accurate scanning of all types of one-dimensional (1D) symbologies, including damaged symbols and stacked reduced space symbology (RSS) barcodes. It also provides a wide working range and superior motion tolerance to increase scanning flexibility and performance. Choose from a variety of interfaces, including USB, RS232 and Keyboard Wedge.
Symbol LS4208-SWZR0200AR Barcode Scanner Overview

LS4208 handheld laser scanner accelerates throughput with breakthrough productivity-enhancing features, including continuous one-pass scanning. It also offers features not found in other available scanners: innovative multi-line raster scan pattern, wide working range and superior motion tolerance. It rapidly scans all types of one-dimensional (1D) bar codes, including damaged symbols or stacked symbology (RSS) bar codes. It minimizes the need for manual data entry as well

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC/EAN with Supplementals
  • Code 39
  • Code 39 Full ASCII
  • Trioptic Code 39
  • RSS Variants
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1.5" - 5.5"@5mil - Code 39
  • 0" - 19"@13mil - 100% UPC/EAN
  • 0" - 14"@10mil - Code 39
  • 0" - 29"@20mil - Code 39
Scan Pattern:
Multi Line
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
5 V DC
Power Supply Included:
Yes
Physical Characteristics
Color:
White
Height:
6.7"
Width:
2.7"
Depth:
3.7"
Weight (Approximate):
6.40 oz
Miscellaneous
Package Contents:
  • LS 4208 Bar Code Reader
  • 9 Feet Long Coiled Cable
  • 110V Power Supply
  • DB9F
Additional Information:

USB Cable separate

Certifications & Standards:

Electrical Safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

Laser Safety:

  • CDRH Class II
  • RoHS
  • IEC Class 2

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0777785772186, 0805903372465, 0853585483726
UPC: 777785772186, 805903372465, 853585483726
EAN: 0777785772186, 0805903372465, 0853585483726
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol LS4208-SWZR0200AR Barcode Scanner is also known as LS4208SWZR0200AR
