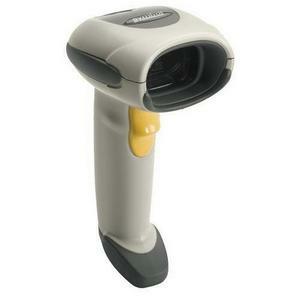

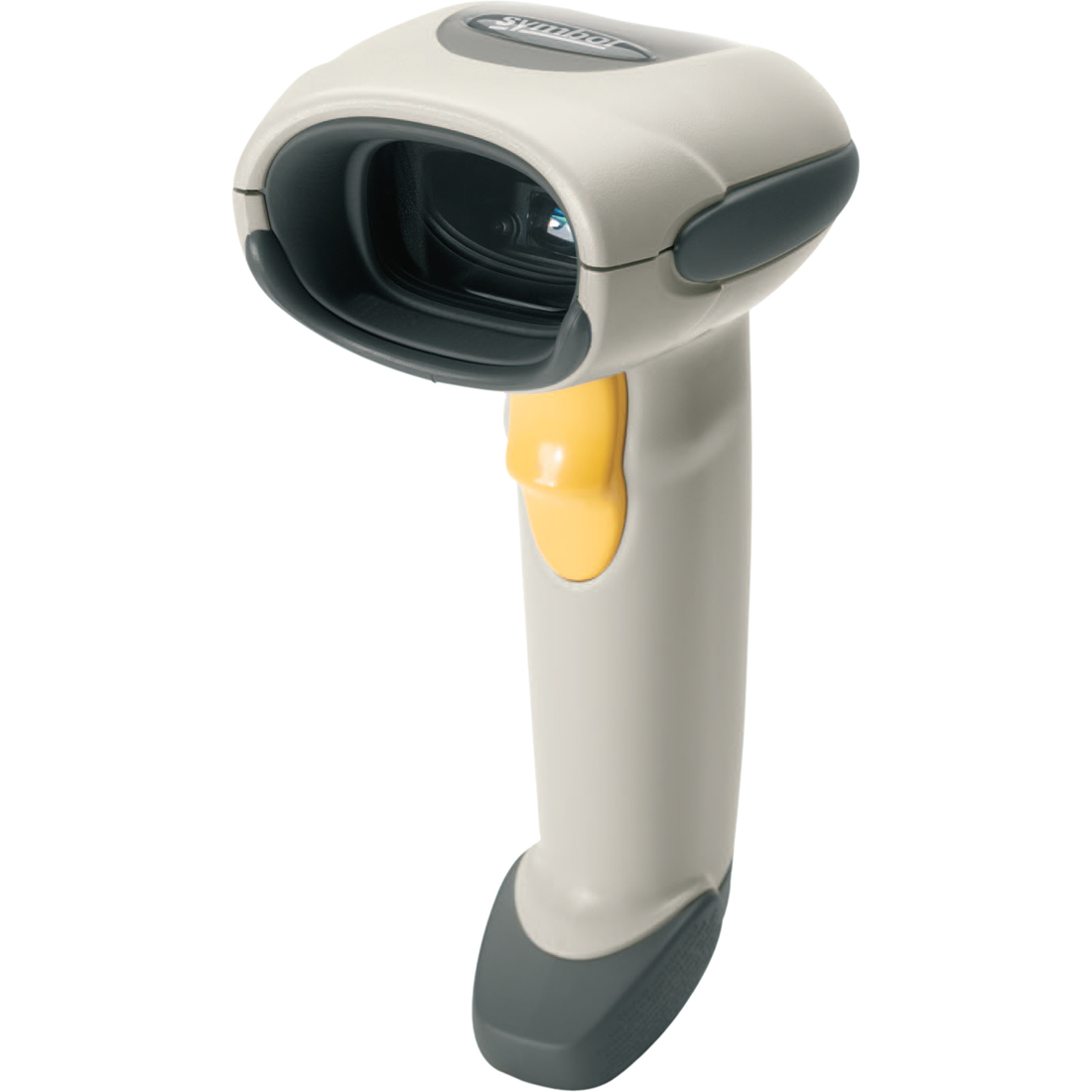

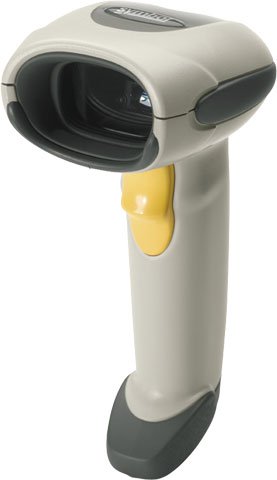

Symbol LS4208-SBZU1200ZR Barcode Scanner

The Symbol LS4208-SBZU1200ZR Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

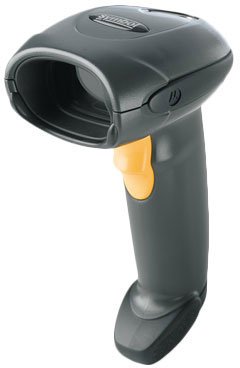

Symbol LS4208 - USB Kit, 1D Laser. Includes 9' Coiled USB Cable. Color: Black
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Read More
Discontinued Need Assistance?
Add to Quote
Symbol LS4208 Barcode Scanner Model Overview
The LS4208 is the next generation of Symbol's best selling LS4000 laser scanner series. Designed to increase efficiencies in scan-intensive operations, the LS4208 laser handheld scanner accelerates throughput with productivity-enhancing features never before delivered by a single scanner. It offers continuous, one-pass scanning, allowing novice and advanced users alike to process more items more rapidly and spend less time keying in data. With its innovative multi-line rastering scan pattern, the Symbol LS4208 enables the quick and accurate scanning of all types of one-dimensional (1D) symbologies, including damaged symbols and stacked reduced space symbology (RSS) barcodes. It also provides a wide working range and superior motion tolerance to increase scanning flexibility and performance. Choose from a variety of interfaces, including USB, RS232 and Keyboard Wedge.
Symbol LS4208-SBZU1200ZR Barcode Scanner Overview

With Symbol's LS4208 handheld laser bar code reader, you are able to effortlessly speed throughput, even with bar codes in poor condition. Wherever you need to quickly capture and process data such as at the retail checkout counter, in pharmacies and hospitals, and in light warehouse environments this ergonomically designed scanner helps you increase accuracy, improve productivity, cut maintenance costs and reduce the risk of downtime.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC/EAN Supplementals
  • Code 39
  • Code 39 Full ASCII
  • Trioptic Code 39
  • RSS Variants
  • UCC/EAN 128
  • Code 128
  • Code 128 Full ASCII
  • Code 93
  • Codabar (NW1)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • MSI
  • Code ll
  • IATA
  • Bookland EAN
  • Code 32
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1.5" - 5.5"@5mil - Code 39
  • 0" - 14"@10mil - Code 39
  • 0" - 19"@13mil - 100% UPC/EAN
  • 0" - 29"@20mil - Code 39
Scan Pattern:
2D Raster
Interfaces/Ports
Host Interface:
USB
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Black
Height:
6.7"
Width:
2.7"
Depth:
3.7"
Weight (Approximate):
6.40 oz
Miscellaneous
Package Contents:
  • Symbol LS 4208 Bar Code Reader
  • 9ft. USB Type A Coiled Cable
Additional Information:

Supported Interfaces:

  • Serial
  • IBM 468X/469X
  • Keyboard Wedge
  • USB

USB Cable separate

Certifications & Standards:
  • RoHS Compliant

Electrical safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

Laser safety:

  • CDRH Class II
  • IEC Class 2

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0804904098473, 0853585464329, 5711045207938
UPC: 804904098473, 853585464329
EAN: 0804904098473, 0853585464329, 5711045207938
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol LS4208-SBZU1200ZR Barcode Scanner is also known as SYM-LS4208SBZU1200ZR or LS4208SBZU1200ZR.
