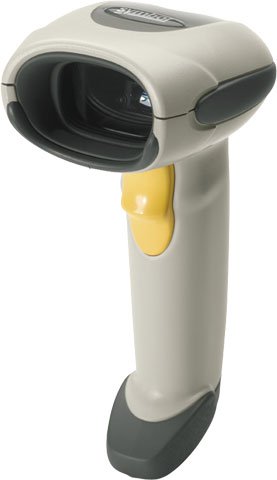

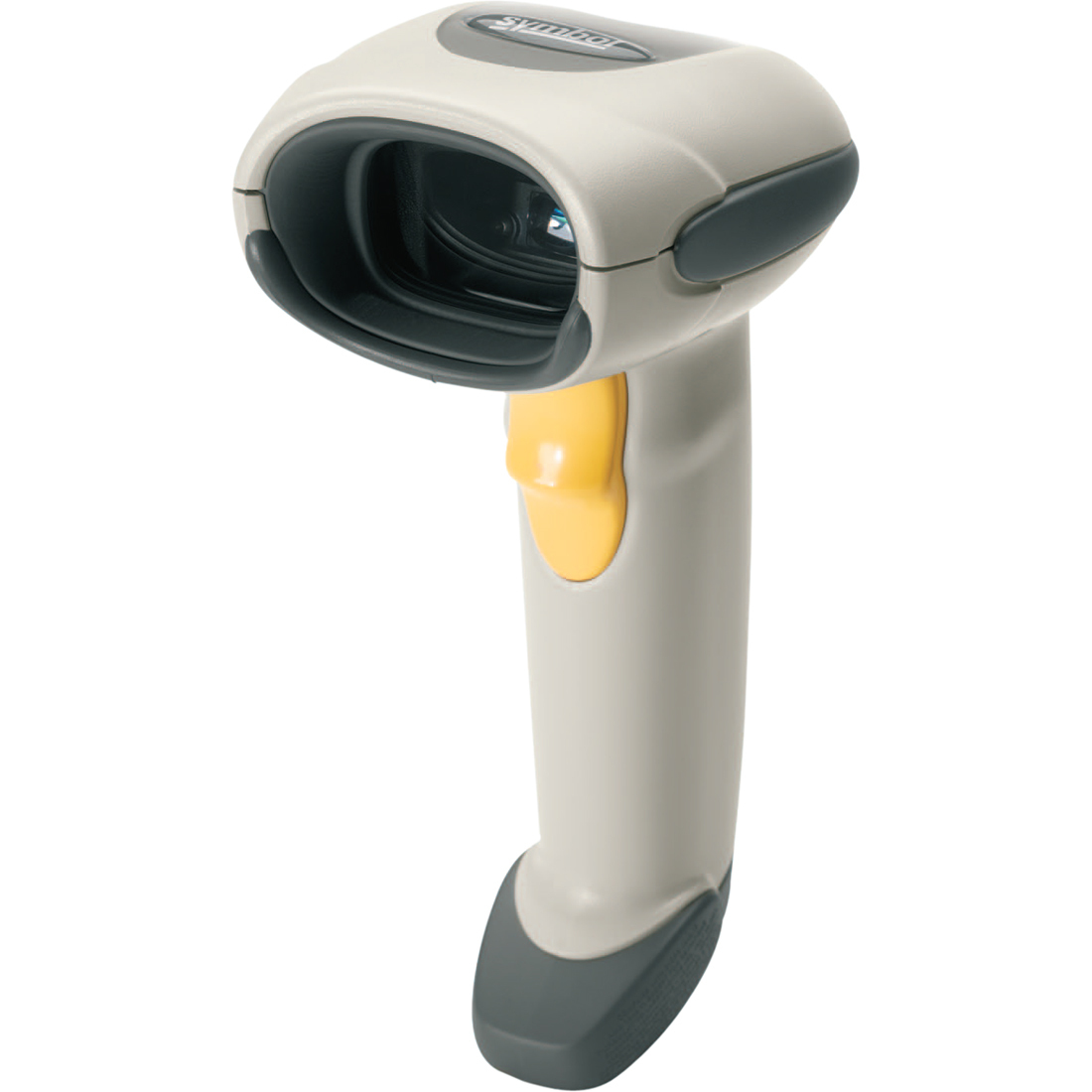

Motorola LS4208-SBZU0100ZR Barcode Scanner
The LS4208 is the next generation of Symbol's best selling LS4000 laser scanner series. Designed to increase efficiencies in scan-intensive operations, the LS4208 laser handheld scanner accelerates throughput with productivity-enhancing features never before delivered by a single scanner. It offers continuous, one-pass scanning, allowing novice and advanced users alike to process more items more rapidly and spend less time keying in data. With its innovative multi-line rastering scan pattern, the Symbol LS4208 enables the quick and accurate scanning of all types of one-dimensional (1D) symbologies, including damaged symbols and stacked reduced space symbology (RSS) barcodes. It also provides a wide working range and superior motion tolerance to increase scanning flexibility and performance. Choose from a variety of interfaces, including USB, RS-232 and Keyboard wedge.
Technical Information
- Barcode Dimension: 1D
- Scan Pattern: 2D Raster
- Connectivity Technology: Cable
- Light Source: Laser
- Barcode Symbology Supported:
- UPC/EAN Supplementals
- Code 39
- Code 39 Full ASCII
- Trioptic Code 39
- RSS Variants
- UCC/EAN 128
- Code 128
- Code 128 Full ASCII
- Code 93
- Codabar (NW1)
- Interleaved 2 of 5
- Discrete 2 of 5
- MSI
- Code ll
- IATA
- Bookland EAN
- Code 32
- UPC/EAN Supplementals
- Code 39
- Code 39 Full ASCII
- Trioptic Code 39
- RSS Variants
- UCC/EAN 128
- Code 128
- Code 128 Full ASCII
- Code 93
- Codabar (NW1)
- Interleaved 2 of 5
- Discrete 2 of 5
- MSI
- Code ll
- IATA
- Bookland EAN
- Code 32
- Maximum Scan Resolution: 5 mil
- Depth of Field:
- 1.50" - 5.50"@5 mil - Code 39
- 0 mil - 14"@10 mil - Code 39
- 0 mil - 19"@13 mil - 100% UPC/EAN
- 0 mil - 29"@20 mil - Code 39
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: LS4208
- Product Name: Symbol LS4208 Handheld Barcode Scanner
- Product Line: Symbol
Physical Characteristics
- Height: 6.7"
- Width: 2.7"
- Depth: 3.7"
- Color: Black
- Weight (Approximate): 6.40 oz
Interfaces/Ports
- Host Interface: USB
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- Symbol LS 4208 Barcode Reader
- 7ft USB Type A Straight Cable
- Symbol LS 4208 Barcode Reader
- 7ft USB Type A Straight Cable
- Certifications & Standards:
- RoHS
- Electrical safety:
- UL1950
- CSA C22.2 No. 950
- EN60950/IEC950
- Laser safety:
- CDRH Class II
- IEC Class 2
- EMI/RFI:
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Australian SMA
- Additional Information:
- Supported Interfaces:
- SerialIBM 468X/469XKeyboard WedgeUSBWand Emulation
Warranty
- Limited Warranty: 5 Year
Power Description
- Input Voltage: 5 V DC
Full specifications (PDF)| Brand | Symbol |
| Model | LS4208 |
| Scanner Capability | 1D |
| Included Cables | USB |
| Connectivity | Corded |
| Connection | USB |
| Scanner Type | Laser |
| Form Factor | Handheld |
| Color | Black |
| Scan Pattern | Single Line |
| Ruggedness | General Purpose |
|
