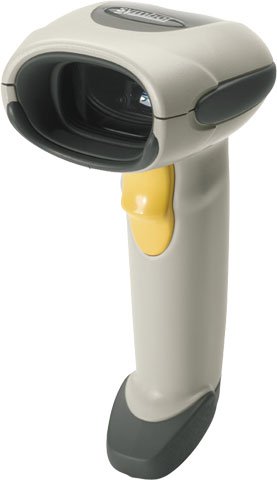

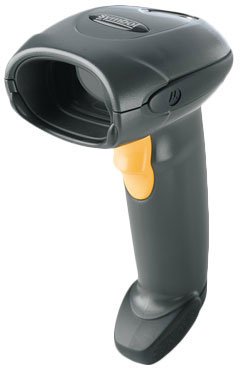

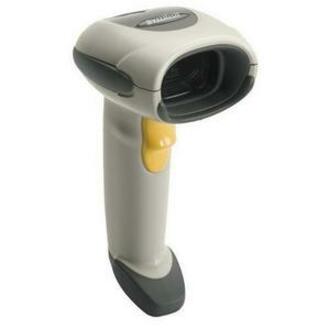

Motorola LS4208-SBZR0100AR Barcode Scanner


4.5

(2 reviews)

Symbol LS4208 - RS-232 Serial Kit, 1D Laser. Includes RS-232 Serial cable and power supply. Color: Black
Durable construction for all day, everyday usage.

The LS4208 is the next generation of Symbol's best selling LS4000 laser scanner series. Designed to increase efficiencies in scan-intensive operations, the LS4208 laser handheld scanner accelerates throughput with productivity-enhancing features never before delivered by a single scanner. It offers continuous, one-pass scanning, allowing novice and advanced users alike to process more items more rapidly and spend less time keying in data. With its innovative multi-line rastering scan pattern, the Symbol LS4208 enables the quick and accurate scanning of all types of one-dimensional (1D) symbologies, including damaged symbols and stacked reduced space symbology (RSS) barcodes. It also provides a wide working range and superior motion tolerance to increase scanning flexibility and performance. Choose from a variety of interfaces, including USB, RS-232 and Keyboard wedge.

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Multi Line
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • RSS
    • UPC/EAN Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Code ll
    • IATA
    • Bookland EAN
    • Code 32
    • RSS
    • UPC/EAN Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Code ll
    • IATA
    • Bookland EAN
    • Code 32
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 1.50" - 5.50"@5 mil - Code 39
    • 0 mil - 19"@13 mil - 100% UPC/EAN
    • 0 mil - 14"@10 mil - Code 39
    • 0 mil - 29"@20 mil - Code 39

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS4208
  • Product Name: Symbol LS 4208 Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 6.7"
  • Width: 2.7"
  • Depth: 3.7"
  • Color: Black
  • Weight (Approximate): 6.38 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Symbol LS 4208 Barcode Reader
    • 110 Power Supply
    • 7ft. RS-232 Straight Cable
    • Symbol LS 4208 Barcode Reader
    • 110 Power Supply
    • 7ft. RS-232 Straight Cable
  • Certifications & Standards:
    • RoHS Compliance
    • Electrical Safety:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • Laser Safety:
    • CDRH Class II
    • IEC Class 2
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model LS4208
Scanner Capability 1D
Connectivity Corded
Scanner Type Laser
Color Black
Scan Pattern Single Line
Connection RS-232 Serial
Form Factor Handheld
Included Cables RS-232 Serial
Ruggedness General Purpose


Customer Review Summary


4.5

(based on 2 reviews)

Ratings Distribution

  • 5 Stars



    (1)

  • 4 Stars



    (1)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

100%

of respondents would recommend this to a friend.

Reviewed by 2 customers

Sort by

Displaying reviews 1-2

Back to top


5.0

Best product of it's kind.

By Bill Potter

from Grants Pass, OR

10/17/2014

Verified Buyer

Pros

Cons

Best Uses

  • Automation

Comments about Symbol LS4208 LS4208-SBZR0100AR:

This is the best laser barcode reader ever made. It reads even poorly printed barcodes without errors. It has a great warranty, but you'll never need it. It was in stock and delivered within a couple of days.


4.0

Classic and Great

By IT Manager

from Mansfield, OH

11/8/2012

Verified Buyer

Pros

  • Size
  • Weight
  • life span

Cons

  • Not Wireless
  • Not waterproof

Best Uses

  • Anywhere

Comments about Symbol LS4208 LS4208-SBZR0100AR:

We have been using the 4208 in our Optical Lab for many years. The Symbol/Motorola barcode scanners have been very good scanners. We will continue to use the LS-line of scanners for years to come.

Displaying reviews 1-2

Back to top

Recommended Accessories for Model: Symbol LS4208 Scanner
Motorola Cable (CBA-U01-S07ZAR)
USB Cable, 7 ft. (2m) Straight, Series A Connector.
In Stock: Ships Same Day


5.0

(1 reviews)

$25.40
+ Add to Quote
Symbol Cable (CBA-U12-C09ZAR)
9 feet, USB, Dark gray, Maximum, Coiled
In Stock: Ships Same Day
$28.20
+ Add to Quote
Symbol Cable (CBA-U09-C15ZAR)
15', Coiled, standard USB cable, Series A.
In Stock: Ships Same Day
$79.10
+ Add to Quote
Symbol (11-66553-06R)
Wall mount bracket for several Motorola DS and LS barcode scanners. Color: Gray.
In Stock: Ships Same Day
$28.20
+ Add to Quote
Symbol Cable (CBA-U10-S15ZAR)
USB Series A connector, 15 ft, Straight
In Stock: Ships Same Day
$37.70
+ Add to Quote

The Symbol LS4208-SBZR0100AR is also known as Symbol Technologies SYM-LS4208SBZR0100AR or LS4208SBZR0100AR .
