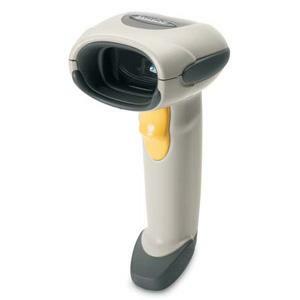

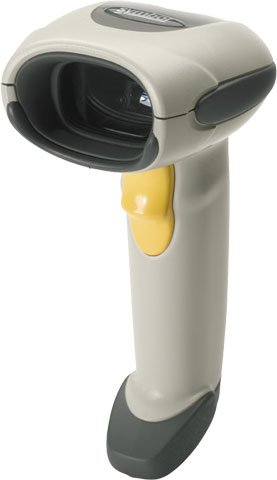

Motorola LS4208-PR20001ZZR Barcode Scanners


0.0

(No reviews)

Be the first to

Write a Review
Symbol LS4208 - SCANNER ONLY, 1D Laser, PDF417 decoding capability. Cables and accessories must be purchased separately. Color: White. For the full kit purchase (Part# LS4208-PWZU0100ZR).
$244.70
In Stock:
Ships Same Day
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:
Durable construction for all day, everyday usage.

The LS4208 is the next generation of Symbol's best selling LS4000 laser scanner series. Designed to increase efficiencies in scan-intensive operations, the LS4208 laser handheld scanner accelerates throughput with productivity-enhancing features never before delivered by a single scanner. It offers continuous, one-pass scanning, allowing novice and advanced users alike to process more items more rapidly and spend less time keying in data. With its innovative multi-line rastering scan pattern, the Symbol LS4208 enables the quick and accurate scanning of all types of one-dimensional (1D) symbologies, including damaged symbols and stacked reduced space symbology (RSS) barcodes. It also provides a wide working range and superior motion tolerance to increase scanning flexibility and performance. Choose from a variety of interfaces, including USB, RS-232 and Keyboard wedge.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: 2D Raster
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Code ll
    • IATA
    • Bookland EAN
    • Code 32
    • PDF 417
    • Micro PDF
    • Composite Codes
    • UPC/EAN Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Code ll
    • IATA
    • Bookland EAN
    • Code 32
    • PDF 417
    • Micro PDF
    • Composite Codes
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 1.50" - 5.50"@5 mil - Code 39
    • 0 mil - 14"@10 mil - Code 39
    • 0 mil - 19"@13 mil - 100% UPC/EAN
    • 0 mil - 29"@20 mil - Code 39

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS4208
  • Product Name: Symbol LS 4208 Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 6.7"
  • Width: 2.7"
  • Depth: 3.7"
  • Color: White
  • Weight (Approximate): 6.40 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Certifications & Standards:
    • Electrical safety:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • Laser safety:
    • CDRH Class II
    • IEC Class 2
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • IBM 468X/469X
    • Keyboard Wedge
    • USB
    • Wand Emulation

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model LS4208
Scanner Type Laser
Scanner Capability 1D
Connectivity Corded
Form Factor Handheld
Color White
Included Cables Scanner Only - No Cable
Ruggedness General Purpose
