Motorola LS3578-FZBR0100UR Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review

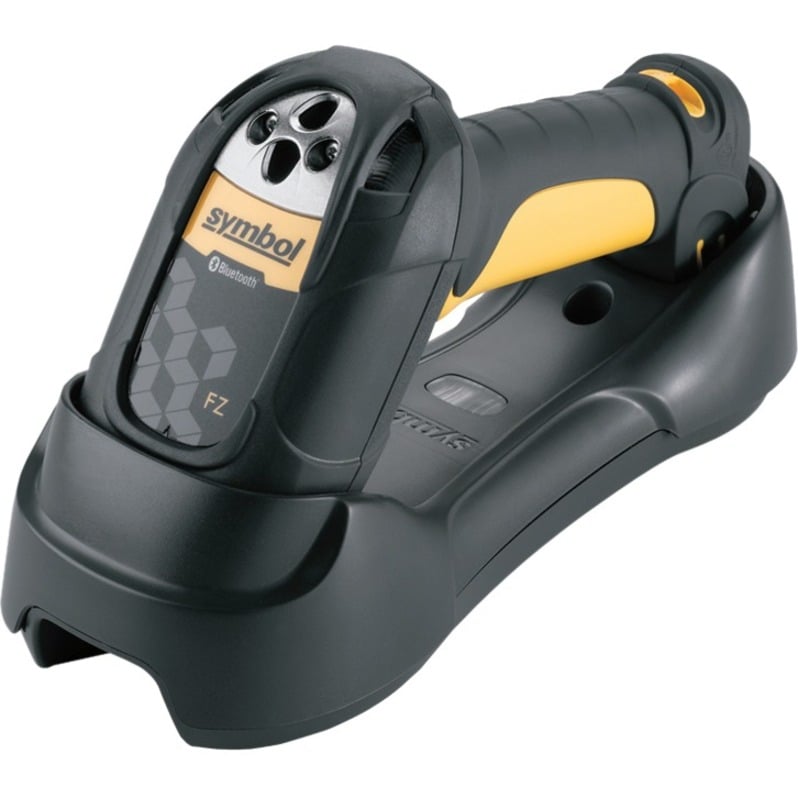

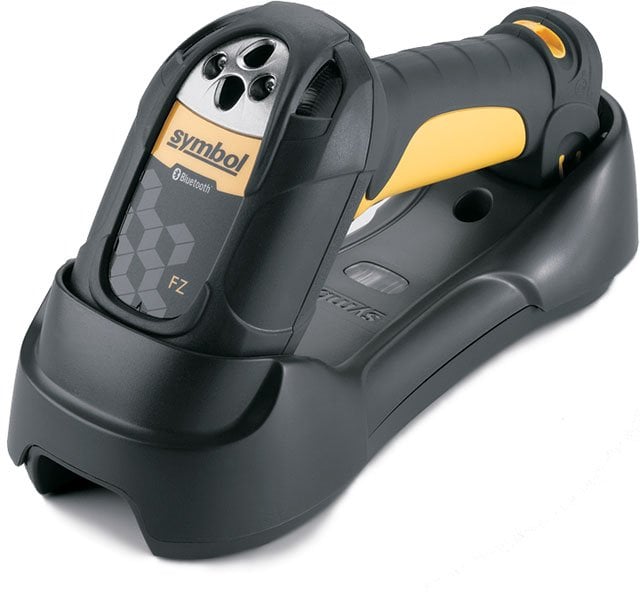

Symbol LS3578-FZ - RS-232 Kit, 1D Laser, Cordless, Fuzzy Logic. Includes Charging and Communications Cradle, RS-232 cable, Power supply, and Line Cord.
Fast, accurate industrial scanning of dirty, damaged or poorly printed barcodes

The Symbol LS3578-FZ Bluetooth-enabled cordless, rugged scanner captures all one-dimensional (1D) barcodes - even when dirty, damaged or poorly printed.

Technical Information

  • Barcode Dimension: 1D
  • Scan Rate: 36 scan/s
  • Connectivity Technology: Wireless
  • Scanning Distance: 147.64 ft
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS
    • RSS Variants
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS
    • RSS Variants
  • Maximum Scan Resolution: 5 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS3578-FZ
  • Product Name: Symbol LS3578-FZ Handheld Barode Scanner
  • Product Line: Symbol

Physical Characteristics

  • Color:
    • Black
    • Yellow
  • Weight (Approximate): 14.60 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Symbol LS3578-FZ Rugged Barcode Reader
    • Cradle
    • 7 ft. Straight RS-232 Cable
    • Universal Power Supply
    • US AC Line Cord
    • Symbol LS3578-FZ Rugged Barcode Reader
    • Cradle
    • 7 ft. Straight RS-232 Cable
    • Universal Power Supply
    • US AC Line Cord
  • Certifications & Standards:
    • IP65
    • RoHS Compliant
    • Radio EN 300 328
    • Input Transient Protection:
    • IEC 1000-4-2
    • IEC 1000-4-3
    • IEC 1000-4-4
    • IEC 1000-4-5
    • IEC 1000-4-6
    • IEC 1000-4-11
    • EMI/RFI:
    • EN 301 489-1
    • EN 301 489-17
    • IEC 60601-1-2
    • EN 55022, EN 55024
    • EN 61000-3-2
    • EN 61000-3-3
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Japan VCCI/MITI/Dentori
    • EN 301 489-1
    • EN 301 489-17
    • IEC 60601-1-2
    • EN 55022, EN 55024
    • EN 61000-3-2
    • EN 61000-3-3
    • Laser Safety:
    • IEC825-1 Class 2
    • EN 60825-1
    • IEC 60825-1
    • 21CFR1040.10
    • Electrical Safety:
    • UL 60950-1
    • C22.2 No. 60950-1
    • EN 60950-1
    • IEC 60950-1
    • RF Exposure:
    • EN 50360
    • EN 50361
    • FCC Part 2
    • OET Bulletin 65
    • RSS102
  • Additional Information:
    • Supported Interfaces:
    • SerialKeyboard WedgeIBM 468X/469XUSBSynapse

Power Description

  • Input Voltage: 14 V DC
  • Power Source: Battery

Warranty

  • Limited Warranty: 3 Year

Network & Communication

  • Bluetooth: Yes

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model LS3578-FZ
Connection RS-232 Serial
Connectivity Cordless
Scanner Type Laser
Communication Type Bluetooth
Form Factor Handheld
Scanner Capability 1D
Scan Pattern Single Line
Color Yellow
Communication Range more than 33 ft
Included Cables RS-232 Serial
Ruggedness Rugged
