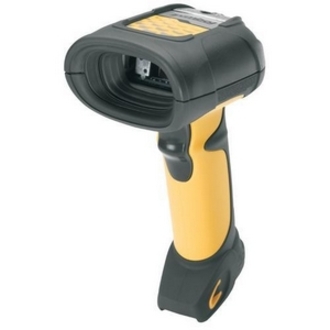

Symbol LS 3478 FZ – Barcode Scanner – 1D

Part Number: LS3478-FZBU0100U
Model: LS 3478 FZ
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Scanner with Radio/Charging Cradle, 7 Foot Straight USB Cable and US Power Supply.

Motorola LS3478 FZ Barcode Scanner Model Overview

Motorola's rugged LS3478 FZ cordless scanner provides fuzzy logic technology so you're able to rapidly and accurately read the often damaged, dirty and poorly printed one-dimensional (1D) barcodes found in your industrial environment. The LS3478 FZ features rugged construction, an IP 65 rated seal to keep out dust and water, and a comfortable hand grip that won't leave users tired. These features plus Motorola's dependable performance make the LS3478 FZ a perfect choice for any warehouse, industrial or stockroom application.
Symbol LS3478-FZBU0100U Barcode Scanner Overview

Symbol's rugged LS3478-FZ Bar Code Reader provides fuzzy logic technology so you are able to rapidly and accurately read the often damaged, dirty and poorly printed one-dimensional (1D) bar codes found in your industrial environment. In the yard, warehouse, distribution center, manufacturing plant or retail store, the LS3478-FZ Bar Code Reader offers superior performance and reliability, as well as a user-friendly form factor to help your employees comfortably operate the scanner even over eight-hour shifts.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN Supplementals
  • UCC/EAN 128
  • JAN-8
  • JAN-13
  • Code 39
  • Code 39 Full ASCII
  • Trioptic Code 39
  • Code 128
  • Code 128 Full ASCII
  • Codabar (NW7)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • Code 32
  • Bookland EAN
  • IATA
  • UCC/EAN
  • RSS Variants
  • RSS
Light Source:
Laser
Scan Rate:
36 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 2.5" - 7.25"@5mil
  • 2" - 15.75"@7.5mil
  • 1" - 24"@13mil - 100% UPC
  • 0" - 39.5"@20mil - 80% MRD
  • 0" - 26.5"@20mil - 31% MRD
  • 2" - 67"@40mil
  • 4" - 84"@55mil
Scanning Distance:
328.08 ft
Cable Type Included:
USB
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
14 V DC
Power Supply Included:
Yes
Physical Characteristics
Form Factor:
Handheld
Color:
  • Black
  • Yellow
Height:
7.3"
Width:
4.8"
Depth:
2.9"
Weight (Approximate):
14.60 oz
Miscellaneous
Package Contents:
  • LS3478-FZ Bar Code Reader
  • Radio/charging Cradle
  • 7ft straight USB Cable
  • Universal AC power supply
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • Wand Emulation
  • IBM 468X/469X
  • USB
  • Synapse

USB Cable separate

Certifications & Standards:
  • IEC 1000-4-(2,3,4,5,6,11)
  • EMI/RFI
  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Japan VCCI/MITI/Dentori

Laser:

  • IEC825-1 Class 2
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
