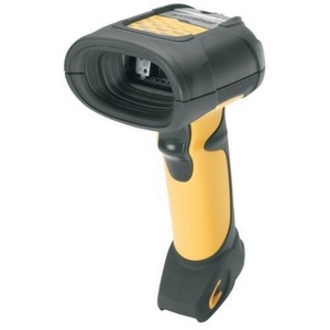

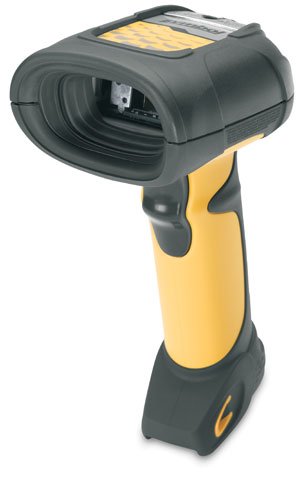

Motorola LS3478-FZBR0100U Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Symbol LS 3478 FZ - Scanner with Radio/Charging Cradle, 7 ft. Straight RS-232 Cable and US Power supply.
Wireless scanning of damaged barcodes

Symbol's rugged LS 3478 FZ cordless scanner provides fuzzy logic technology so you're able to rapidly and accurately read the often damaged, dirty and poorly printed one-dimensional (1D) barcodes found in your industrial environment. The LS 3478 FZ features rugged construction, an IP 65 rated seal to keep out dust and water, and a comfortable hand grip that won't leave users tired. These features plus Symbol's dependable performance make the LS 3478 FZ a perfect choice for any warehouse, industrial or stockroom application.

Technical Information

  • Barcode Dimension: 1D
  • Scan Rate: 36 scan/s
  • Connectivity Technology: Wireless
  • Scanning Distance: 328.08 ft
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN
    • RSS Variants
    • RSS
    • UPC/EAN
    • UPC/EAN Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN
    • RSS Variants
    • RSS
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 2.50" - 7.25"@5 mil
    • 2" - 15.75"@7.50 mil
    • 1" - 24"@13 mil - 100% UPC
    • 0 mil - 39.50"@20 mil - 80% MRD
    • 0 mil - 26.50"@20 mil - 31% MRD
    • 2" - 67"@40 mil
    • 4" - 84"@55 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS3478-FZ
  • Product Name: Symbol LS3478-FZ Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Color:
    • Black
    • Yellow
  • Weight (Approximate): 14.60 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • LS3478-FZ Barcode Reader
    • Radio/charging Cradle
    • 7ft straight RS-232 Cable
    • Universal AC power supply
    • LS3478-FZ Barcode Reader
    • Radio/charging Cradle
    • 7ft straight RS-232 Cable
    • Universal AC power supply
  • Certifications & Standards:
    • IEC 1000-4-(2,3,4,5,6,11)
    • EMI/RFI
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Japan VCCI/MITI/Dentori
    • Laser:
    • IEC825-1 Class 2
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • Keyboard Wedge
    • Wand Emulation
    • IBM 468X/469X
    • USB
    • Synapse

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 14 V DC

Full specifications (PDF)



Customer Review Summary

Recommended Accessories for Model: Symbol LS 3478 FZ Scanner

The Symbol LS3478-FZBR0100U is also known as Symbol Technologies SYM-LS3478FZBR0100U or LS3478FZBR0100U .
