Symbol LS 3478 ER – Barcode Scanner – 1D

Part Number: LS3478-ERBU0100UR
Model: LS 3478 ER
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Scanner with Radio/Charging Cradle, 7 Foot Straight USB Cable and US Power Supply. RoHS Compliant.
Explore all Symbol LS 3478 ER Barcode Scanners
Add to Quote

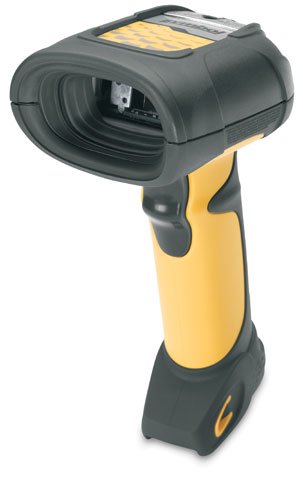

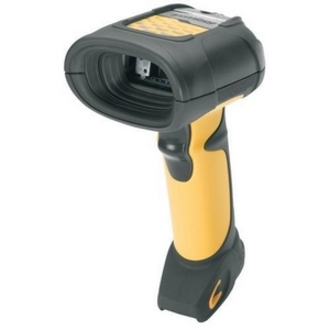

Symbol LS3478-ERBU0100UR Barcode Scanner
Symbol LS3478-ERBU0100UR Barcode Scanner
Symbol LS3478-ERBU0100UR Barcode Scanner
Symbol LS3478-ERBU0100UR Barcode Scanner Symbol LS3478-ERBU0100UR Barcode Scanner Symbol LS3478-ERBU0100UR Barcode Scanner
Full specifications (PDF)

Symbol LS 3478 ER Barcode Scanner Model Overview

Symbol's rugged LS 3478 ER cordless scanner provides extended read range technology so you're able to rapidly and accurately read all one-dimensional (1D) barcodes found in your industrial environment fro a distance of up to 45 feet. The LS 3478 ER features rugged construction, an IP 65 rated seal to keep out dust and water, and a comfortable hand grip that won't leave users tired. These features plus Symbol's dependable performance make the LS 3478 ER a perfect choice for any warehouse, industrial or stockroom application.
Symbol LS3478-ERBU0100UR Barcode Scanner Overview

The LS3478-ER cordless rugged scanner scans all one-dimensional (1D) bar codes from practically anywhere, making it ideal for a warehouse or manufacturing facility. With the rugged cordless LS3478-ER scanner, you get the greatest working range of any available rugged scanner. You'll speed processes by allowing your employees to scan items on pallets as close as 4 inches (10 centimeters) away and shelves as far away as 45 feet (13.7 meters).

In addition, your employees will be able to quickly switch from reading bar codes on inventory to capturing smaller symbologies on bar code menus and pick lists. In the yard, warehouse, distribution center, manufacturing plant or retail store, these cordless handheld devices offer superior performance and reliability as well as a user-friendly form factor to help your employees comfortably operate the scanner even over eight-hour shifts.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN with Supplementals
  • UCC/EAN 128
  • JAN-8
  • JAN-13
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128 Full ASCII
  • Codabar (NW7)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • Code 32
  • Bookland EAN
  • IATA
  • UCC/EAN RSS Variants
  • RSS Variants
  • Code 128
Light Source:
Laser
Scan Rate:
36 scan/s
Maximum Scan Resolution:
7.50 mil
Depth of Field:
  • 0.25" - 20"@7.5mil
  • 2" - 32"@10mil
  • 3" - 69"@15mil
  • 3" - 94"@20mil
  • 15" - 180"@55mil
  • 0" - 365"@70mil
  • 0" - 540"@100mil
Scanning Distance:
328.08 ft
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Power Supply Included:
Yes
Physical Characteristics
Color:
  • Yellow
  • Black
Height:
7.3"
Width:
4.8"
Depth:
2.9"
Weight (Approximate):
14.80 oz
Miscellaneous
Package Contents:
  • Symbol LS3478-ER Bar Code Reader
  • Cradle
  • Power Supply
  • 7ft. USB Straight Cable
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • Wand Emulation
  • IBM 468X/469X
  • USB
  • Synapse

    • Certifications & Standards:
    • RoHS Compliant

    Input Transient Protection:

    • IEC 1000-4-(2,3,4,5,6,11)

    EMI/RFI:

    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Japan VCCI/MITI/Dentori

    Laser Safety:

    • IEC825-1 Class 2
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    UNSPSC: 43211701
