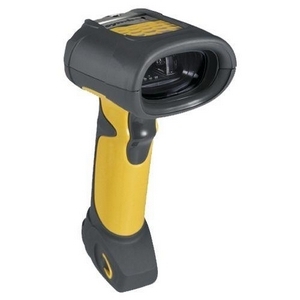

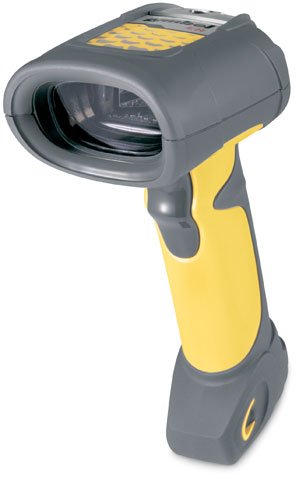

Symbol LS3408FZ, LS3408 Series – Barcode Scanner – Corded – 1D

Part Number: LS3408-FZAR0200AR
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Interface Options
Serial
Scanner Capability
1D

Product Description:

  RS-232 Serial Kit, 1D Laser, Fuzzy Logic. Includes Scanner, 9' coiled RS-232 Cable, Power Supply and Quick Reference Guide.

Motorola LS3408-FZ Barcode Scanner Model Overview

The rugged LS3408FZ, LS3408 Series handheld scanner from Motorola delivers superior fuzzy logic performance and versatility for scan-intensive industrial applications. In the yard, warehouse, distribution center, manufacturing or retail store, the LS3408FZ, LS3408 Series offers best-in- performance, excellent reliability and user-friendly ergonomics more productive mobile environment. Multiple interfaces ensure flexible plug and play host connectivity. These rugged LS3408FZ, LS3408 Series scanners have a 6.5ft drop rating and are sealed to IP65 against rain and dust. The LS3408FZ, LS3408 Series delivers the best possible performance on damaged and poorly printed barcodes.
Symbol LS3408-FZAR0200AR Barcode Scanner Overview

The rugged LS3408-FZ handheld reader from Symbol Technologies, the Enterprise Mobility Company, features fuzzy logic technology for fast and accurate reading of damaged, dirty and poorly printed one-dimensional (1D) bar codes typically found in industrial environments. In the yard, warehouse, distribution center, manufacturing plant or retail store, the LS3408-FZ handheld scanner offers superior performance, reliability and user-friendly ergonomics to improve productivity.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN Supplementals
  • UCC/EAN 128
  • JAN-8
  • JAN-13
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar (NW7)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • MSI
  • Code 11
  • Code 32
  • Bookland EAN
  • IATA
  • UCC/EAN RSS
  • RSS Variants
  • Code 93
Light Source:
Laser
Scan Rate:
36 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 2.5" - 7.25"@5mil
  • 2" - 15.75"@7.5mil
  • 1" - 24"@13mil - 100% UPC
  • 0" - 39.5"@20mil - 80% MRD
  • 0" - 26.5"@20mil - 31% MRD
  • 2" - 67"@40mil
  • 4" - 84"@55mil
Cable Type Included:
Serial
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
14 V DC
Power Supply Included:
Yes
Physical Characteristics
Color:
  • Yellow
  • Twilight Black
Height:
7.3"
Width:
4.8"
Depth:
2.9"
Weight (Approximate):
12.35 oz
Miscellaneous
Package Contents:
  • LS3408-FZ Bar Code Reader
  • 9ft Coiled RS232 cableA
  • Power Supply
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • Wand Emulation
  • IBM 468X/469X
  • USB

USB Cable separate

Certifications & Standards:
  • RoHS Compliant

Input Transient Protection:

  • IEC 1000-4-2
  • IEC 1000-4-3
  • IEC 1000-4-4
  • IEC 1000-4-5
  • IEC 1000-4-6
  • IEC 1000-4-11

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Japan VCCI/MITI/Dentori

Laser Safety:

  • IEC825-1 Class 2
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0024606506162, 0133588112220, 0783555040294
UPC: 024606506162, 133588112220, 783555040294
EAN: 0024606506162, 0133588112220, 0783555040294
UNSPSC: 43211701
