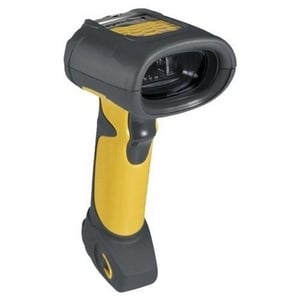

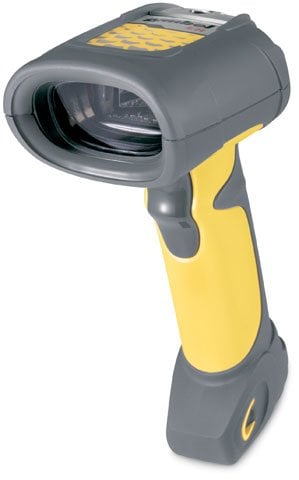

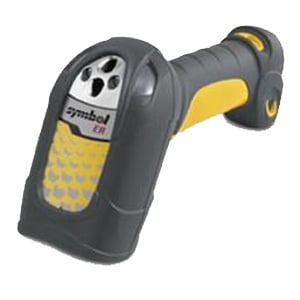

Motorola LS3408-FZAK0200ZR Barcode Scanner

Symbol LS 3408FZ - PS/2 Kit, 1D Laser, Fuzzy Logic. Includes Scanner, 9' coiled PS/2 Cable, Power supply and Quick Reference Guide.
  • Minimizes your manual entry and provides reliable scanning in a durable form factor
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Scan barcodes with a staggering speed of 36 scan/s
Read More

Full specifications (PDF)

Fuzzy Logic-Equipped Rugged Scanner for Industrial Applications
The rugged LS3408FZ, LS3408 Series handheld scanner from Symbol delivers superior fuzzy logic performance and versatility for scan-intensive industrial applications. In the yard, warehouse, distribution center, manufacturing or retail store, the LS3408FZ, LS3408 Series offers best-in- performance, excellent reliability and user-friendly ergonomics more productive mobile environment. Multiple interfaces ensure flexible plug and play host connectivity. These rugged LS3408FZ, LS3408 Series scanners have a 6.5 ft. drop rating and are sealed to IP65 against rain and dust. The LS3408FZ, LS3408 Series delivers the best possible performance on damaged and poorly printed barcodes.
Symbol LS3408-FZAK0200ZR Overview

LS3408-FZ Barcode Scanner features fuzzy logic technology for fast and accurate reading of damaged, dirty and poorly printed one-dimensional (1D) bar codes typically found in industrial environments. In the yard, warehouse, distribution center, manufacturing plant or retail store, the LS3408-FZ Barcode Scanner offers superior performance, reliability and user-friendly ergonomics to improve productivity. Multiple on-board interfaces ensure flexible plug and play host connectivity.

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN with Supplementals
  • JAN-8
  • JAN-13
  • UCC-128
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar (NW7)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • Code 32
  • Bookland EAN
  • IATA
  • UCC/EAN RSS
  • RSS Variants
Light Source:
Laser
Scan Rate:
36 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 2.5" - 7.25"@5mil
  • 2" - 15.75"@7.5mil
  • 1" - 24"@13mil - 100% UPC
  • 0" - 39.5"@20mil - 80% MRD
  • 0" - 26.5"@20mil - 31% MRD
  • 2" - 67"@40mil
  • 4" - 84"@55mil
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
14 V DC
Physical Characteristics
Height:
7.3"
Width:
4.8"
Depth:
2.9"
Weight (Approximate):
12.35 oz
Miscellaneous
Package Contents:
  • Symbol LS3408-FZ Bar Code Reader
  • 9ft Coiled Keyboard Wedge Cable
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • Wand Emulation
  • IBM 468X/469X
  • USB

USB Cable separate

Certifications & Standards:

Input Transient Protection:

  • IEC 1000-4-(2,3,4,5,6,11)

Laser Safety:

  • IEC825-1 Class 2

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union
  • EMC Directive
  • Japan VCCI/MITI/Dentori
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0886201450772, 5052461126107
UPC: 886201450772
EAN: 0886201450772, 5052461126107
UNSPSC: 43211701

Recommended Accessories for Model: Symbol LS3408FZ, LS3408 Series Barcode Scanner

Category

  • Power Systems & Supplies (2)
  • Cables, Connectors, and Adapters (21)
  • Accessories (42)
  • Mounting Hardware & Stands (4)
Recommended Accessories for Model: Symbol LS3408FZ, LS3408 Series Barcode Scanner

Power Systems & Supplies

Motorola (23844-00-00R)
US AC Line Cord, Grounded, 7.5', Three wire for power supplies.
In Stock: Ships Same Day
$17.38
+ Add to Quote
Zebra (PWR-WUA5V4W0US)
Power supply, AC INPUT: 100-240V, 0.2A DC OUTPUT: 5.2V, 1.1A, 5.7W for barcode scanner. Includes line cord.
In Stock: Ships Same Day
$39.04
Why don't we show the price?

Cables, Connectors, and Adapters

Symbol Cable (CBA-K02-C09PAR)
Keyboard wedge, PS/2, Power Port, 9 ft, Coiled
In Stock: Ships Same Day
$33.76
Why don't we show the price?

Motorola Cable (CBA-U01-S07ZAR)
Zebra USB Cable - USB: Series A Connector, 7 ft. 2m Straight
In Stock: Ships Same Day
$33.76
Why don't we show the price?

Symbol Cable (CBA-U03-S07ZAR)
USB, Power Plus connector, 7 ft, Straight.
In Stock: Ships Same Day
$44.31
Why don't we show the price?

Symbol Cable (CBA-U10-S15ZAR)
USB Series A connector, 15 ft, Straight
In Stock: Ships Same Day
$55.92
Why don't we show the price?

Symbol Cable (CBA-R32-S07PAR)
7 feet, Straight, RS-232, TRU TTL DB-9F
In Stock: Ships Same Day
$61.19
Why don't we show the price?

Symbol Cable (CBA-R03-C12PAR)
RS-232, 12 feet, Standard DB-9F, TxD on 2, Coiled
In Stock: Ships Same Day
$60.14
Why don't we show the price?

Motorola Cable (CBA-M01-S07ZAR)
(7 feet, Straight, Ibm 468x/9x-Port 9b)
In Stock: Ships Same Day
$71.74
Why don't we show the price?

Symbol Cable (CBA-U09-C15ZAR)
15', Coiled, standard USB cable, Series A.
In Stock: Ships Same Day
$107.61
Why don't we show the price?

Symbol Cable (CBA-K08-C20PAR)
(20 feet, Keyboard wedge, PS/2, PW).
In Stock: Ships Same Day
$99.17
Why don't we show the price?

Symbol Cable (25-71918-01R)
Assembly, 9 ft, Extended, Coiled. Connects LS34XX to the VC5090. Non-standard USB, call for more information.
In Stock: Ships Same Day
$178.30
Why don't we show the price?

Symbol (25-71917-03R)
RS-232 coiled cable, 9'. For use with VC5000/LS3408.
In Stock: Ships Same Day
$248.98
Why don't we show the price?

Symbol Cable (CBA-K01-S07PAR)
7 ft. straight PS/2 Keyboard wedge cable.
Ships in 3-5 Days
$24.27
+ Add to Quote
Symbol (CBA-S01-S07ZAR)
Synapse Adapter Cable, 7 ft. From scanner to synapse. (Must be used in conjunction with Synapse SmartCable. Please call for details.) RoHS.
Symbol Cable (CBA-R02-C09PAR)
Assembly (9 feet, Coiled, RS-232, STD-DB9 Female, TXD on 2). Required power supply not included, see (Part# PWRS-14000-253R).
Ships in 3-5 Days
$39.04
Why don't we show the price?

Symbol Cable (CBA-M04-S07ZAR)
7 feet, Straight, IBM 468X/9X-Port 5B
Ships in 3-5 Days
$49.59
Why don't we show the price?

Symbol Cable (CBA-U15-S15ZAR)
15' PoweredUSB cable, Straight, Call to purchase.
Ships in 3-5 Days
$60.14
Why don't we show the price?

Symbol Cable (CBA-K06-C12PAR)
12 feet, Keyboard wedge, PS/2, Power Port and Coiled
Symbol Cable (CBA-U06-S09EAR)
USB EAS, Series A Connection, 9 ft, Straight
Ships in 3-5 Days
$71.74
Why don't we show the price?

Symbol Cable (CBA-M02-C09ZAR)
9 feet, Coiled, IBM 468X/9X-Port 9B
Ships in 3-5 Days
$93.90
Why don't we show the price?

Symbol Cable (CBA-U08-C15ZAR)
PoweredUSB connector, 15 ft, Coiled Call to purchase.
Ships in 3-5 Days
$104.45
Why don't we show the price?

Symbol Cable (CBA-T13-C09ZAR)
(9 feet, Coiled, RS-232) for the VRC 7900/8900.

Accessories

Taylor Made Cases (TM-B3408)
Symbol/Motorola 3408 head cover with one D-ring
Ships in 3-5 Days
$26.32
+ Add to Quote
Symbol Cable (CBA-D02-C09ZAR)
Standard Undecoded, 9 ft, Coiled
Symbol Cable (CBA-K05-S15PAR)
Keyboard wedge, PS/2, 15 ft, Straight
Motorola Cable (CBA-R37-C09ZAR)
- RS-232: DB-9 Female CON. 9 ft. (2.8m) Coiled, POWER PIN
Symbol Cable (CBA-R06-C20PAR)
Universal Style 3, RS-232, 20 ft, Coiled, Gray
Symbol (50-14000-008R)
110 VAC US Power supply.
Symbol (50-14000-008)
110 VAC US Power supply
Symbol (25-67510-21)
Cable Accessory: Univ, USB, 7Ft Straight, Ls3408
Symbol (25-66720-21)
Cable Accessory: Univ, Kyb Wedge, PS/2, 9Ft Coiled, Ls3408
Symbol (25-66773-21)
Cable Accessory: Univ, Kyb Wedge, PS/2, 20Ft Coiled, Ls3408
Symbol (25-66732-21)
Cable Accessory: Univ, RS-232, 9 Ft, Coiled, DB-9, Ls3408
Symbol (25-66772-21)
Cable Accessory: Univ, RS-232, 20Ft Coiled, DB-9, Ls3408
Symbol (CBA-T14-C09ZA)
Cable Accessory: Univ, Undecoded Scanner Emulation, 9Ft Coiled, Ls3408 To Vrc6900
Symbol (25-66864-21)
Cable Accessory: Univ, RS-232, 9Ft Coiled, Ls3408 To Vrc7900/8900
Symbol (25-67512-21)
Cable Accessory: Univ, Synapse Adapter Cable, 9 Ft, Coiled, DB-9, Ls3408
Symbol (20-54090-07)
Stand Assembly (Twilight Black) for the LS 34XX
Symbol (50-14000-058)
100-230 VAC Power supply Universal
Symbol (50-14000-010R)
100 VAC Asia-Pacific Power supply.
Symbol (50-14000-010)
100 VAC Asia-Pacific Power supply
Symbol (25-53494-20)
Straight Cable (6 feet, USB with EAS, Series A Connection)
Symbol (25-68069-01)
Cable Accessory: Univ, Undecoded Scanner Emulation, 9Ft Coiled, Ls3408 To Vrc6900
Symbol (11-35035-01)
Scanner Holster With Belt Clip
Symbol Cable (CBA-K02-C09PA)
(9 feet, Keyboard wedge PS/2, Power Port Coiled)
Symbol Cable (CBA-T13-C09ZA)
(9 feet, Coiled, RS-232) for the VRC 7900/8900
Symbol Cable (CBA-R06-C20PA)
Assembly (20 Foot, Coiled, Universal Style 3, RS-232, Gray)
Symbol (SBCC00030)
Cable Assembly for the LS3408, 2 Connector
Symbol (20-88462-01R)
Stand Assembly (Twilight Black) for the LS34XX
Symbol (50-14000-253R)
Power supply (90V 264 VAC, 5.0VDC, 0.850A)
Symbol Cable (CBA-U01-S07ZA)
(7 feet, Univ. Style 3, USB and DURA Gray)
Symbol (KT-14001-001R)
Power supply Kit (100 250 VAC 5.2VDC, 1A).
Motorola (50-14000-058R)
Power supply (100-250 VAC, 5v, 2a)
Symbol Cable (CBA-W01-S07ZAR)
7 feet straight cable, Wand
Motorola (PWRS-14000-257R)
PWR SPLY: 5VDC, 850MA, CHINA
Symbol (12-44267-01R)
Desk/Wall Mount, Multi-Pos For Ls34Xx, Ls35Xx, Ds34Xx, And Ds35Xx, Nc/Nr
Symbol (50-14000-009)
220 VAC Euro Power supply.
Symbol (50-14000-009R)
220 V Power supply. Requires Line Cord.
Symbol Cable (CBA-R46-C09ZAR)
RS-232 cable, 9', coiled, True Converter, DB-9 Female, Power Pin 9, TXD Pin 2.
Motorola (PWRS-14000-256R)
Power supply, 5VDC, 850MA, For Use in EU, UK, EMEA, RU, and ZA.
Symbol Cable (25-71917-02R)
RS-232 coiled cable, 9'. For use with VC5000/LS3408.
Symbol Cable (CBA-S04-C16ZAR)
Synapse Adapter Cable, 16 ft, Coiled
Motorola Cable (CBA-R01-S07PAR)
RS-232 Cable (7 ft. Straight, Standard DB-9F TxD-2). Requires Power supply (Part# PWR-WUA5V4W0US).
Motorola Accessories (PWRS-14000-253R)
Power supply, 5VDC/850ma (For Use in US, Ca, Mx, Br, Jp, Tw). Includes line cord. Power supply for the Motorola LI4278 barcode scanner.

Mounting Hardware & Stands

Symbol (11-66553-06R)
Wall mount bracket for several Motorola DS and LS barcode scanners. Color: Gray.
In Stock: Ships Same Day
$39.04
Why don't we show the price?

Symbol (20-54090-07R)
Twlight black stand assembly for LS34xx
In Stock: Ships Same Day
$123.44
Why don't we show the price?

Symbol (21-52612-01R)
Rugged scanner holder (can be mounted on forklift)
In Stock: Ships Same Day
$148.76
Why don't we show the price?

Symbol (50-15400-031)
Tool Balancer: Pulley 10' Cable
In Stock: Ships Same Day
$169.86
Why don't we show the price?

The Symbol LS3408-FZAK0200ZR is also known as Symbol Technologies SYM-LS3408FZAK0200ZR or LS3408FZAK0200ZR .
