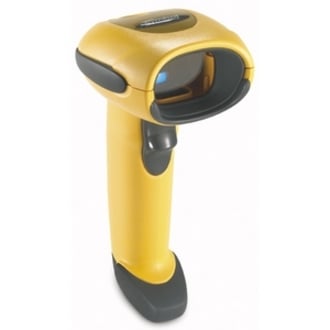

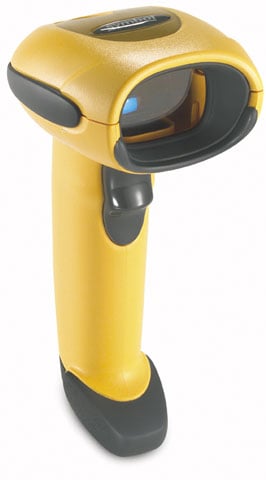

Motorola LS3008-SR20005ZZR Barcode Scanner


4.0

(1 reviews)

Symbol LS3008 - SCANNER ONLY, 1D Laser. Cables must be purchased separately. See accessories.
Rugged, affordable performance and durability.

The Symbol LS3008 rugged handheld scanner offers affordable performance and durability in smaller manufacturing and light industrial environments. The LS3008 features single board construction, eliminating the common points of failure associated with ribbon cables that connect multiple boards. The patented Liquid Polymer Scan Technology is frictionless and will not wear out. The LS3008 scanner is built to withstand everyday drops, offers a scratch-resistant, tempered glass exit window for high-quality scanning day in and day out, and can be safely used in dusty environments. In addition, the Symbol LS3008 offers the sealing required to endure wipe downs, and can even be sanitized in clean manufacturing and hospital environments.

Technical Information

  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN with Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW1)
    • Code 93
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • Code ll
    • IATA
    • Bookland EAN
    • Code 32
    • UPC/EAN with Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW1)
    • Code 93
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • Code ll
    • IATA
    • Bookland EAN
    • Code 32
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 0 mil - 19"@13 mil - 100% UPC/EAN
    • 1.25" - 5.25"@5 mil - Code 39

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS3008
  • Product Name: Symbol LS3008 Barcode Reader
  • Product Line: Symbol
  • Package Type: Retail

Physical Characteristics

  • Height: 6.7"
  • Width: 2.7"
  • Depth: 3.7"
  • Color:
    • Yellow
    • Black
  • Weight (Approximate): 6.40 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • LS3008 Hand Held Barcode Reader
    • Quick Start Guide
    • LS3008 Hand Held Barcode Reader
    • Quick Start Guide
  • Certifications & Standards:
    • Electrical Safety:
    • UL 1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • Laser Safety:
    • IEC Class 2
    • CDRH Class II
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • IBM 468X/469X
    • Keyboard Wedge
    • USB
    • Laser Emulation
    • Wand Emulation
    • Synapse

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 5.5 V DC

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model LS3008
Scanner Capability 1D
Connectivity Corded
Scanner Type Laser
Form Factor Handheld
Connection USB
Scan Pattern Single Line
Color Yellow
Included Cables Scanner Only - No Cable
Ruggedness Rugged
